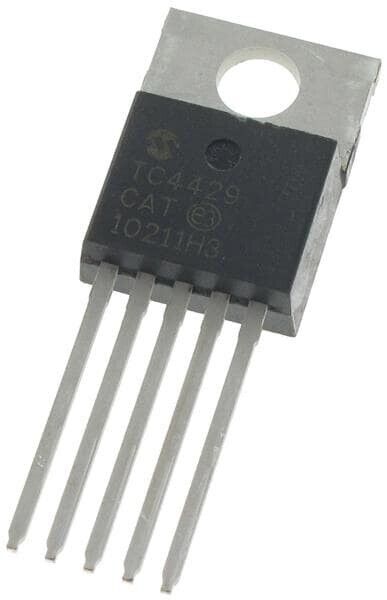

TC4429 FET Driver 55nS On/55nS Off 1 outputs 6A Inverting TO-220-5
1 in stock
1 in stock
TC4429 FET Driver 6A TO-220-5
Discover the TC4429 FET Driver, a high-performance solution designed for electrical engineers seeking efficiency and reliability. With rapid switching capabilities and robust output, this component is perfect for demanding applications.
- Voltage Rating: Up to 18V
- Current Output: 6A Continuous
- Package Type: TO-220-5
- Switching Speed: 55nS On/Off
- Application: Ideal for Motor Drives and Power Management
Unlock the potential of your projects by integrating the TC4429 FET Driver today—engineered for ultimate power control and efficiency.
Shipping, returns, and payments
TC4429 FET Driver 55nS On/55nS Off 1 outputs 6A Inverting TO-220-5 | US Ship
Product Details:
Enhance your power management solutions with the TC4429 FET Driver, expertly crafted to deliver precise control for high-speed switching applications. This efficient driver offers optimal inverting capabilities to manage various power devices, ensuring robust performance even in demanding environments.
Specifications:
- ✅ Output Channels: 1
- ✅ On/Off Times: 55nS On / 55nS Off
- ✅ Maximum Current: 6A
- ✅ Package Type: TO-220-5
- ✅ Configuration: Inverting
- ✅ Application: High-speed switching, motor drives, power MOSFETs, IGBTs
Features & Benefits:
- ✔️ High efficiency with rapid switching capabilities
- ✔️ Compact TO-220-5 package for effective thermal management
- ✔️ Suitable for a wide range of power applications
- ✔️ Reliable performance with high current drive
- ✔️ Perfect for electrical engineering projects requiring precise switching
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Input Threshold Voltage | 1.4V |
| Polarity | Inverting |
| Reverse Voltage | 18V |
| Pin Count | 5 |
| Logic Compatibility | TTL, CMOS |
| Quiescent Current | 2.5mA |
| Output Resistance | 3.5Ω |
| Turn Off Delay Time | 30nS |
| Turn On Delay Time | 30nS |
| Output Fall Time | 25nS |
| Output Rise Time | 25nS |
| Supply Current | 6mA |
| Output Voltage Swing | 10V |
| Operating Temperature Max | +85°C |
| Part Number | TC4429 |
| Operating Temperature Min | -40°C |
| Propagation Delay | 55nS |
| Input Capacitance | 20pF |
| Supply Voltage Max | 18V |
| Supply Voltage Min | 4.5V |
| Application | Inverting Switching Regulator |
| Vendor | Microchip Technology |
| Package Type | TO-220-5 |
| Configuration | Inverting |
| Output Current | 6A |
| Output Count | 1 |
| Fall Time | 55nS |
| Rise Time | 55nS |
| Type | FET Driver |
