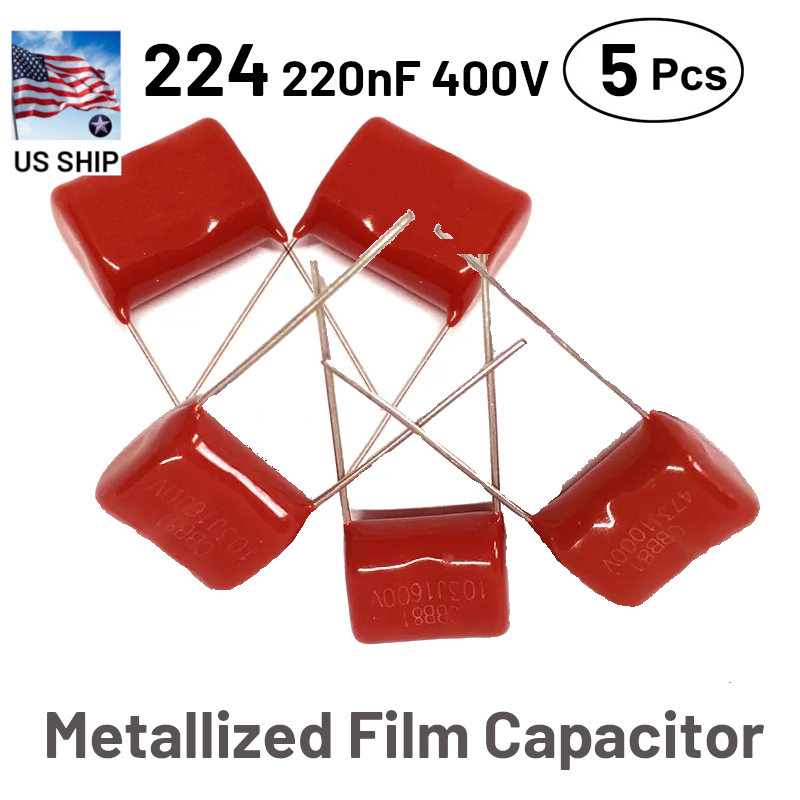

5x 224 220nF 400V 15mm Metallized Polypropylene Film Capacitor
Out of stock
Out of stock
5pcs 224 220nF 400V Cap Kit
Enhance your circuit designs with our high-performance 220nF Metallized Polypropylene Film Capacitors. Perfect for demanding applications requiring reliable voltage handling and precision.
- Rated Voltage: 400V
- Capacity: 220nF
- Lead Spacing: 15mm
- High Efficiency: Low ESR
- Ideal for Filtering and Noise Reduction
Upgrade your project with these dependable capacitors designed for excellence in power electronics and high-frequency circuits. Order now!
Shipping, returns, and payments

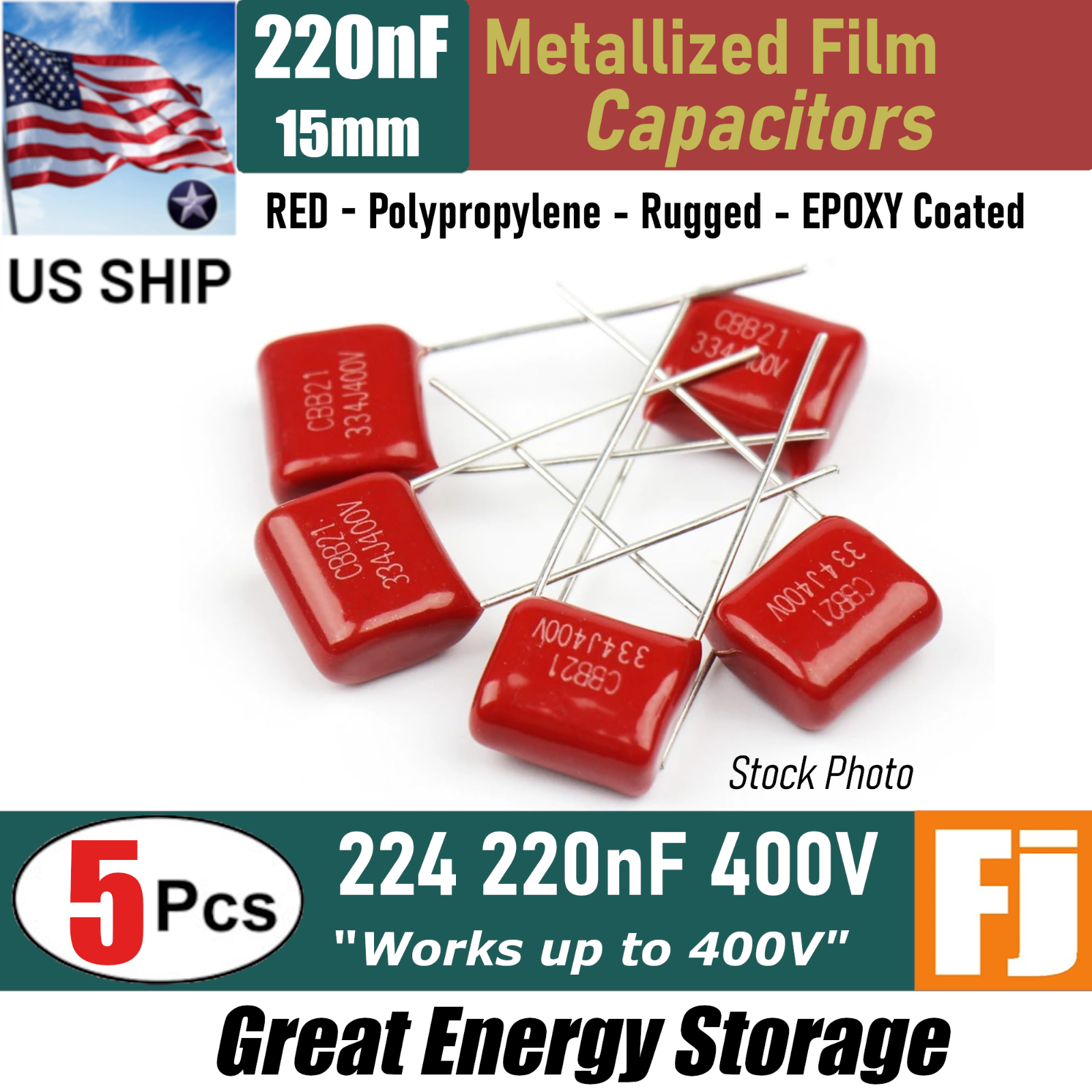

5pcs 224 220nF 400V 15mm Metallized Polypropylene Film Capacitor | US Ship
Product Details:
Enhance your electrical circuits with these premium metallized polypropylene film capacitors. Designed for high voltage applications, these capacitors offer excellent stability and reliability, ensuring optimal performance in demanding environments. Perfect for use in power supply circuits, they provide efficient energy storage and low dielectric losses.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Capacitance: 220nF
- ✅ Voltage Rating: 400V
- ✅ Lead Spacing: 15mm

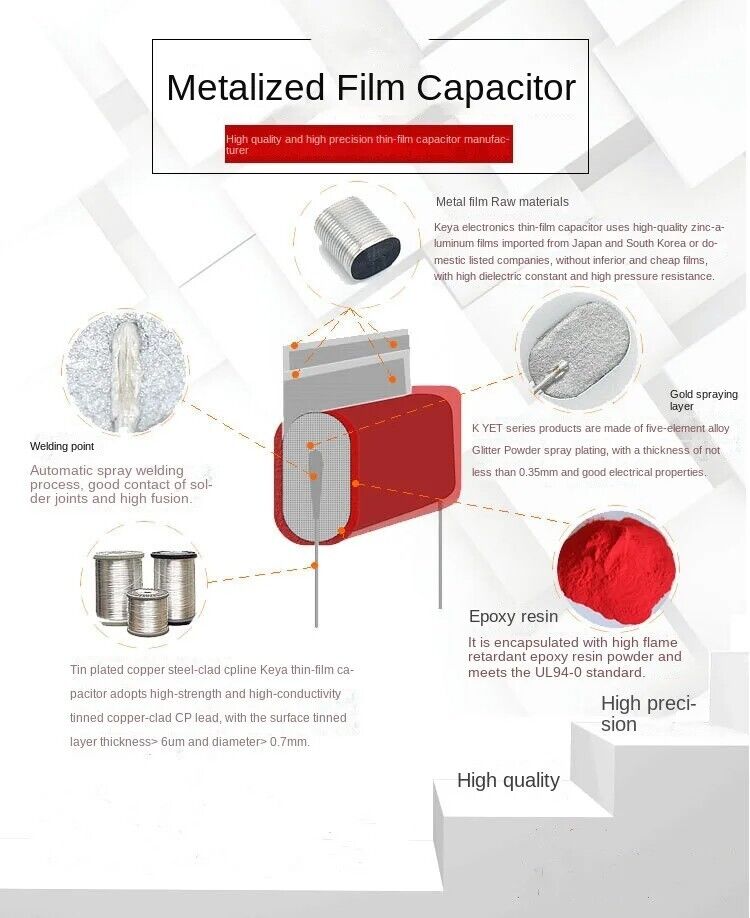

- ✅ Type: Metallized Polypropylene Film Capacitor
- ✅ Temperature Range: -55°C to +105°C
- ✅ Application: Suitable for high-frequency, high-voltage circuits, and precision filtering
Features & Benefits:
- ✔️ High dielectric strength for increased safety
- ✔️ Low dissipation factor for reduced power losses
- ✔️ Stable capacitance over time and temperature variations
- ✔️ Ideal for power supplies, switch-mode power supplies, and snubber circuits
- ✔️ Compact 15mm lead spacing for easy PCB integration
- ✔️ Shipped reliably from US stock
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Generic |
|---|---|
| Ripple Current | High |
| Temperature Coefficient | ±200 ppm/°C |
| Quantity Per Pack | 5pcs |
| Weight | 2g |
| RoHS Compliant | Yes |
| Applications | Snubber, Filter, Coupling, Timing |
| Self-Healing Property | Yes |
| Flame Retardant Coating | UL94 V-0 |
| Mounting Style | Through Hole |
| Product Dimensions | 14.5mm x 15mm x 6mm |
| Lifespan | Long |
| ESL (Equivalent Series Inductance) | Low |
| Part Number | 224 220nF 400V |
| ESR (Equivalent Series Resistance) | Low |
| Insulation Resistance | ≥10,000MΩ at 25°C, 1 minute |
| Dissipation Factor | ≤0.001 at 1kHz |
| Operating Temperature Range | -40°C to +105°C |
| Lead Length | 30mm |
| Tolerance | ±10% |
| Lead Diameter | 0.6mm |
| Lead Pitch | 15mm |
| Package Type | Radial |
| Dielectric | Polypropylene |
| Capacitor Type | Metallized Polypropylene Film |
| Rated Voltage | 400V |
| Capacitance | 220nF |
| Dielectric Absorption | 0.1% |
