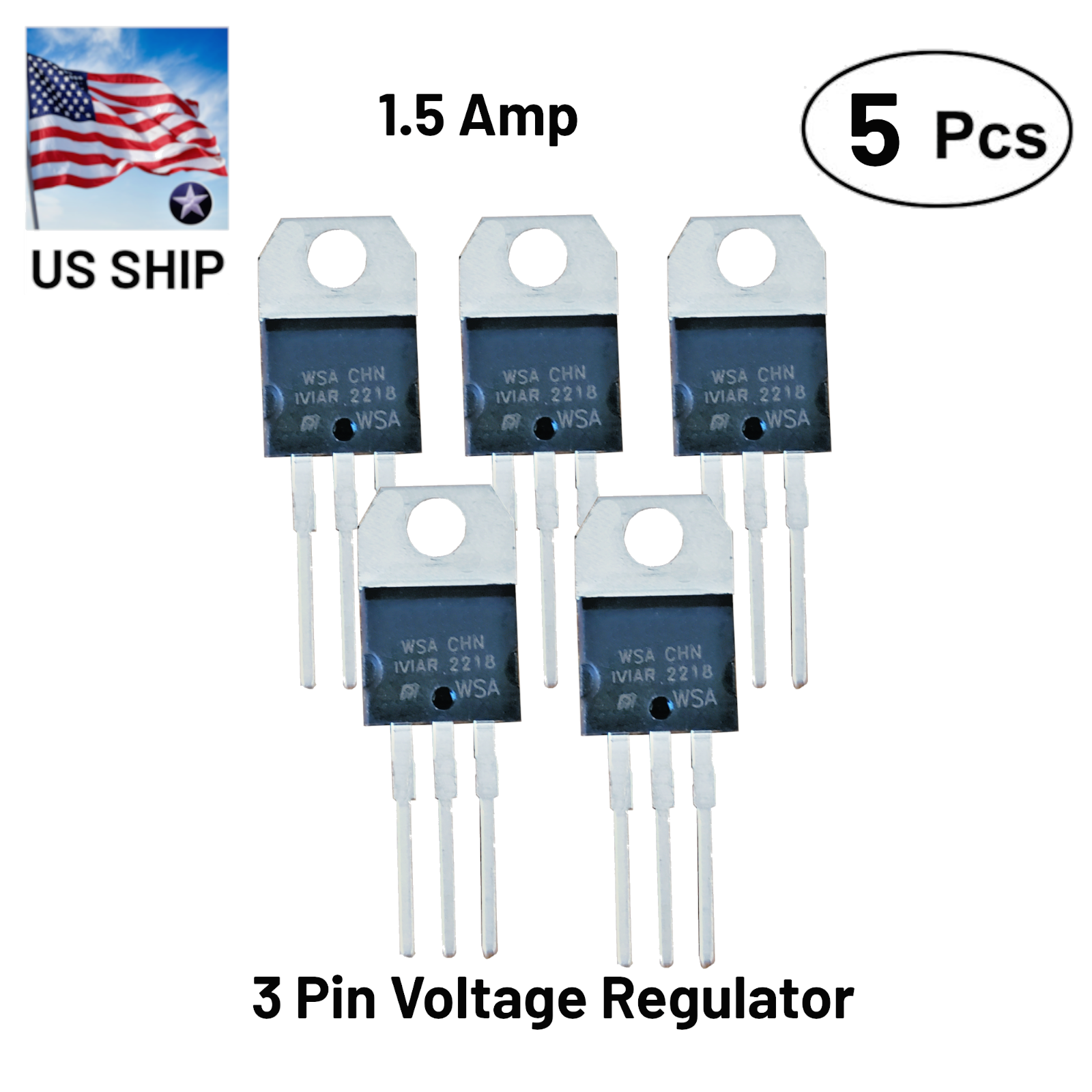

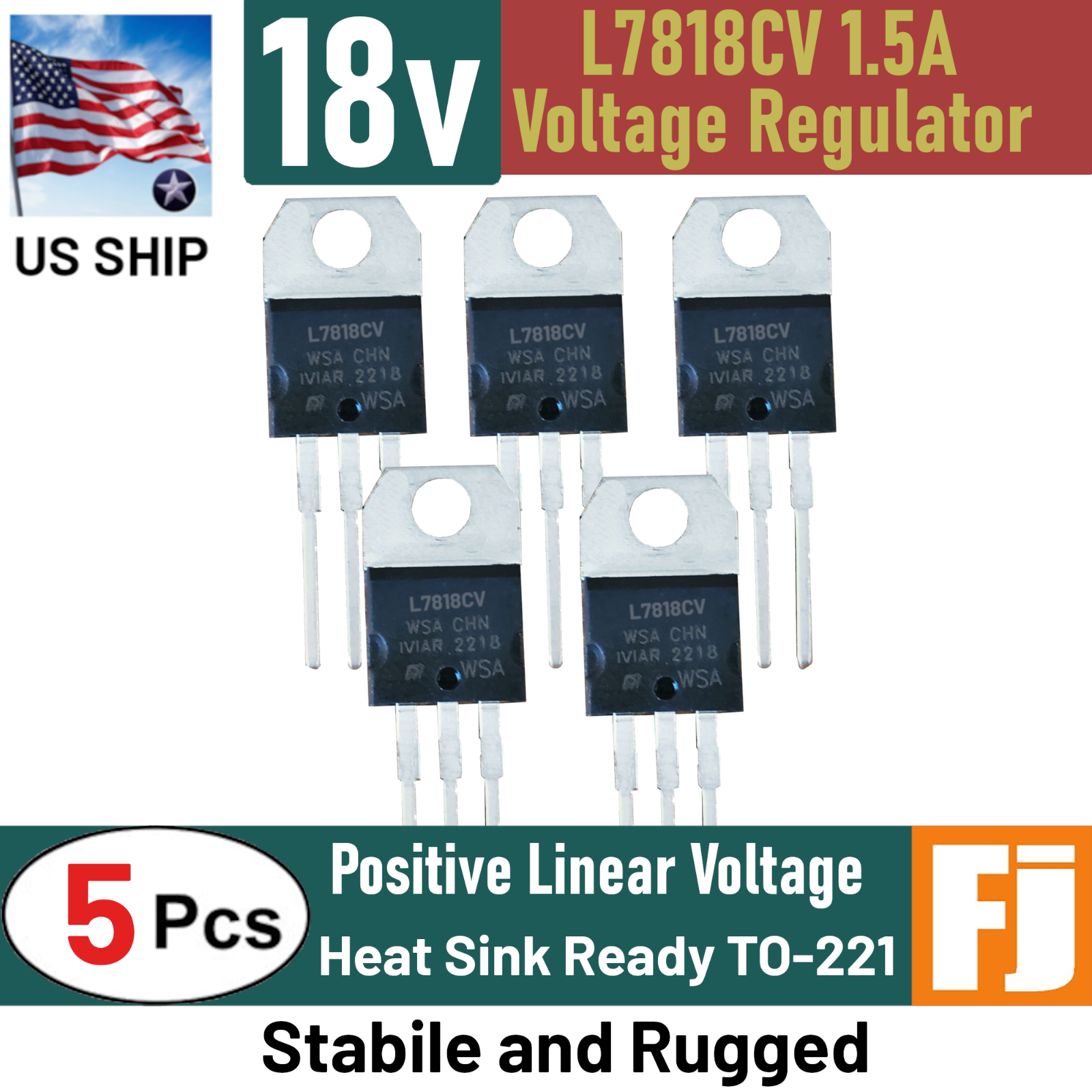

5PCS L7818CV | 3 Pin Positive Voltage Regulator | 18V 1.5A TO-220
4 in stock
4 in stock
5PCS L7818CV Voltage Regulator
Discover our 5PCS L7818CV, a reliable positive voltage regulator perfect for your electrical engineering needs, offering efficient power management and ease of use.
- Output Voltage: 18V
- Output Current: 1.5A
- Package Type: TO-220
- High Efficiency Operation
- Ideal for Power Supply Applications
Enhance your projects with the L7818CV, providing stable voltage regulation for various electronic applications.
Shipping, returns, and payments
5PCS L7818CV | 3 Pin Positive Voltage Regulator | 18V 1.5A TO-220 | US Ship
Product Details:
Enhance the stability of your electronic designs with the L7818CV Positive Voltage Regulator. This high-performance 18V regulator ensures consistent output for various applications, delivering reliability and efficiency for both hobbyist and professional projects. Its TO-220 package offers effective thermal performance, ideal for power electronics.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Output Voltage: 18V
- ✅ Output Current: 1.5A
- ✅ Package Type: TO-220
- ✅ Input Voltage: up to 35V
- ✅ Operating Temperature: -40°C to +125°C
- ✅ Application: Voltage regulation in DC power supplies, microcontroller projects, and more
Features & Benefits:
- ✔️ Ensures stable voltage supply under varying load conditions
- ✔️ Built-in thermal overload protection for enhanced safety
- ✔️ Short-circuit protection ensures robust performance
- ✔️ Suitable for industrial and DIY electronic applications

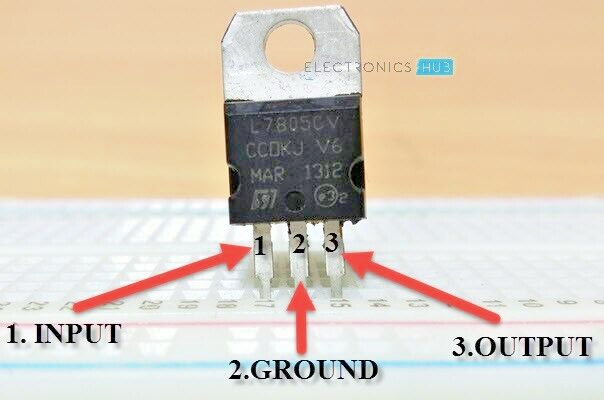

- ✔️ Simple integration into your circuits with standard 3-pin layout
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|

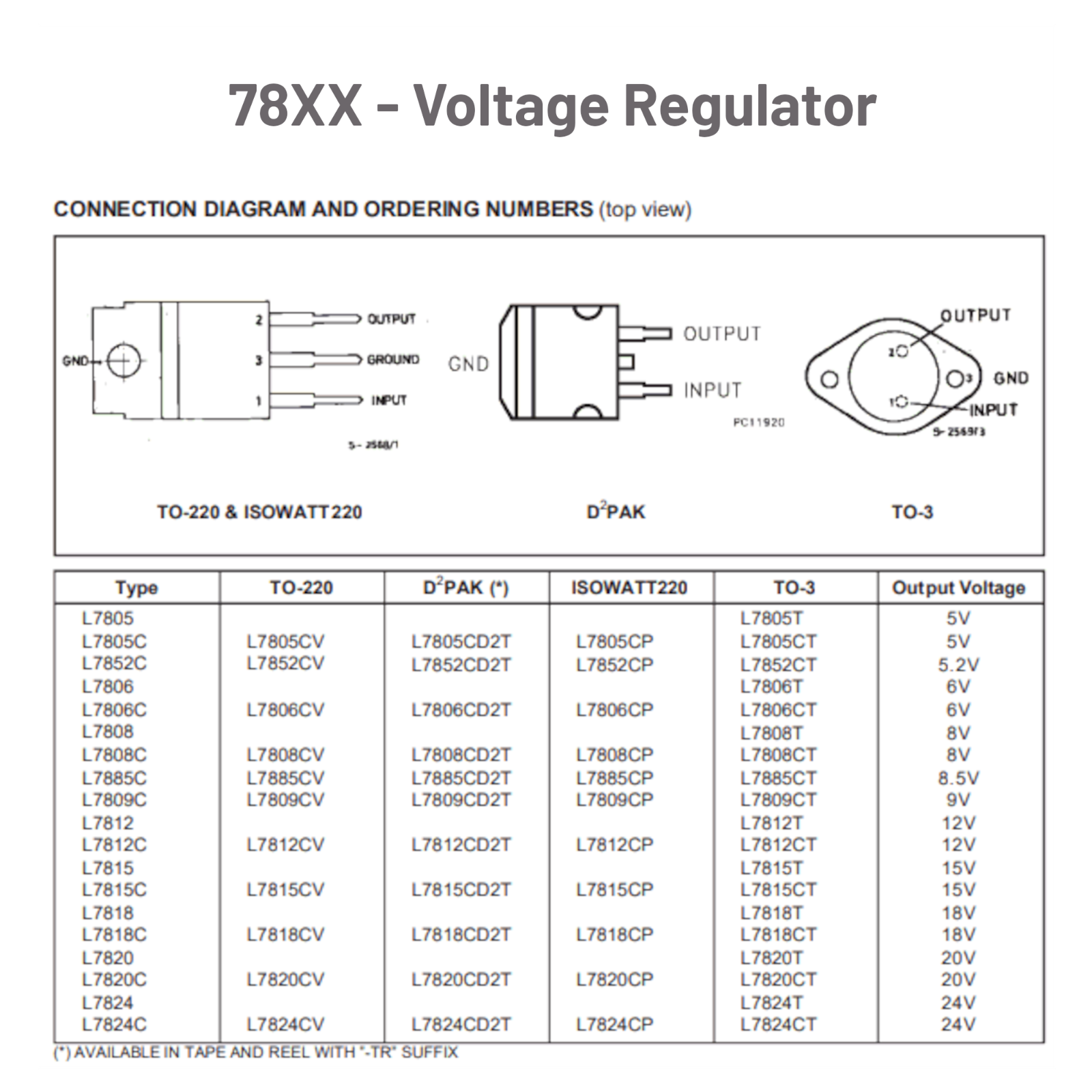

| Series | L78xx |

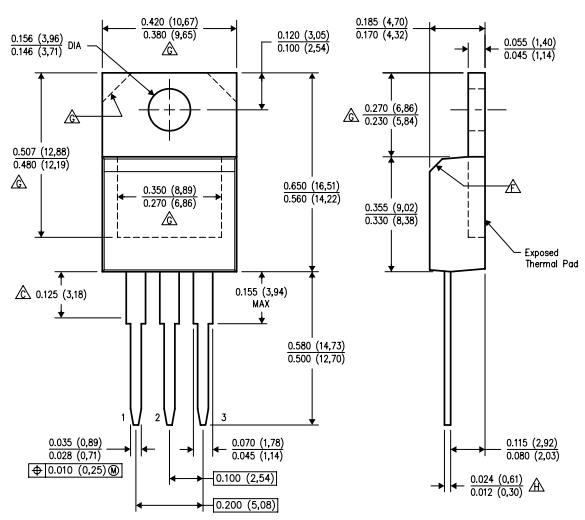

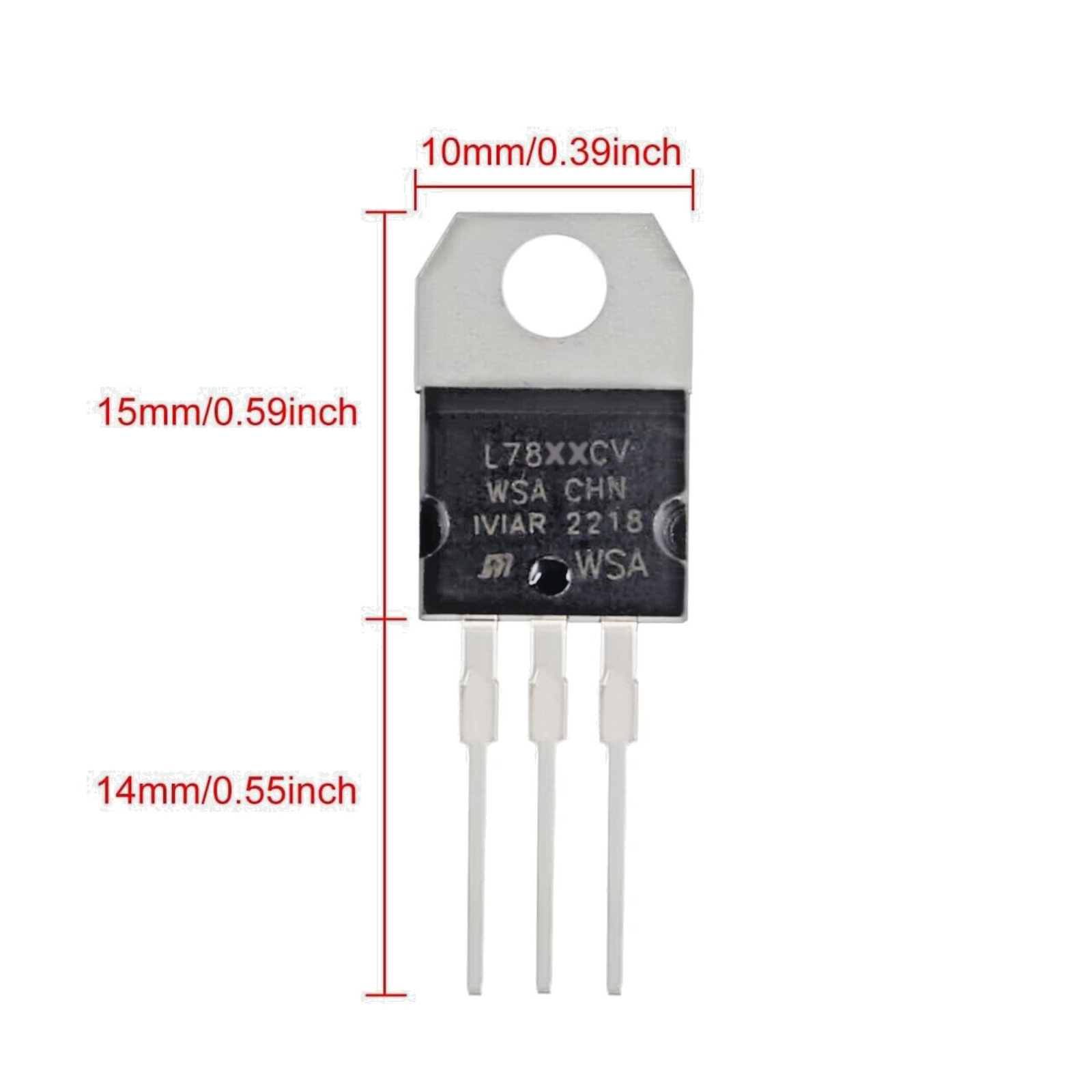

| Height | 1.03 in (26.16 mm) |
| Width | 0.36 in (9.15 mm) |
| Weight | 2g |
| Regulator Topology | Linear |
| Polarity | Positive |
| Application | Voltage Regulation |
| Manufacturer | STMicroelectronics |
| Thermal Shutdown | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Quiescent Current | 8mA |
| Mounting Style | Through Hole |
| Product Name | 5PCS L7818CV |
| Line Regulation | ±0.04%/V |
| Load Regulation | ±0.5% |
| Storage Temperature Range | -65°C to +150°C |
| Operating Temperature Range | 0°C to +125°C |
| Output Type | Fixed |
| Dropout Voltage | 2V |
| Maximum Input Voltage | 35V |
| Minimum Input Voltage | 20V |
| Number of Pins | 3 |
| Package Type | TO-220 |
| Output Current | 1.5A |
| Output Voltage | 18V |
| Description | 3 Pin Positive Voltage Regulator |
| Depth | 0.18 in (4.57 mm) |
