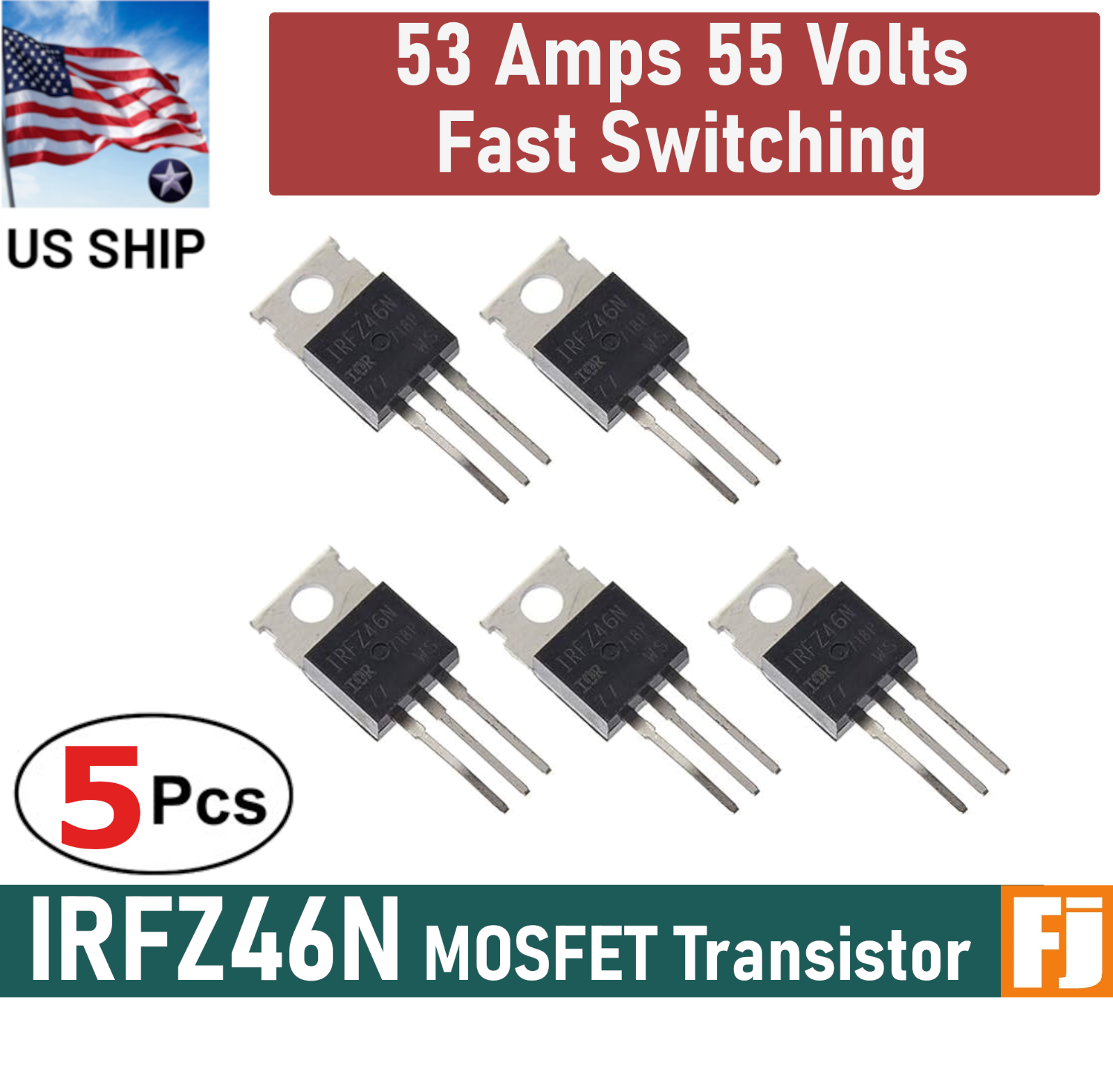

5pcs IRFZ46N IRFZ46 Power MOSFET Transistor 53A 55V Fast Switching IR
1 in stock
1 in stock

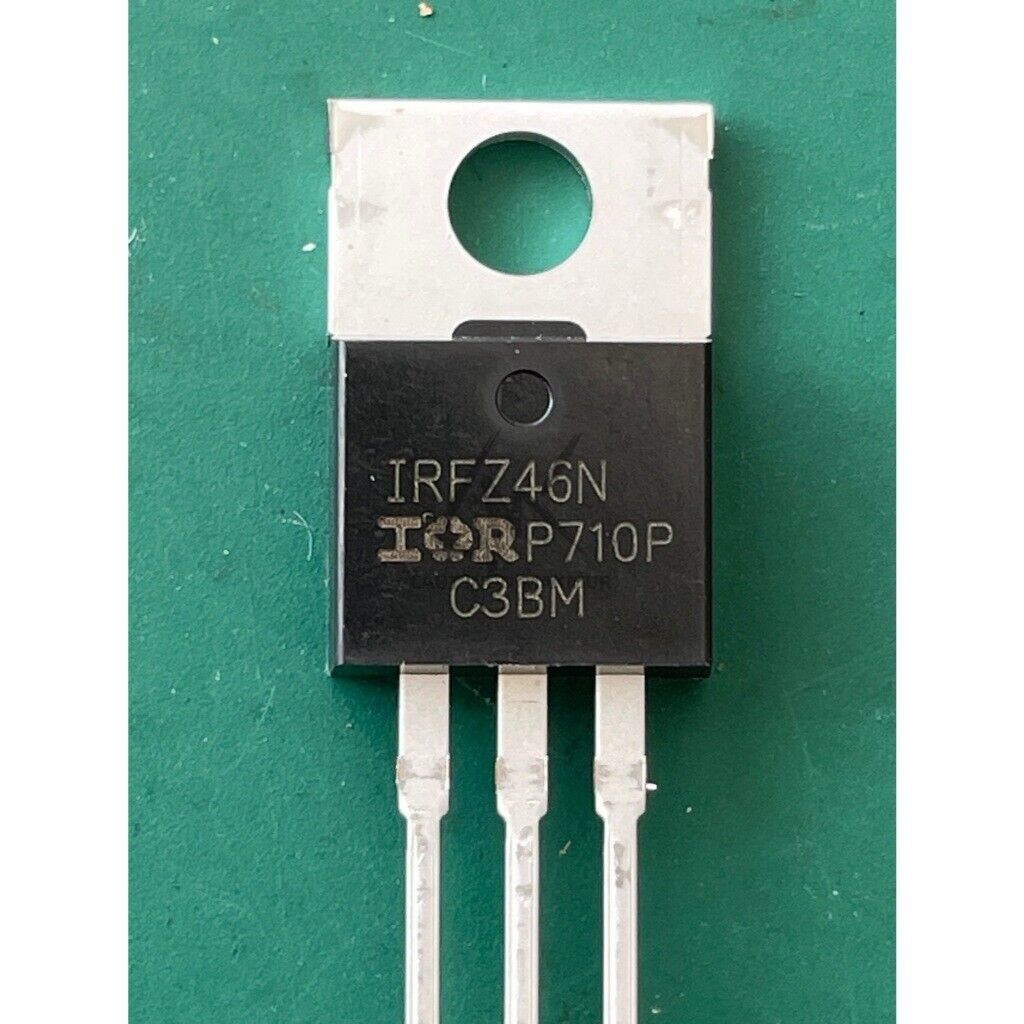

IRFZ46N Power MOSFET 5pcs
Enhance your electrical engineering projects with the IRFZ46N Power MOSFET. Designed for high efficiency and reliable performance, these transistors are perfect for your high-speed switching applications.
- Voltage: 55V
- Current: 53A
- Package Type: TO-220
- High Efficiency Switching
- Ideal for Power Management
Optimize your power control systems with the IRFZ46N, the trusted choice for durability and precision. Great for DIY projects, educational purposes, and industrial applications.
Shipping, returns, and payments
5pcs IRFZ46N IRFZ46 Power MOSFET Transistor 53A 55V Fast Switching IR | US Ship
Product Details:
Enhance your electrical project with these IRFZ46N Power MOSFET Transistors, engineered for high efficiency and rapid switching. Perfect for professionals and hobbyists in electrical engineering, these transistors deliver superior high-power performance in demanding circuits.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Current: 53A
- ✅ Voltage: 55V
- ✅ Type: Power MOSFET Transistor
- ✅ Application: Fast switching for motor control, power supply, and inverters
Features & Benefits:
- ✔️ Efficient energy handling with high current capacity
- ✔️ Fast switching speeds for optimized performance
- ✔️ Robust design suitable for various industrial applications
- ✔️ Ideal for DC-DC converters, motor drives, and power amplifiers
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | IR |
|---|---|
| Rds On Max | 22 mΩ |
| Country of Origin | USA |
| Product Weight | 0.014 lbs (approx per transistor) |
| Channel Mode | Enhancement |
| Applications | High Speed Switching, Power Management |
| Lead Free Status | ROHS Compliant |
| Mounting Type | Through Hole |
| Package Case | TO-220 |
| Operating Temperature Range | -55 °C to +175 °C |
| Junction to Case Thermal Resistance | 1.3 °C/W |
| Reverse Recovery Time | 100 ns |
| Output Capacitance | 460 pF |
| Input Capacitance | 1800 pF |
| Fall Time | 35 ns |
| Product Name | 5pcs IRFZ46N IRFZ46 Power MOSFET Transistor 53A 55V Fast Switching IR |
| Turn-Off Delay Time | 45 ns |
| Rise Time | 150 ns |
| Turn-On Delay Time | 80 ns |
| Gate Charge at Vgs | 52 nC |
| Min Gate Threshold Voltage | 2 V |
| Maximum Gate Threshold Voltage | 4 V |
| Max Power Dissipation | 94 W |
| Max Gate to Source Voltage | ±20 V |
| Drain to Source Voltage | 55 V |
| Continuous Drain Current | 53 A |
| Transistor Type | N-Channel MOSFET |
| Manufacturer | International Rectifier (IR) |
| Part Number | IRFZ46N |
