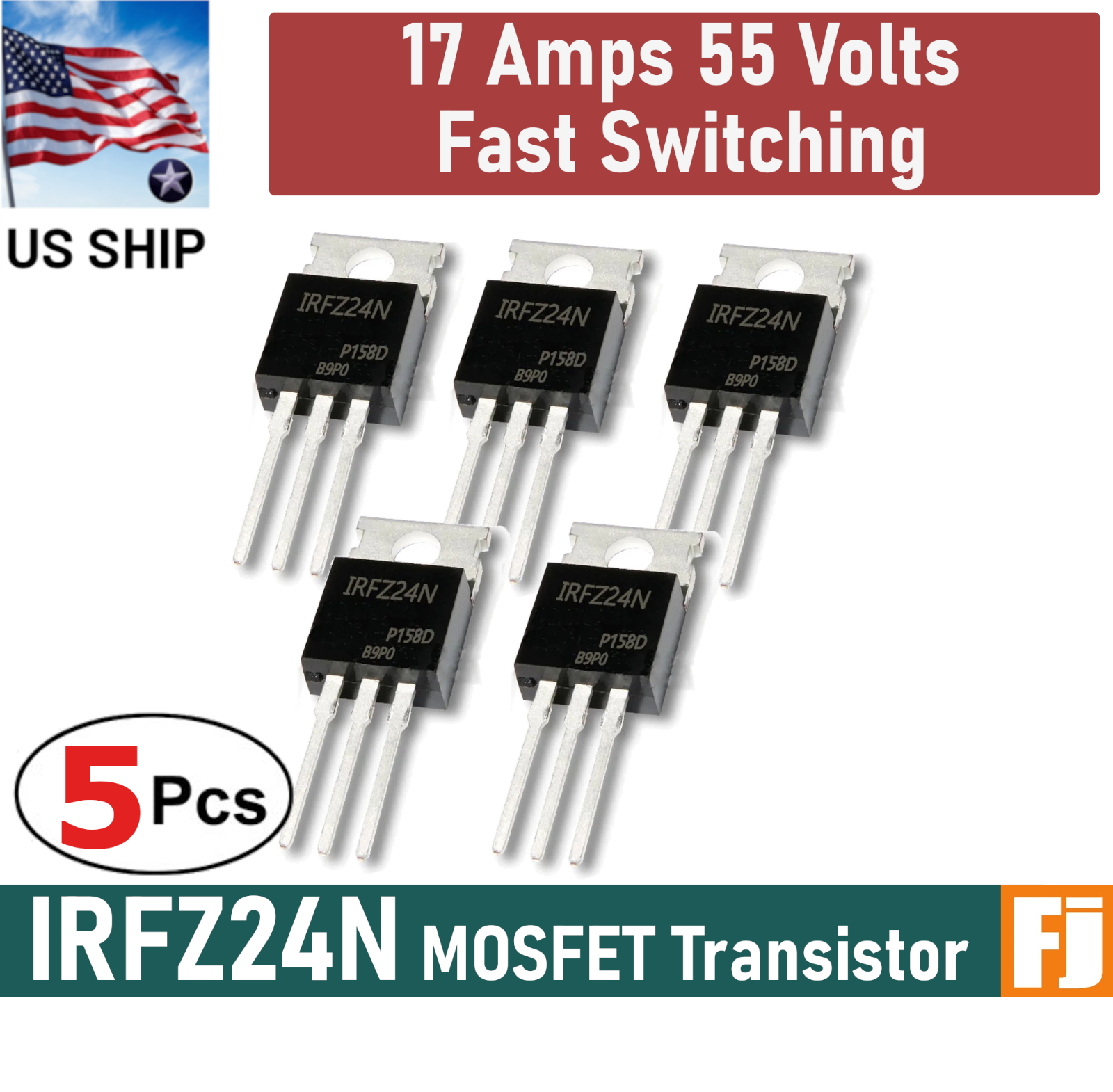

5x IRFZ24N IRFZ24 Power MOSFET Transistor 17A 55V Fast Switch NPN IR
1 in stock
1 in stock

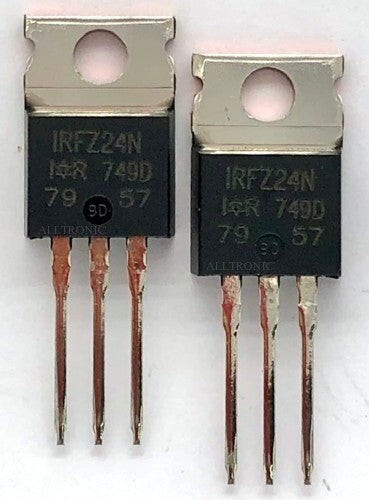

5x IRFZ24N Power MOSFETs
Discover the high-performance IRFZ24N Power MOSFET Transistor, ideal for your electrical engineering needs. Perfect for efficient switching applications and trusted by professionals worldwide.
- Voltage Rating: 55V
- Current Capacity: 17A
- Package Type: TO-220
- High Efficiency Switching
- Ideal for NPN Configurations
Upgrade your projects with reliable performance and exceptional efficiency—perfect for switching applications and intricate circuit designs.
Shipping, returns, and payments
5x IRFZ24N IRFZ24 Power MOSFET Transistor 17A 55V Fast Switch NPN IR | US Ship
Product Details:
Enhance your high-power circuits with these IRFZ24N Power MOSFET Transistors. Engineered for reliability and efficiency, these components are perfect for fast-switching applications, offering superior performance in both switching and amplification tasks.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Continuous Drain Current (ID): 17A
- ✅ Drain-Source Voltage (VDS): 55V
- ✅ Type: N-Channel MOSFET
- ✅ Package: TO-220
- ✅ Application: High-speed switching and amplification
Features & Benefits:
- ✔️ Fast-switching capability improves performance in dynamic circuits.
- ✔️ Low on-state resistance for efficient power management.
- ✔️ Rugged and reliable design ensures extended lifespan.
- ✔️ Versatile applications including DC-DC converters, motor drivers, and power supplies.
- ✔️ Easy to integrate into existing designs with standard TO-220 package.
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Packaging | TO-220 |
| Material | Silicon |
| Ft - Transition Frequency | Not Applicable |
| Secondary Breakdown | Not Applicable |
| Drain Source On Resistance | 0.06 Ohm |
| Gate Charge (Qg) | 30nC |
| Output Capacitance (Coss) | 140pF |
| Turn Off Delay Time | 30ns |
| Turn On Delay Time | 20ns |
| Switching Energy | 1.5mJ |
| Polarity | NPN |
| Mounting Type | Through Hole |
| Operating Temperature Range | -55°C to 175°C |
| Number of Pins | 3 |
| Maximum Gate Source Voltage | ±20V |
| Part Number | IRFZ24N |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Drain Source Voltage | 55V |
| Fall Time | 45ns |
| Rise Time | 60ns |
| Input Capacitance (Ciss) | 650pF |
| Maximum Temperature | 175°C |
| Power Dissipation | 94W |
| Rds On | < 0.06 Ohm |
| Gate Source Voltage (Vgs) | ±20V |
| Drain Source Voltage (Vds) | 55V |
| Continuous Drain Current (Id) | 17A |
| Transistor Type | N-Channel |
| Description | IRFZ24 Power MOSFET Transistor |
