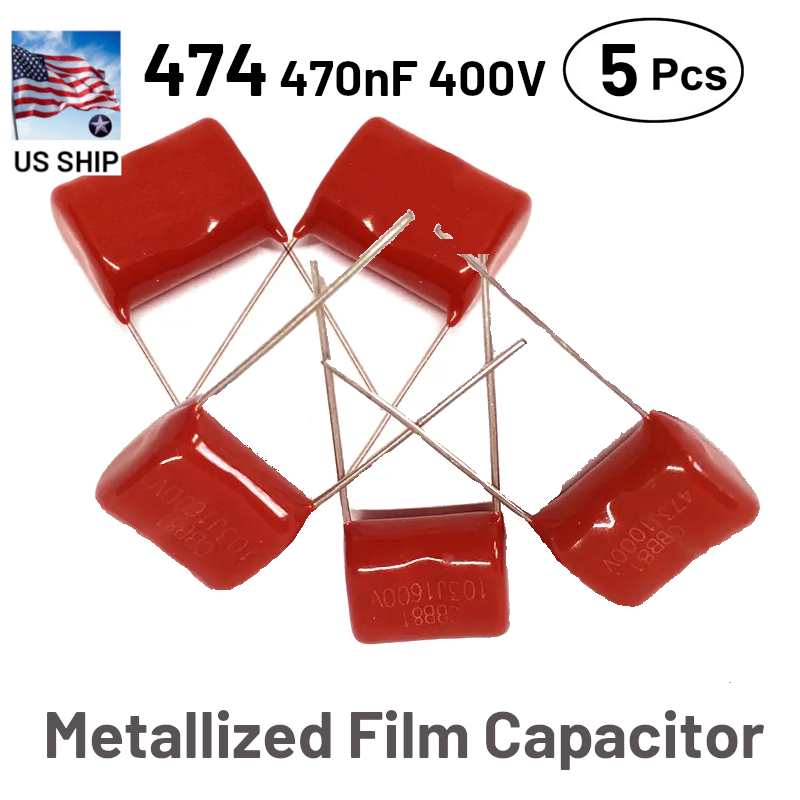

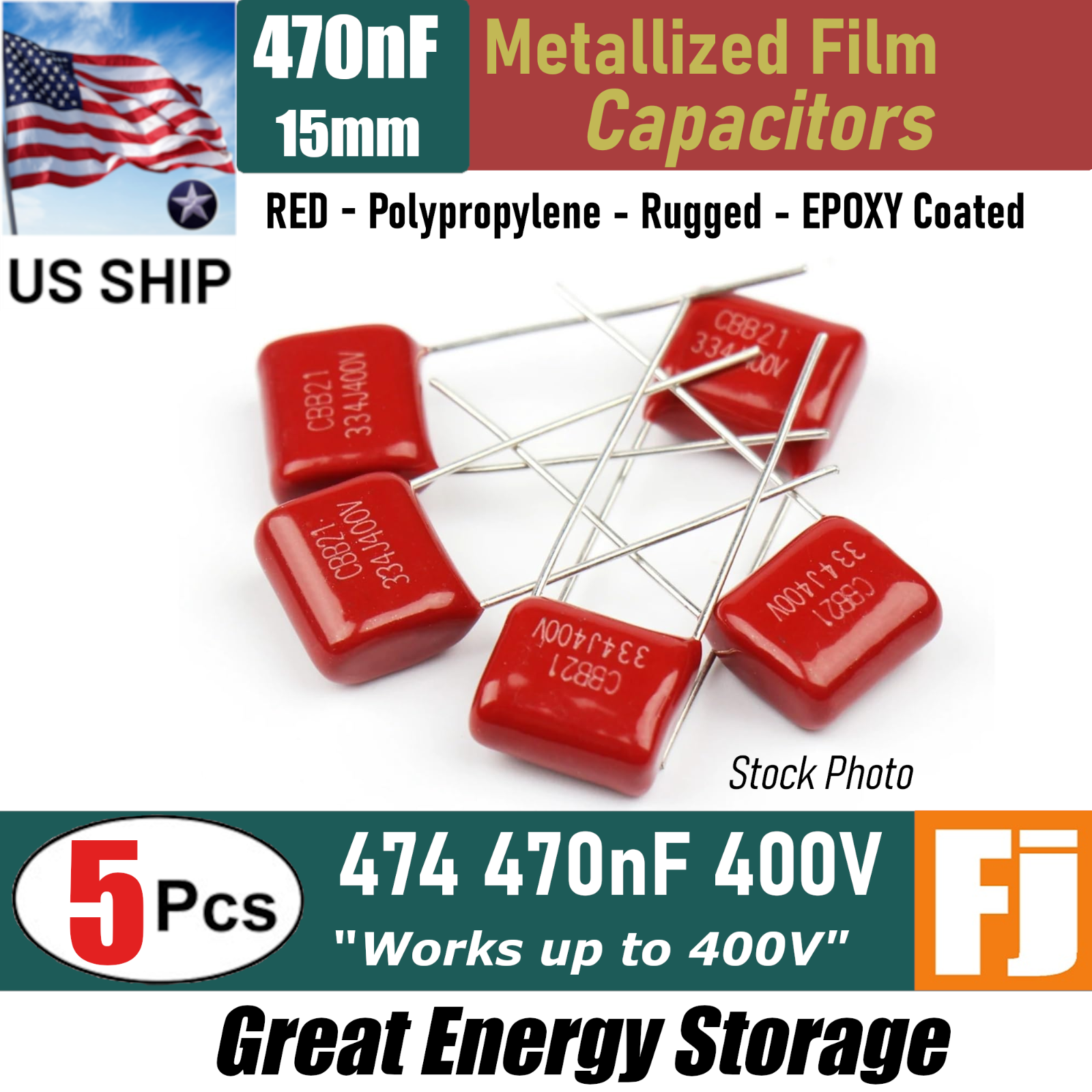

5pcs 474 470nF 400V 15mm Metallized Polypropylene Film Capacitor
1 in stock
1 in stock
5pcs 474 400V Poly Film Caps
Upgrade your circuit designs with our high-performance 5pcs 474 470nF 400V Metallized Polypropylene Film Capacitors. Ideal for precision applications, these capacitors ensure reliability and stability in demanding electrical environments.
- Capacitance: 470nF
- Voltage Rating: 400V DC
- Lead Spacing: 15mm
- Package Type: Radial
- Applicable Use: Power Supply Filtering
Secure your set of 5pcs 474 Capacitors today and enhance the efficiency and reliability of your electrical engineering projects!
Shipping, returns, and payments
5pcs 474 470nF 400V 15mm Metallized Polypropylene Film Capacitor | US Ship
Product Details:
Optimize your electrical projects with this high-performance set of Metallized Polypropylene Film Capacitors. Engineered for superior stability and reliability, these capacitors are ideal for filtering, bypassing, and coupling in various circuits. Perfect for professional and hobbyist use in high-frequency and power applications.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Capacitance: 470nF (0.47μF)
- ✅ Voltage Rating: 400V
- ✅ Lead Spacing: 15mm
- ✅ Type: Metallized Polypropylene Film Capacitor
- ✅ Tolerance: ±5%
- ✅ Application: Filtering, bypassing, and coupling in electronics
Features & Benefits:
- ✔️ Provides exceptional voltage handling for enhanced safety
- ✔️ Low dielectric absorption for precise signal processing
- ✔️ Robust construction ensures long-term performance
- ✔️ High-frequency operation suited for advanced circuit designs
- ✔️ Suitable for audio, power supplies, and industrial use
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Generic |
|---|---|
| Lead Type | Radial |
| Condition | New |
| Series | Generic Series |
| Max AC Voltage | 250V |
| Mounting Style | Through Hole |
| Voltage Proof | 1.6 x Rated Voltage during test |
| Humidity Tolerance | High Humidity Tolerance |
| Construction | Non-Inductive |
| Inductance | Low Inductance |
| RoHS Compliant | Yes |
| Safety Standards | UL Recognized |
| Dimensions | 15mm (Lead Spacing) |
| Name | 5pcs 474 470nF 400V 15mm Metallized Polypropylene Film Capacitor, US Ship |
| Package Quantity | 5 pcs |
| Capacitor Type | Foil |
| Leakage Current | Lesser than 0.01CV or 3μA |
| ESR (Equivalent Series Resistance) | Low ESR |
| Dissipation Factor | 0.1% at 1kHz |
| Operating Temperature Range | -55°C to +105°C |
| Temperature Coefficient | ±100ppm/°C |
| Lead Spacing | 15mm |
| Dielectric Material | Metallized Polypropylene |
| Rated Voltage | 400V |
| Tolerance | ±5% |
| Capacitance | 470nF |
