50pcs SS9015 S9015 PNP Transistor TO-92 45V 100mA 450mW
1 in stock
1 in stock
50pcs SS9015 PNP Transistor TO-92
Discover dependable performance with our SS9015 PNP Transistors, perfect for a variety of electronic applications. Designed to meet rigorous electrical engineering standards, these transistors offer excellent efficiency and reliability.
- Voltage Rating: 45V
- Current Rating: 100mA
- Power Dissipation: 450mW
- Package Type: TO-92
- Ideal for Amplification and Switching
Enhance your project’s functionality with these transistors, shipped directly from the US for quick delivery. Perfect for professional and hobbyist engineers alike.
Shipping, returns, and payments
50pcs SS9015 S9015 PNP Transistor TO-92 45V 100mA 450mW | US Ship
Product Details:
Enhance your electronic designs with these premium SS9015 PNP Transistors. Ideal for amplification and switching applications, these transistors ensure reliable performance in various circuits. Engineered for high efficiency, they are perfect for projects demanding quick response times and stability.
Specifications:
- ✅ Quantity: 50 Pieces
- ✅ Package Type: TO-92
- ✅ Collector-Emitter Voltage (VCEO): 45V
- ✅ Collector Current (IC): 100mA
- ✅ Power Dissipation (PD): 450mW
- ✅ Type: PNP BJT Transistor
Features & Benefits:
- ✔️ Efficient and reliable for amplification and switching
- ✔️ Compact TO-92 package for easy integration
- ✔️ High performance with fast response times
- ✔️ Robust design with excellent thermal stability
- ✔️ Suitable for audio amplifiers, RF circuits, and more
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Product Name | 50pcs SS9015 S9015 PNP Transistor |
|---|---|
| Collector-Base Breakdown Voltage | 50V |
| Product Code | SS9015 |

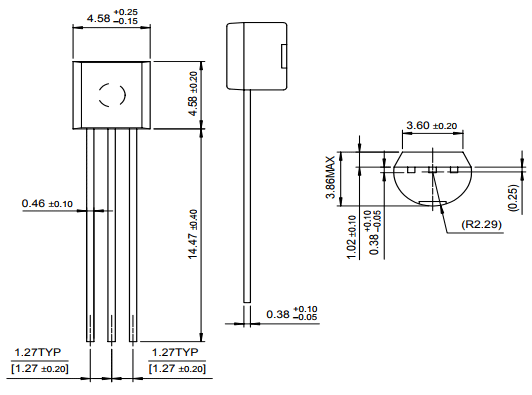

| Dimensions | 4.33mm x 4.33mm x 3.18mm |
| Weight | 1g per unit |
| Quantity | 50 |
| Brand | Generic |

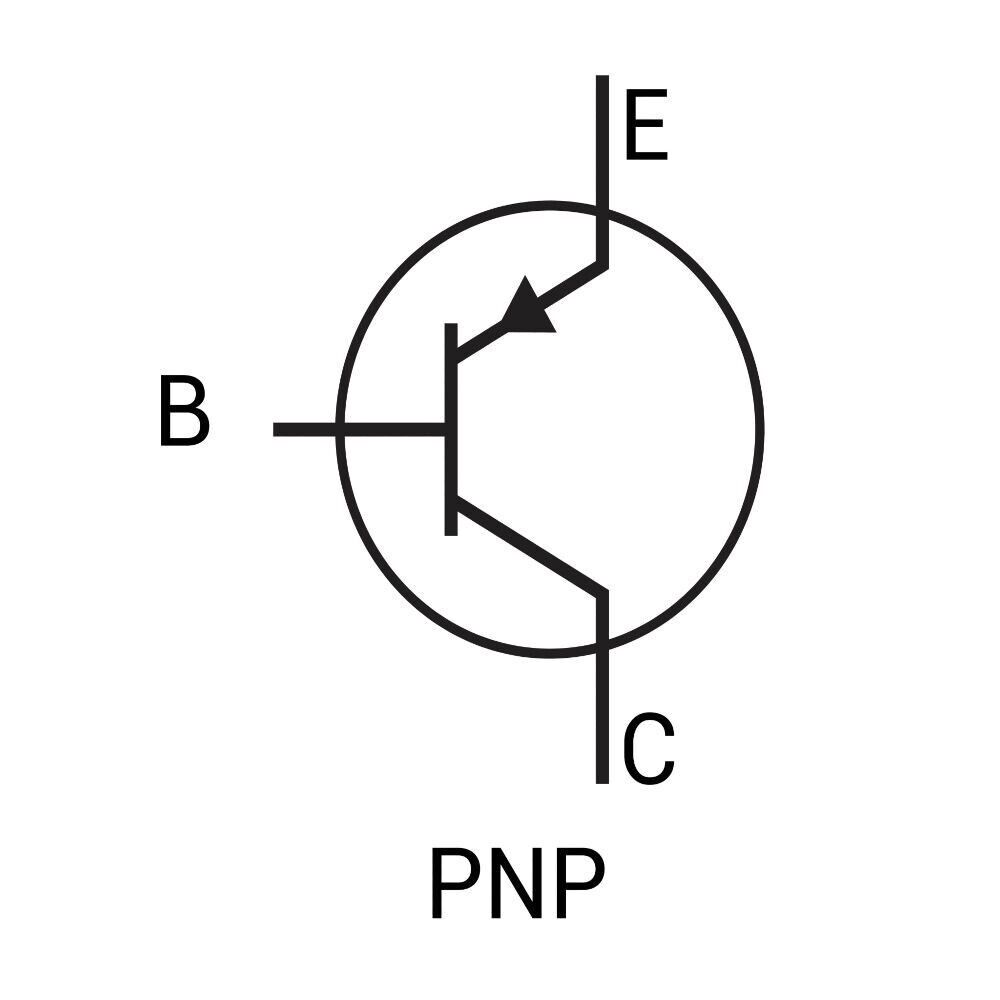

| Polarity | PNP |
| Lead-Free Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Operating Temperature Range | -55°C to +150°C |
| Maximum Emitter Cutoff Current Iebo | 0.5uA |
| Maximum Collector Cutoff Current Icbo | 0.1uA |
| Emitter-Base Breakdown Voltage | 5V |
| Package Type | TO-92 |
| Collector-Emitter Breakdown Voltage | 45V |
| Noise Figure | 4dB |
| Saturation Voltage Vbe (sat) | 1.2V |
| Saturation Voltage Vce (sat) | 0.6V |
| Transition Frequency ft | 100MHz |
| DC Current Gain hFE (Max) | 300 |
| DC Current Gain hFE (Min) | 85 |
| Maximum Emitter-Base Voltage Veb | 5V |
| Maximum Collector-Base Voltage Vcb | 50V |
| Power Dissipation Pd | 450mW |
| Collector Current Ic (Continuous) | 100mA |
| Collector-Emitter Voltage Vce | 45V |
| Transistor Type | PNP |
| Origin | US Ship |
