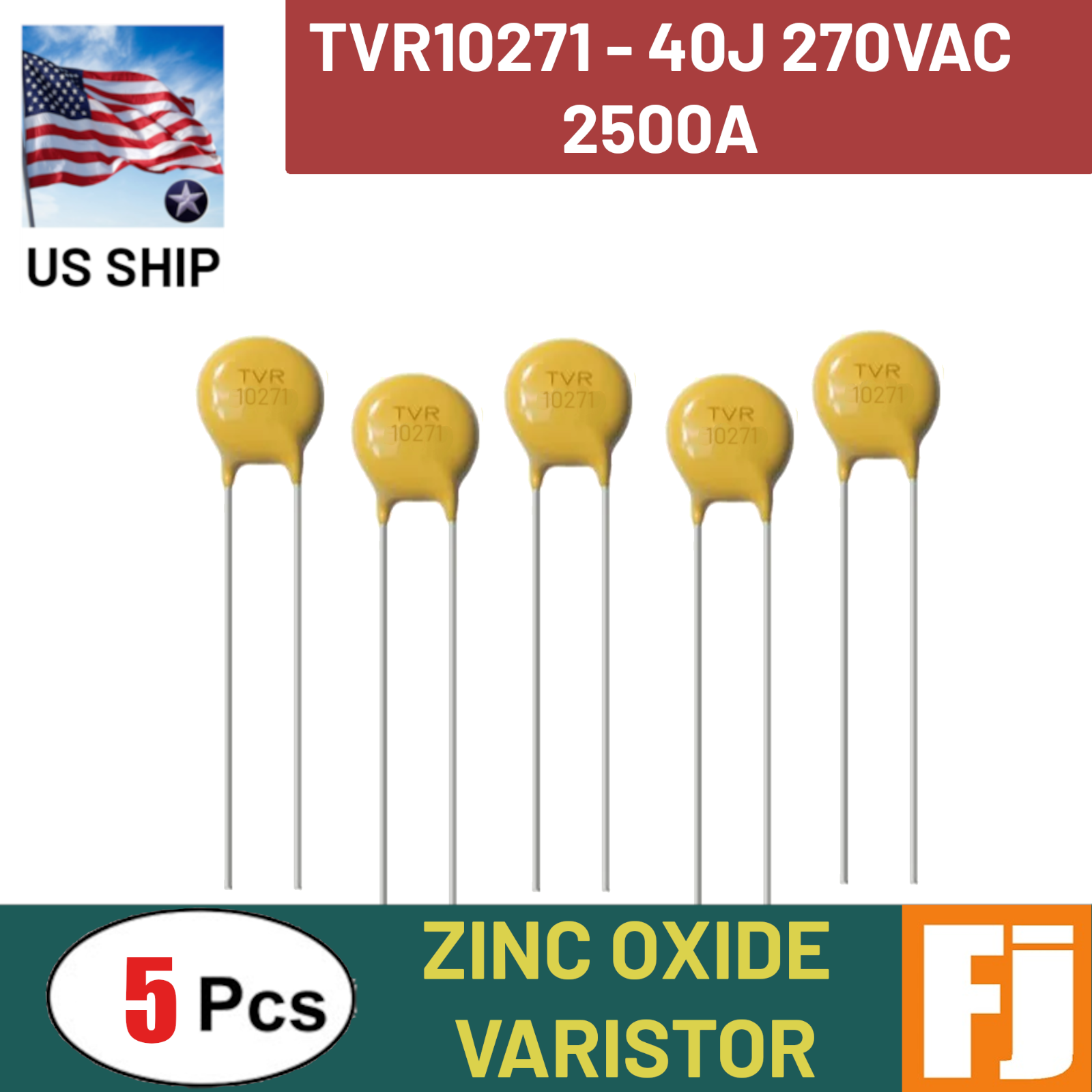

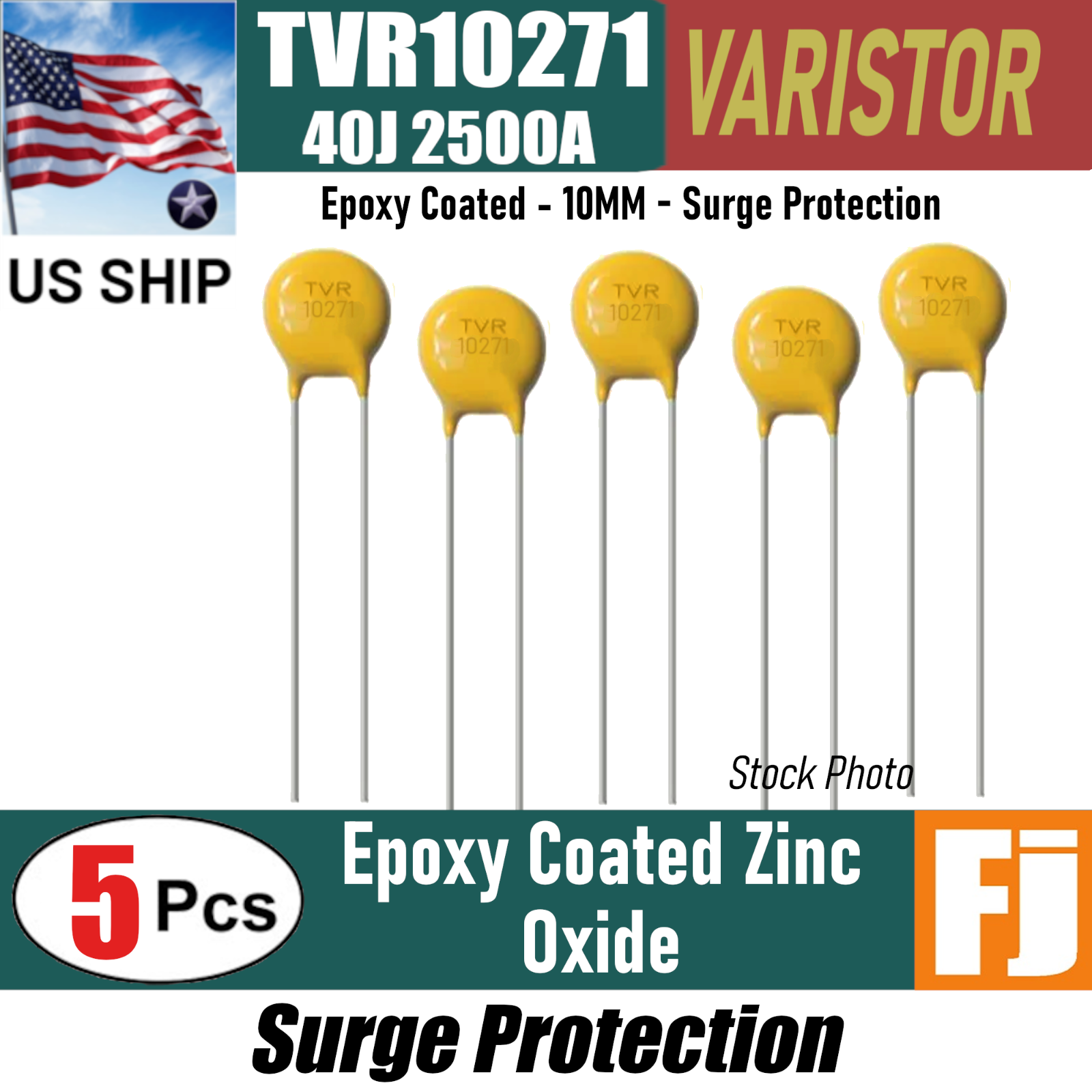

5x TVR10271 Zinc Oxide Varistor | Surge Protection | 40J 2500A 10MM
Out of stock
Out of stock
5pcs TVR10271 Varistor | Surge
Introducing the TVR10271 Zinc Oxide Varistor, designed for effective surge protection. Perfect for safeguarding electrical circuits in high-demand environments.
- Voltage Rating: 275V AC
- Surge Current: 2500A Peak
- Energy: 40 Joules
- Disc Diameter: 10mm
- Ideal for: Circuit Protection
Optimize the reliability of your systems with our high-performance varistors. Perfect for engineer-designed solutions in industrial applications and home electronics. Order now to ensure consistent protection against power surges.
Shipping, returns, and payments
5 Pcs TVR10271 Zinc Oxide Varistor | Surge Protection | 40J 2500A 10MM | US Ship
Product Details:
Enhance the safety and reliability of your electronic circuits with these premium TVR10271 Zinc Oxide Varistors. Expertly designed for surge protection, these components effectively safeguard sensitive electrical equipment from voltage spikes and surges. Ideal for industrial, commercial, and residential applications, ensuring consistent performance under stress.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Energy: 40J
- ✅ Current Capacity: 2500A
- ✅ Diameter: 10mm
- ✅ Type: Zinc Oxide Varistor
- ✅ Maximum AC Voltage: 275V
- ✅ Response Time: < 25 ns
Features & Benefits:
- ✔️ Superior surge protection to enhance device longevity
- ✔️ Compact 10mm size for versatile integration
- ✔️ High energy absorption capacity for effective protection
- ✔️ Quick response time for minimal downtime
- ✔️ Suitable for a range of applications including power supplies, telecom, and consumer electronics
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded/Generic |
|---|---|
| Storage Temperature Range | -40°C to +125°C |
| Weight | 2g |
| Country/Region of Manufacture | China |
| Lead Spacing | 5mm |
| Safety Standard | UL Recognized |
| RoHS Compliant | Yes |
| Applications | Surge Suppression |
| Packaging | Bulk |
| Mounting Method | Through Hole |
| Lead Material | Tin Plated Copper |
| Body Color | Blue |
| Operating Temperature Range | -40°C to +85°C |
| Part Name | TVR10271 Zinc Oxide Varistor |
| Tolerance | 10% |
| Capacitance | 140pF |
| Clamping Voltage | 455V |
| Maximum DC Voltage Rating | 225V |
| Maximum AC Voltage Rating | 175V RMS |
| Varistor Voltage | 270V |
| Material | Zinc Oxide |
| Disc Diameter | 10MM |
| Peak Current | 2500A |
| Energy Rating | 40J |
| Surge Protection | Yes |
| Quantity | 5 Pcs |
| MOQ (Minimum Order Quantity) | 5 Pcs |
