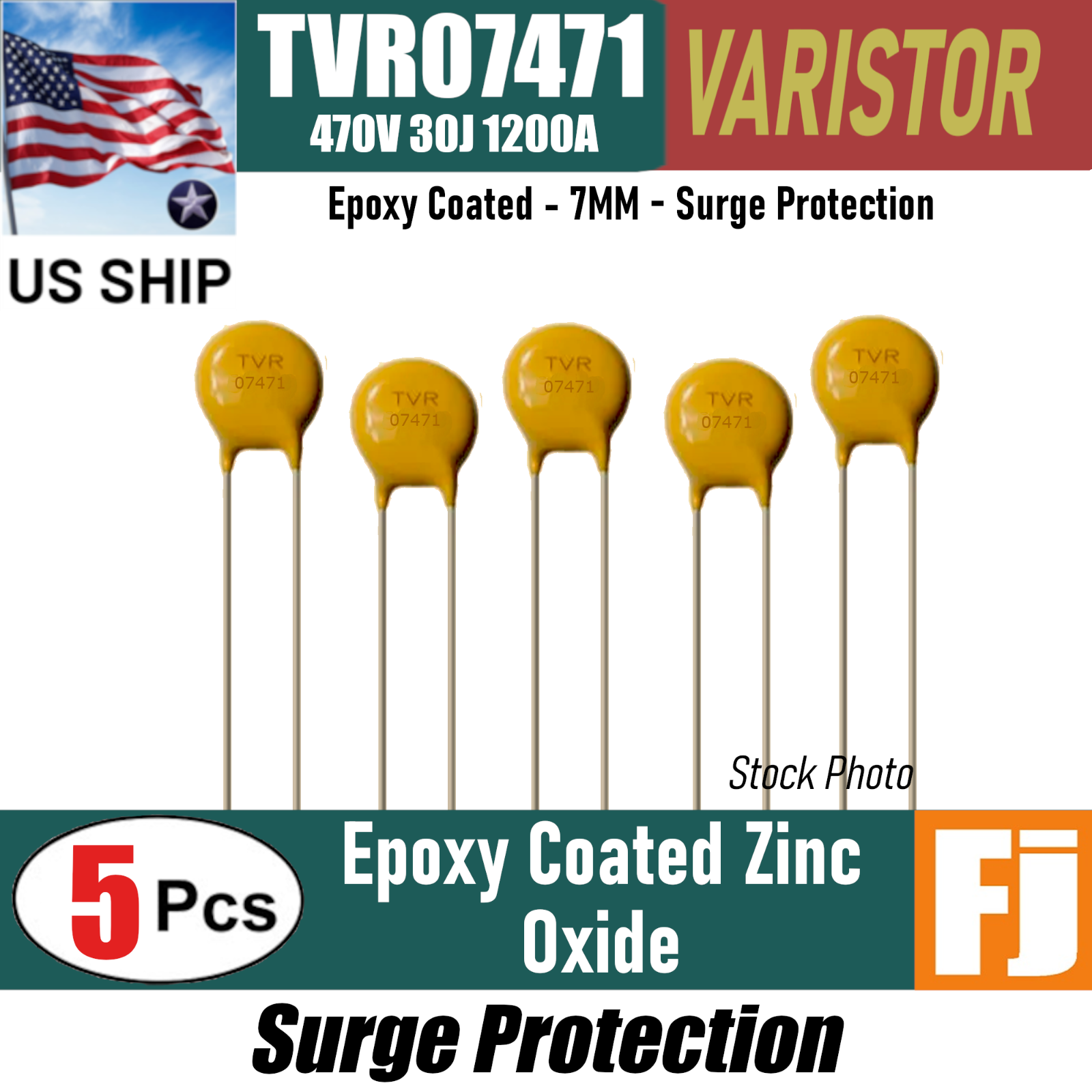

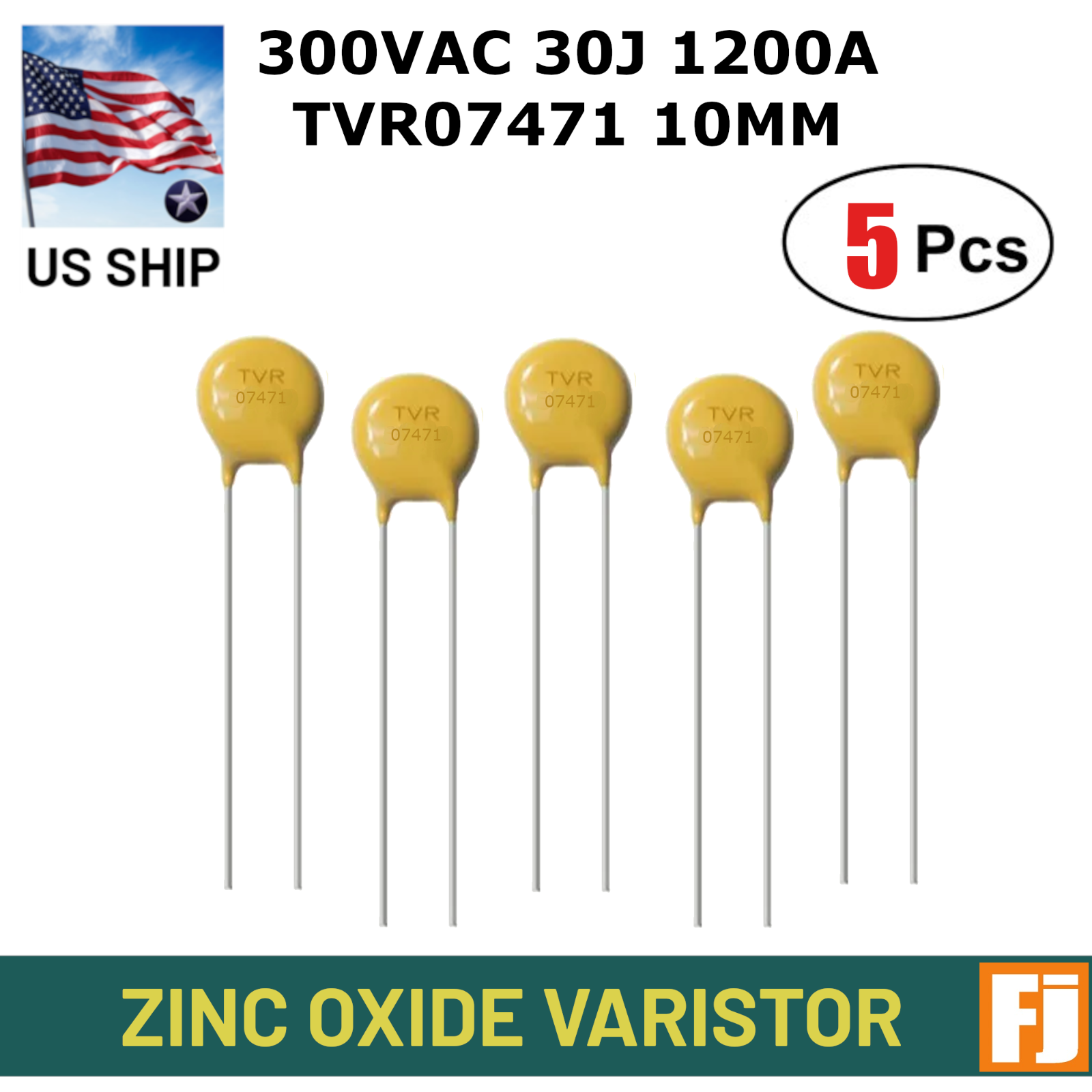

TVR07471 470V Zinc Oxide Metal Oxide Varistor (MOV), 300VAC, 7mm Straight Radial Through-Hole, 5-Pack
5 in stock
5 in stock
5-piece TVR07471 zinc oxide varistor set for surge protection. 470V rating, 30J energy, 1200A peak current, 7mm diameter, through-hole radial leaded.
Shipping, returns, and payments
TVR07471 470V Zinc Oxide Metal Oxide Varistor (MOV), 300VAC, 7mm Straight Radial Through-Hole, 5-Pack
This 5-pack contains TVR07471-marked zinc oxide metal oxide varistors (MOVs) in a nominal 7mm radial-disc form. The supplied listing evidence identifies a 470V varistor rating and 300VAC maximum continuous rating, with two straight leads for through-hole mounting.

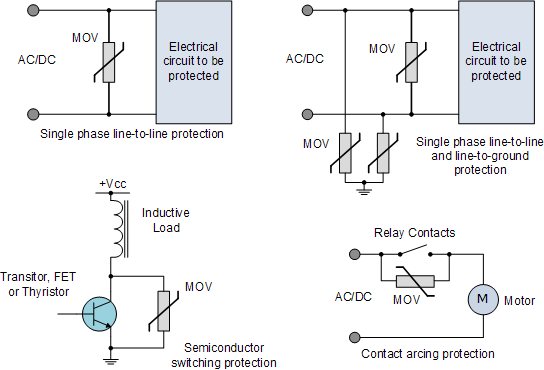

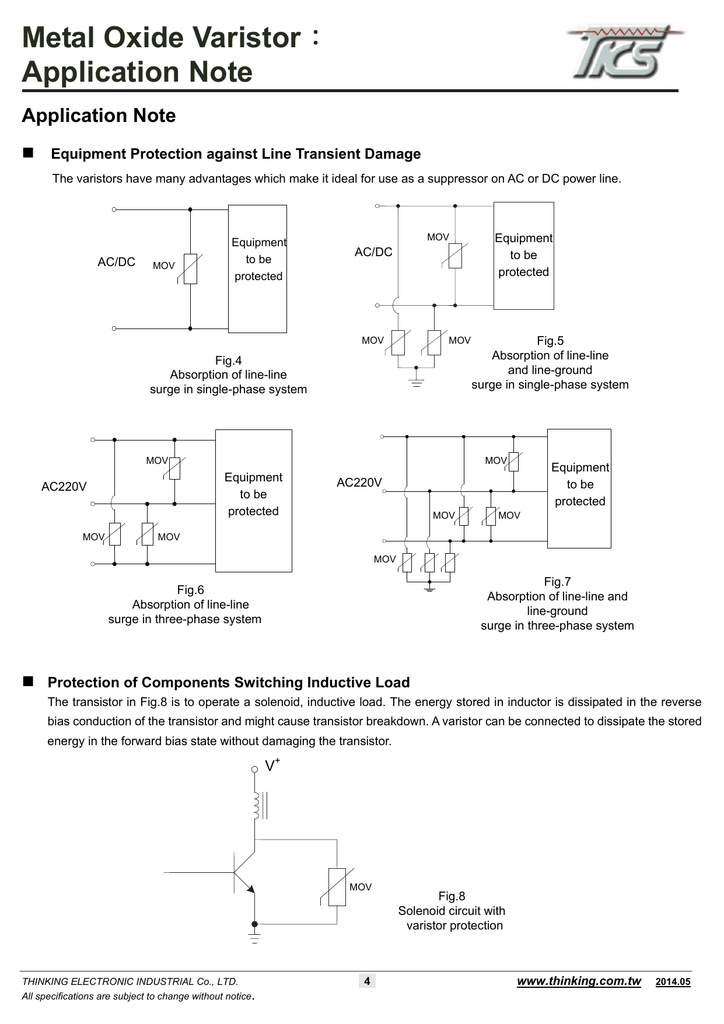

MOVs are voltage-dependent surge-suppression components used as parallel shunts to limit transient overvoltage in properly engineered AC or DC circuits.
Specifications:
- ✅ Body Marking: TVR 07471
- ✅ Quantity: 5 pieces
- ✅ Type: Metal Oxide Varistor (MOV)
- ✅ Technology: Zinc oxide
- ✅ Varistor Voltage: 470V nominal
- ✅ Maximum Continuous AC Voltage: 300VAC
- ✅ Nominal Size Class: 7mm
- ✅ Mounting: Through-hole, radial
- ✅ Leads: 2 straight leads
Features & Benefits:
- ✔ Voltage-dependent resistance provides transient overvoltage suppression when the MOV is selected and installed correctly.
- ✔ Symmetrical V-I behavior supports bidirectional surge response.
- ✔ Radial two-lead form is suited to conventional through-hole circuit-board installation.
- ✔ MOVs are commonly applied as parallel shunt protection on AC or DC transient-prone circuits.
Specifications
| Lead Type | Radial |
|---|---|
| Thermal Protection | None |
| Body Marking / Model Marking | TVR 07471 |
| Quantity | 5 Pieces |
| Component Type | Metal Oxide Varistor (MOV) |
| Technology / Material Class | Zinc Oxide |
| Nominal Size Class | 7 mm |
| Mounting Style | Through Hole |
| Lead Orientation | Radial |
| Number of Leads | 2 |
| Varistor Voltage | 470 V nominal |
| Maximum Continuous AC Voltage | 300 VAC |
| Electrical Function | Transient overvoltage / surge suppression |
| Device Behavior | Voltage-dependent resistance |
| Circuit Role | Parallel shunt overvoltage protection |
| Applicable Line Type | AC or DC transient-protection circuits |
| Application | Inductive-load switching transient suppression |
| Type | Zinc Oxide |
| Brand | TVS/THINKING |
