5 Pcs Slow-Blow Fuse 8A 250V Ceramic Fuses 5 x 20 mm (8 Amp)
1 in stock
1 in stock

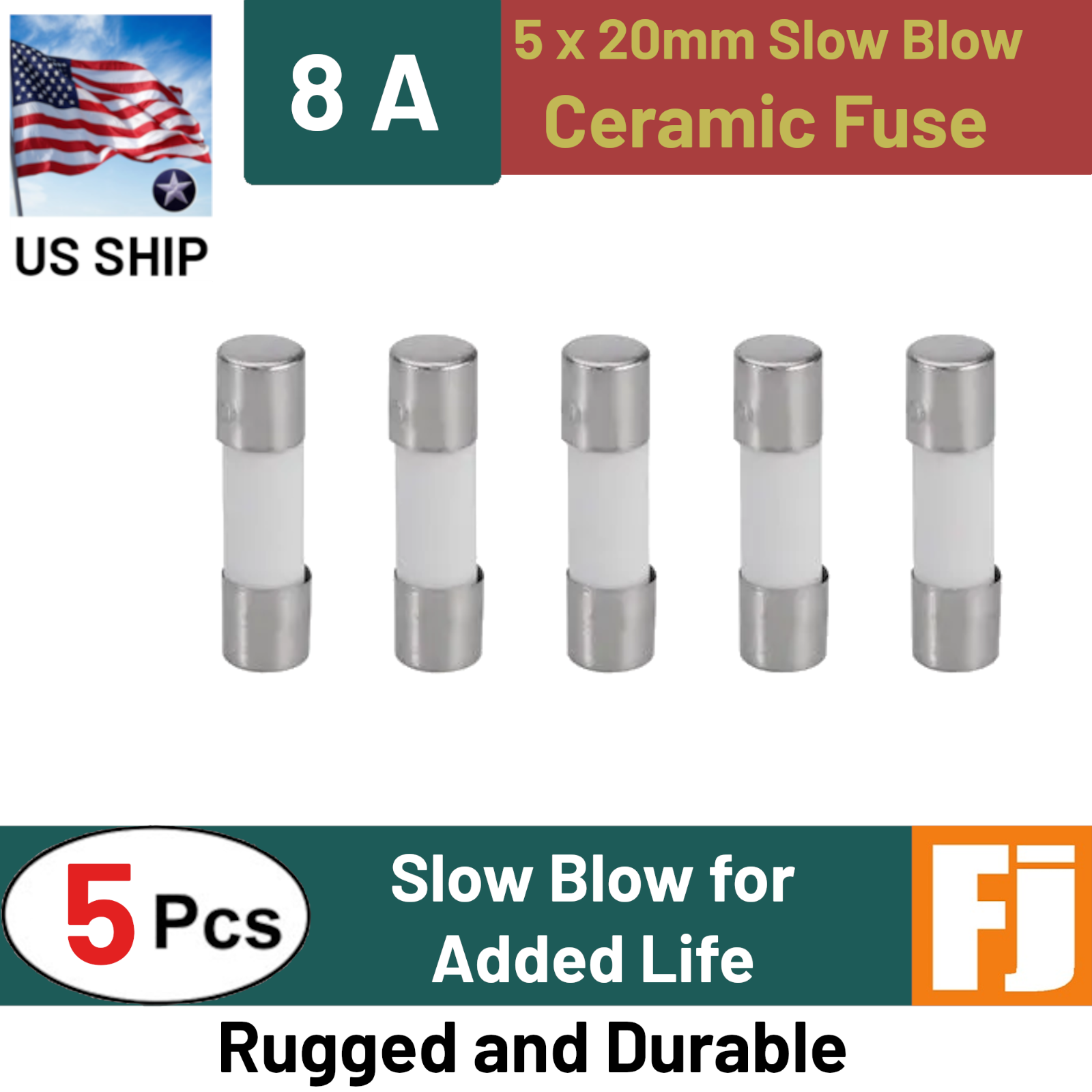

5 Pc Slow-Blow Ceramic Fuses, 8 A, 250 VAC
These 5 x 20 mm time-delay fuses are built with a ceramic tube and are rated for 8 A at 250 VAC. Suitable for primary circuit protection in electronic equipment and power supply applications where a slow-blow response is needed.
- Quantity: 5 fuses
- Fuse type: slow-blow / time-delay
- Body material: ceramic tube
- Size: 5 x 20 mm
- Rated voltage: 250 VAC
Shipping, returns, and payments
Product Details
This listing is for 5 ceramic slow-blow fuses in the 5 x 20 mm format. The fuses are rated 8 A and 250 VAC, with a time-delay response characteristic for overcurrent protection in electronic circuits and equipment.
The fuse body is ceramic. This product is described as AC-rated; no DC rating is provided in the supplied information.
Specifications
- Quantity: 5 pieces
- Fuse type: Slow-blow / time-delay
- Size: 5 x 20 mm
- Body material: Ceramic tube
- Rated current: 8 A
- Rated voltage: 250 VAC
- Interrupt capacity: High breaking capacity family; exact value depends on manufacturer family and part number
Features / Applications
- Suitable for primary protection in equipment and electronic circuits
- Commonly used in power supplies and adapters
- Time-delay characteristic helps accommodate short inrush currents
Specifications
| Maximum Voltage Drop | 100 mV |
|---|---|
| Operating Temperature Range | -55°C to +125°C |
| Approval Standards | UL, CSA, IEC |
| Material | Ceramic |
| Contact Material | Nickel Plated Brass |
| Quantity | 5 |
| Storage Humidity | 30% to 95% RH |
| Part Name | 5 Pcs Slow-Blow Fuse 8A 250V Ceramic Fuses 5 x 20 mm (8 Amp) |
| Vibration Resistance | Yes |
| Body Dimensions | 5 x 20 mm |
| Brand | Unbranded |
| Resistance | Low |
| Interrupt Capacity | 100 A |
| Fuse Type | Slow-Blow |
| Lead Free | Yes |
| Body Diameter | 5 mm |
| Response Characteristic | Time-Delay |
| RoHS Compliant | Yes |
| Body Color | White |
| Thermal Shock Resistance | Yes |
| Capacitance | 0.1 pF |
| Environmental Conditions | Indoor Use Only |
| Insulation Resistance | 100 MΩ minimum |
| Breaking Capacity | High breaking capacity family; manufacturer-specific values vary (e.g., Littelfuse 215 cartridge 8 A: 100 A @ 250 VAC; Schurter FST 8 A: 100 A; Eaton S505 8 A: 1500 A @ rated AC voltage) |
| Storage Temperature | -55°C to +125°C |
| Format / size | 5 mm x 20 mm |
| Fuse characteristic | Time-delay / slow-blow |
| Body / tube material | Ceramic tube |
| Rated current | 8 A |
| Rated voltage | 250 VAC |
| Rated voltage notation | AC specified; not DC-rated by the listing evidence |
| Admissible ambient temperature | -55 °C to +125 °C |
| Storage conditions | 0 °C to 60 °C, max. 70% r.h. |
| RoHS status | RoHS compliant / RoHS Pb HF FREE on Eaton S505; RoHS and REACH declared by Schurter; Littelfuse 215 is marked RoHS Pb |
| Endcap / terminal material | Copper alloy, nickel-plated (Schurter FST); Nickel-plated copper alloy (Schurter SSU reference family) |
| Body length | 20 mm nominal |
| Body diameter / width | 5.1 mm to 5.2 mm nominal body diameter depending on family |
| Endcap-to-endcap overall length | Approximately 21.5 mm overall, with family-specific tolerances |
| Lead diameter | 0.65±0.05 mm standard; >6.3 A ratings may use 0.8±0.05 mm lead, >12 A may use 1.2±0.05 mm lead |
| Product standards | IEC 60127-2 / 3; UL 248-14; CSA 22.2 No. 248.14 (Schurter FST family); IEC standard fuse language on Littelfuse 215 |
| Primary application | Primary protection in equipment / electronic circuits / power supplies-adapters |
Technical Datasheet
Download Technical Datasheet (PDF)
Technical data was assembled with AI-assisted research and could contain errors. Verify critical specifications against current manufacturer documentation.
