5 Pcs Slow-Blow Fuse 3A 250V Ceramic Fuses 5 x 20 mm (3 amp)
1 in stock
1 in stock
3A 250V Ceramic Slow-Blow Fuses
Enhance circuit protection with our 3A 250V Ceramic Slow-Blow Fuses, designed for reliability in high-demand electrical tasks. These fuses provide optimal safeguarding for your electrical systems.
- Voltage Rating: 250V
- Current Rating: 3A

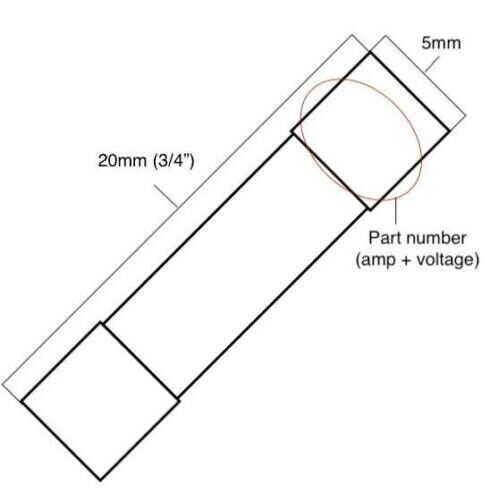

- Package Size: 5 x 20 mm
- Efficiency: High-Performance
- Ideal for: Over-current Protection
Secure your devices with these dependable fuses, perfect for enhancing system durability and safety.
Shipping, returns, and payments
5 Pcs Slow-Blow Fuse 3A 250V Ceramic Fuses 5 x 20 mm (3 amp) | US Ship
Product Details:
Enhance the safety of your electrical projects with these premium Slow-Blow Ceramic Fuses. Specifically designed for circuits operating at 3A and 250V, these fuses provide dependable overcurrent protection. Crafted from durable ceramic, they ensure superior performance and longevity in high-stress applications.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Current Rating: 3A (Amps)
- ✅ Voltage Rating: 250V (Volts)
- ✅ Size: 5 x 20 mm
- ✅ Type: Slow-Blow Ceramic Fuse
- ✅ Compliance: UL Listed
Features & Benefits:
- ✔️ Provides reliable overcurrent protection for sensitive circuits
- ✔️ Ceramic construction allows for higher temperature resistance and durability
- ✔️ Ideal for a wide range of electronic applications
- ✔️ Compact size facilitates easy installation in circuit boards
- ✔️ Suitable for applications including power supplies, electronic appliances, and industrial equipment
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| RoHS Compliant | Yes |
| Weight per Piece | 0.5 g |
| Storage Temperature Range | -55°C to +125°C |
| Country of Manufacture | China |
| Certification | UL Listed |
| Response Time | Slow-Blow |
| Time-Current Characteristic | Time Delay |
| Breaking Capacity | 35A at 250VAC |
| Voltage Drop | Max 100 mV |
| Insulation Resistance | 1,000 MΩ at 500V DC |
| Resistance to Soldering Heat | 260°C for 10 seconds |
| Operating Temperature Range | -55°C to +125°C |
| Lead-Free Status | Lead-Free |
| Product Type | Slow-Blow Fuse |
| Mounting Type | Holder |
| Interrupting Rating | 35A at 250VAC |
| Body Length | 20 mm |
| Body Diameter | 5 mm |
| Element Material | Tinned Copper |
| Body Material | Ceramic |
| Packaging | Bulk |
| Manufacturer | Generic |
| Fuse Size | 5 x 20 mm |
| Fuse Type | Ceramic |
| Voltage Rating | 250V |
| Current Rating | 3A |
| Quantity | 5 Pcs |
| Color | White |
