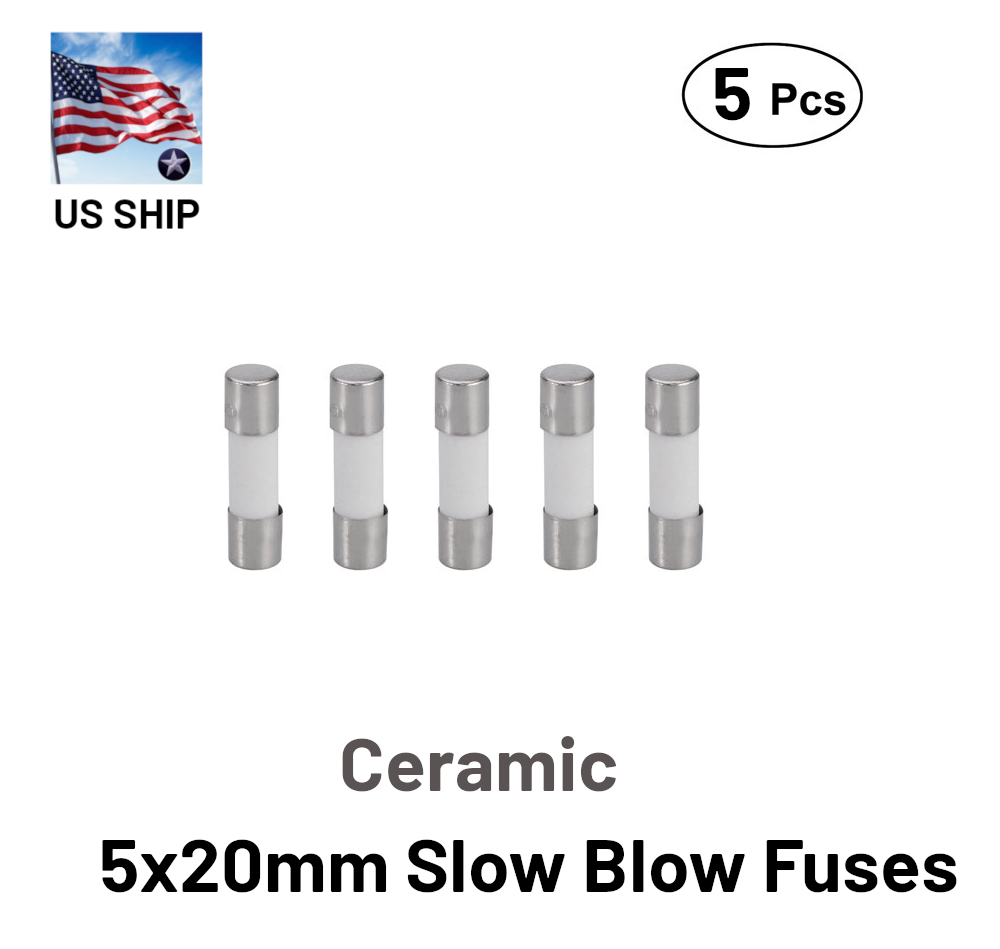

5 Pcs Slow-Blow Fuse 2A 250V Ceramic Fuses 5 x 20 mm (2 amp)
1 in stock
1 in stock

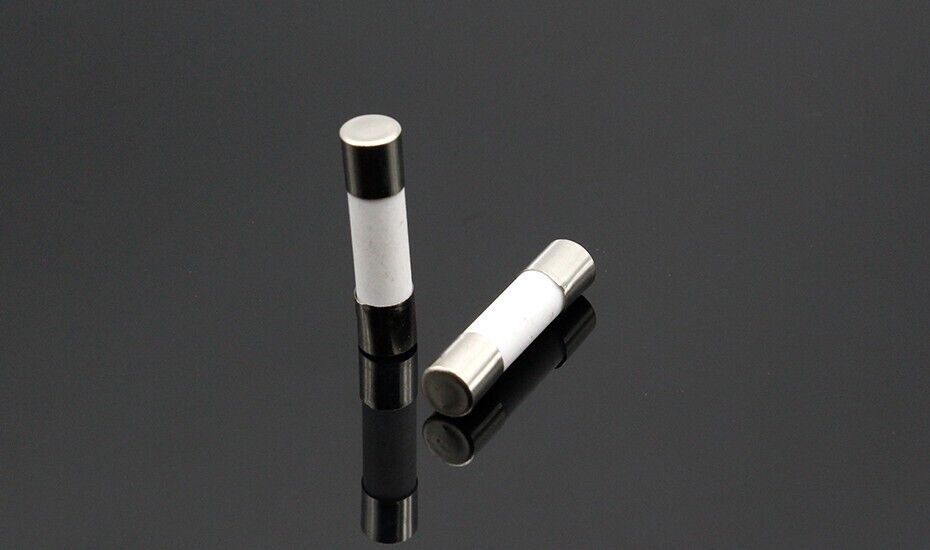

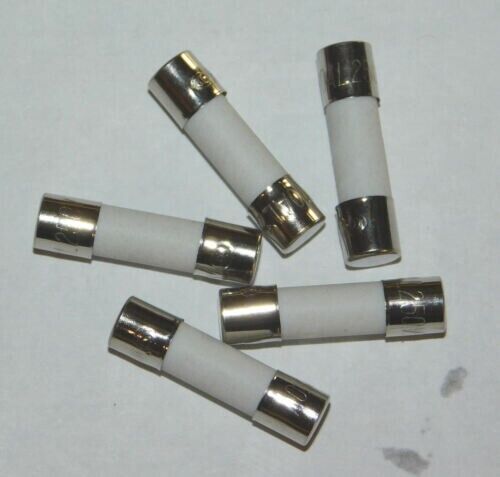

Slow-Blow 2A Ceramic Fuse Set
Ensure your circuits are safely protected with our premium set of 5 Slow-Blow Fuses. Designed for reliability and durability, these ceramic fuses operate at 2A and 250V, making them an ideal choice for various electrical applications.
- Rated Current: 2 Amperes
- Voltage Rating: 250 Volts
- Package Type: Ceramic; 5 x 20 mm
- High Efficiency: Reduces risk of short circuits
- Use Case: Ideal for voltage-sensitive applications
Elevate your electrical engineering projects by investing in a dependable solution that prioritizes safety and performance.
Shipping, returns, and payments
5 Pcs Slow-Blow Fuse 2A 250V Ceramic Fuses 5 x 20 mm (2 amp)
Product Details:
Ensure the safety of your electrical circuits with these high-quality Slow-Blow Fuses, designed to protect against overcurrent by temporarily allowing harmless short spikes. Perfect for use in various electrical engineering applications, these fuses effectively safeguard sensitive components, thus extending their lifespan.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Current Rating: 2A (Amps)
- ✅ Voltage Rating: 250V (Volts)

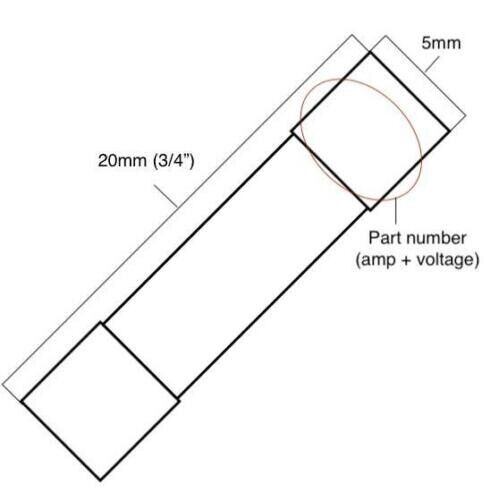

- ✅ Dimensions: 5 x 20 mm
- ✅ Type: Slow-Blow Fuse
- ✅ Material: Durable Ceramic
Features & Benefits:
- ✔️ Delays response to low-level surges, protecting components
- ✔️ Compact 5 x 20 mm size for versatile use
- ✔️ High durability with ceramic construction
- ✔️ Excellent protection for circuit boards and electrical devices
- ✔️ Ideal for use in power supplies, transformers, and motor controllers
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Part Number | Slow-Blow Fuse 2A 250V |
|---|---|
| Length | 20 mm |
| Packaging | Bulk |
| Humidity Range | Up to 95% RH |
| Storage Temperature | -40°C to 85°C |
| Standard | IEC 60127-2 |
| Time Delay | Yes |
| Resistance | Low |
| Manufacturer | Generic |
| Performance Characteristics | High inrush current withstand capability |
| End Caps Material | Nickel-plated brass |
| Color | White |
| Weight | 0.5 grams per piece |
| Thickness | 5 mm |
| Quantity | 5 Pcs |
| Lead-Free Status | Lead Free |
| RoHS Compliant | Yes |
| Approval Marks | UL Listed |
| Mounting Style | Axial |
| Breaking Capacity | 35A at 250V AC |
| Insulation Resistance | 100 Megaohms minimum |
| Interrupting Rating | 35A at 250V AC |
| Operating Temperature Range | -55°C to 125°C |
| Body Dimensions | 5 x 20 mm |
| Material | Ceramic |
| Voltage Rating | 250V |
| Current Rating | 2A |
| Fuse Type | Slow-Blow |
| Application | General Purpose |
