13A 250V 5x20mm Slow-Blow Ceramic Cartridge Fuses, Time-Delay, 5-Pack
1 in stock
1 in stock
13A 250V 5x20mm Slow-Blow Ceramic Fuse — 5-Pack
Five unbranded ceramic cartridge fuses with a 13A, 250V rating and slow-blow/time-delay characteristic for equipment requiring the same 5×20 mm fuse format.
- Current Rating: 13A
- Voltage Rating: 250V
- Fuse Type: Slow-Blow / Time-Delay
- Size: 5×20 mm
- Quantity: 5 Pcs
Shipping, returns, and payments
13A 250V Slow-Blow Ceramic Cartridge Fuses, 5x20mm Time-Delay, 5-Pack

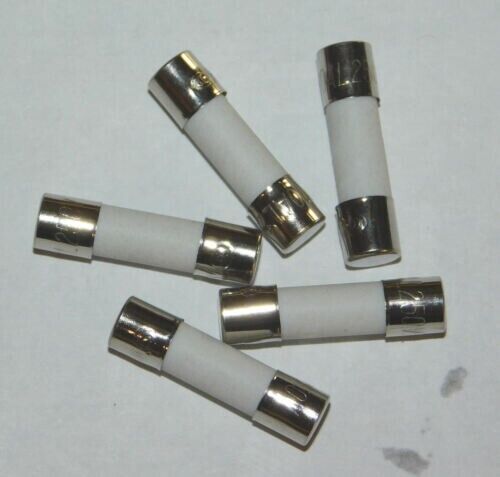

This 5-piece pack contains unbranded 13A, 250V slow-blow ceramic cartridge fuses in the compact 5×20 mm format. The time-delay characteristic is intended for circuits that experience normal startup or inrush pulses while still requiring overcurrent protection.
Use these fuses only where the equipment specification calls for the same current rating, voltage rating, 5×20 mm cartridge size, and slow-blow/time-delay response.
Specifications:
- ✅ Quantity: 5 Pcs
- ✅ Current Rating: 13A
- ✅ Voltage Rating: 250V
- ✅ Fuse Type: Slow-Blow
- ✅ Type: Ceramic Fuse

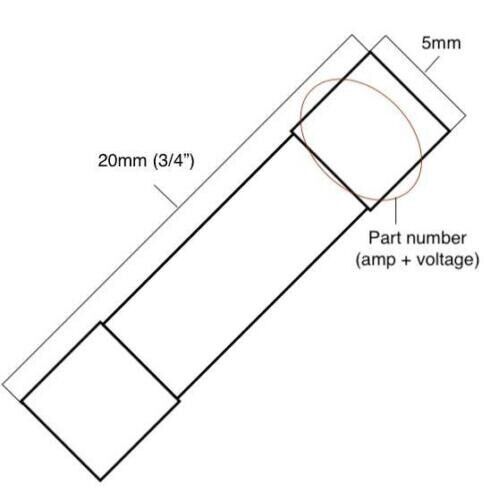

- ✅ Size: 5×20 mm
- ✅ Body Material: Ceramic
- ✅ Contact Material: Nickel-Plated Brass
- ✅ Breaking Capacity: 100A
- ✅ Operating Temperature Range: -55°C to +125°C
- ✅ Maximum Permissible Voltage Drop: < 100 mV
- ✅ Insulation Resistance: > 10,000 MΩ
- ✅ Maximum Time Delay: 15 s at 275% of Rated Current
- ✅ Melting Integral: Ignition I²t = 14.56 A²s
- ✅ Tolerance: ±10% Current Rating
Features & Benefits:
- ✔ Time-delay operation: Slow-blow behavior is intended to tolerate normal startup and inrush pulses better than a fast-acting fuse.
- ✔ Compact cartridge format: 5×20 mm size fits equipment designed for this miniature fuse format.

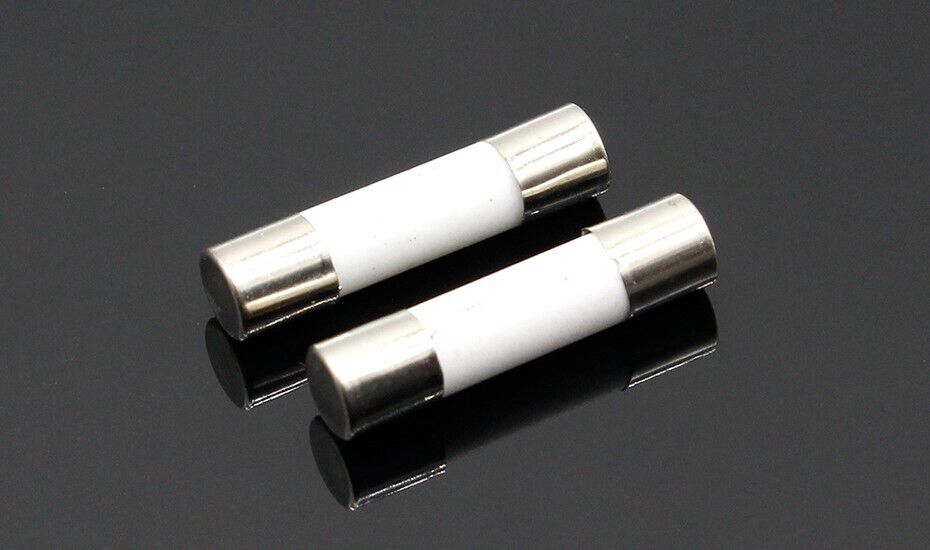

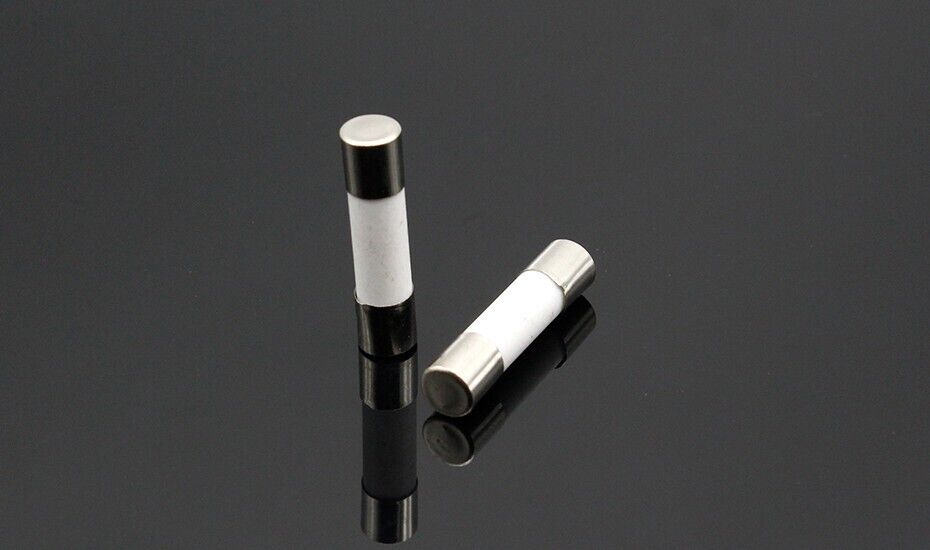

- ✔ Ceramic construction: White ceramic bodies with metal end caps provide the listed cartridge construction.
- ✔ Replacement-ready pack: Five matching fuses provide multiple pieces of the same listed rating and format.
- ✔ Installation: Intended for a suitable 5×20 mm fuse holder, block, or clip.
Specifications
| Country of Manufacture | China |
|---|---|
| Brand | Unbranded |
| Catalog Number | F13A250V5PC |
| Type | Ceramic Fuse |
| Fuse Type | Slow-Blow |
| Current Rating | 13A |
| Voltage Rating | 250V |
| Size | 5x20 mm |
| Quantity | 5 Pcs |
| Body Material | Ceramic |
| Contact Material | Nickel-Plated Brass |
| Color | White |
| Package Type | Bulk |
| Operating Temperature Range | -55°C to +125°C |
| Breaking Capacity | 100A |
| Maximum Permissible Voltage Drop | < 100 mV |
| Insulation Resistance | > 10,000 MΩ |
| Maximum Time Delay | 15 s at 275% of Rated Current |
| Melting Integral | Ignition I²t = 14.56 A²s |
| Tolerance | ±10% Current Rating |
| Weight Per Piece | 0.6 g |
| Standards | IEC 60127-2 |
| RoHS Compliant | Yes |
| Lead-Free | Yes |
| UL Listed | Yes |
| CSA Certified | Yes |
| Applications | Circuit protection in household appliances; industrial appliances/equipment; electronic devices |
| Operational Notes | Slow-blow/time-delay characteristic is intended to tolerate normal startup/inrush pulses while protecting against prolonged overloads; verify time-current suitability for the circuit. |
| Mounting / Installation Form | Cartridge fuse for use in a suitable 5x20 mm fuse holder, block, or clip |
