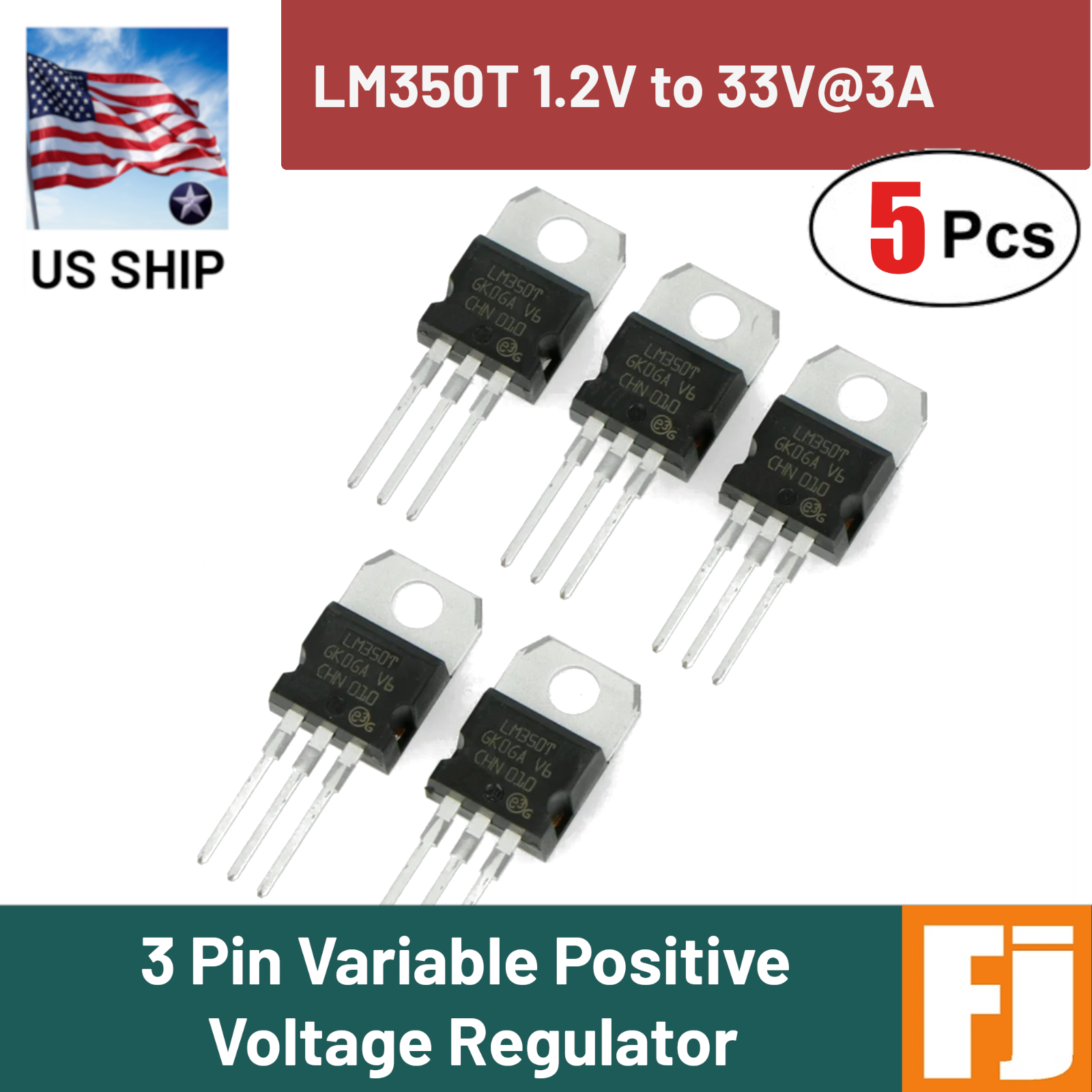

5 PCS LM350T | 3 Pin Vari-Voltage Regulator | 1.2 to 33V 3A TO-220
Out of stock
Out of stock
5 PCS LM350T Vari-Voltage Reg.
Discover the precision and reliability of our LM350T 3-Pin Vari-Voltage Regulators, perfect for your dynamic voltage regulation needs ranging from 1.2V to 33V with a robust 3A output. Ideal for professional projects and rapid prototyping alike.
- Voltage Range: 1.2V to 33V
- Output Current: Up to 3A
- Package Type: TO-220
- High Efficiency Adjustability
- Applications: Power Supply, Battery Chargers
Seal your purchase now and enhance your circuitry with these reliable regulators, crucial for stable power supply systems and diverse electronic applications.
Shipping, returns, and payments
5 PCS LM350T | 3 Pin Vari-Voltage Regulator | 1.2 to 33V 3A TO-220 | US Ship
Product Details:
Optimize your power management designs with the premium LM350T voltage regulator. This versatile device provides variable voltage regulation for a wide range of electronics projects, featuring precise adjustment from 1.2V to 33V. Perfect for hobbyists and professionals, the LM350T ensures stable output, making it ideal for sensitive electronics.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Output Voltage: 1.2V to 33V
- ✅ Current Output: 3A
- ✅ Package: TO-220
- ✅ Type: Linear Voltage Regulator
- ✅ Operating Temperature: -55°C to +150°C
- ✅ Application: Voltage regulation for power supplies, battery chargers, and more
Features & Benefits:
- ✔️ Efficient regulation with a wide voltage range
- ✔️ High power output suitable for demanding applications
- ✔️ Durable TO-220 package for robust performance
- ✔️ High thermal stability and current protection
- ✔️ Ideal for circuit designers and DIY enthusiasts
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Connection Type | Through Hole |
| Country of Origin | USA |
| Line Transient Response | 25μs (typ) |
| Load Transient Response | 50μs (typ) |
| Control Features | Adjustable Output Voltage |
| Maximum Power Dissipation | 25W |
| ESR Stability | Stable with Low ESR Capacitors |
| Lead Free Status | RoHS Compliant |
| Storage Temperature Range | -65°C to +150°C |
| Thermal Resistance | Junction to Case 3°C/W |
| Mounting Style | Through Hole |
| Output Short Circuit Current | Current Limiting |
| Part Number | LM350T |
| Output Ripple Rejection | 80 dB (typ) |
| Output Noise Voltage | 0.003% of Vout |
| Quiescent Current | 5.5 mA (typ) |
| Line Regulation | 0.01% (typ) |
| Load Regulation | 0.1% (typ) |
| Dropout Voltage | 2V (typ) |
| Input Voltage Range | 4.25V to 35V |
| Operating Temperature Range | -40°C to +125°C |
| Number of Pins | 3 |
| Package Type | TO-220 |
| Current Output | 3A |
| Voltage Output Range | 1.2 to 33V |
| Description | 3 Pin Vari-Voltage Regulator |
| Quantity per Package | 5 |
