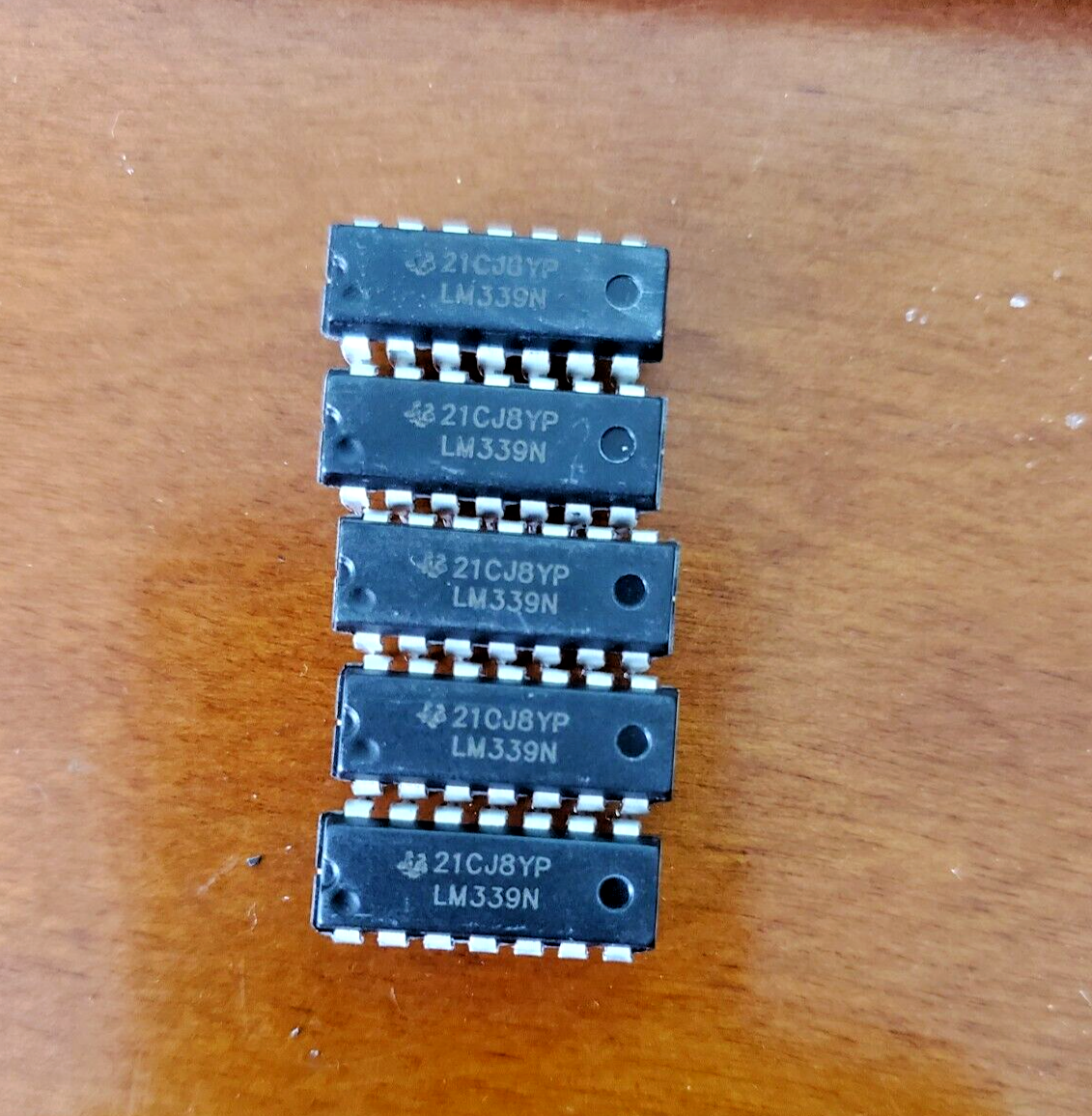

5 Pcs LM339N IC LOW POWER Quad Voltage Comparator DIP14
2 in stock
2 in stock
LM339N Quad Comparator IC
Discover the efficiency of our LM339N Quad Voltage Comparator, perfect for precise voltage measurement applications. Designed for electrical engineers, this IC ensures optimal performance with minimal power consumption.
- Supply Voltage: 2V to 36V
- Low Quiescent Current: 0.8mA
- Package Type: DIP14
- High Efficiency for Low-Power Devices
- Ideal for Signal Processing
Enhance your projects with reliable, precise voltage comparisons—ideal for a range of engineering applications. Order now for fast US shipping.
Shipping, returns, and payments
5 Pcs LM339N IC LOW POWER Quad Voltage Comparator DIP14 US Ship
Product Details:
Enhance your projects with the LM339N IC LOW POWER Quad Voltage Comparator, designed for precision voltage comparison in electrical and electronic applications. This low-power IC is perfect for implementing voltage-driven operations in various circuits, ensuring high performance and reliability.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Type: Quad Voltage Comparator
- ✅ Package: DIP14
- ✅ Operating Voltage: 2V to 36V
- ✅ Input Offset Voltage: 1mV typical
- ✅ Input Bias Current: 250nA typical
- ✅ Operating Temperature: -40°C to +85°C
- ✅ Shipping: US Stock
Features & Benefits:
- ✔️ Low power consumption for efficient operation
- ✔️ Wide supply voltage range for versatility
- ✔️ High precision with stable performance
- ✔️ Compact DIP14 package for easy PCB integration
- ✔️ Ideal for signal processing, sensor interfacing, and control systems
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Maximum Input Voltage | 36V |
| Length | 19.3 mm |
| Height | 4.57 mm |
| Width | 7.62 mm |
| Body Material | Plastic |
| Pin Count | 14 |
| Applications | Level Shifter, Square Wave Generator |
| Features | Directly interfaces to CMOS, TTL |
| Part Number Alias | LM339N |
| Manufacturer | Texas Instruments |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Output Type | Open Collector |
| Maximum Input Bias Current | 250 nA |
| Name | Value |
| Propagation Delay | 300 ns |
| Product Title | 5 Pcs LM339N IC LOW POWER Quad Voltage Comparator DIP14 US Ship |
| IC Type | Quad Voltage Comparator |
| Number of Comparators | 4 |
| Operating Voltage | 2V to 36V |
| Supply Current Max | 1 mA |
| Input Offset Voltage | 3 mV |
| Comparators Type | Low-Power |
| Storage Temperature Range | -65°C to 150°C |
| Package Type | DIP-14 |
| Temperature Range | 0°C to 70°C |
| Lead Finish | Sn |
| Pd - Power Dissipation | 660 mW |
| Common Mode Rejection Ratio | 70 dB |
| Operating Temperature Range | 0°C to 70°C |
