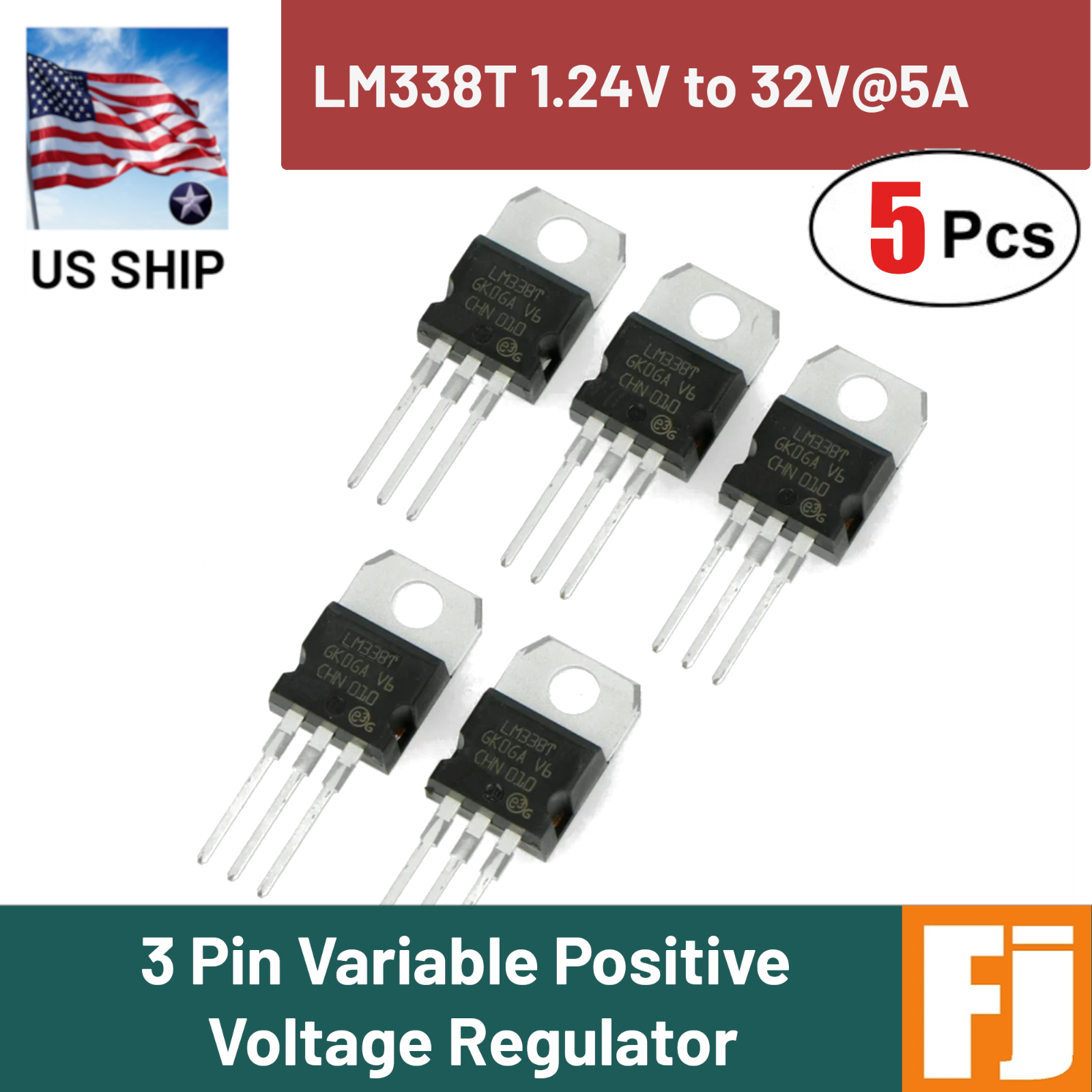

5 PCS LM338T | 3 Pin Vari-Voltage Regulator | 1.24 to 32V 5A TO-220
Out of stock
Out of stock
5 PCS LM338T Voltage Regulator
The LM338T is a robust, variable-output voltage regulator ideal for high-current and precision applications. Sold in packs of 5, it ensures stable power delivery from 1.24 to 32V with a maximum current of 5A.
- Adjustable Output Voltage: 1.24 to 32V
- Maximum Output Current: 5A

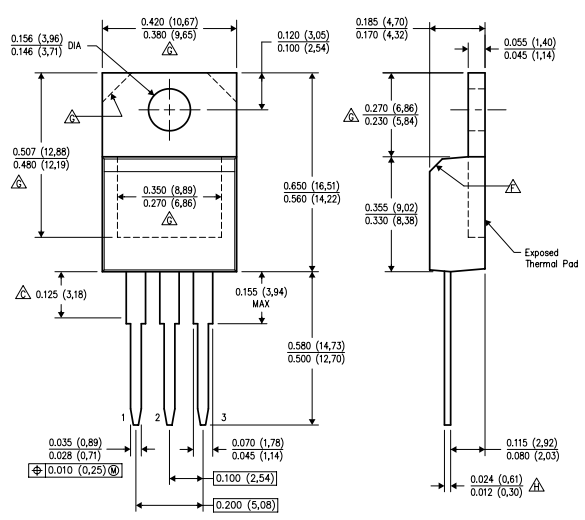

- Package Type: TO-220
- High Efficiency Voltage Regulation
- Perfect for Laboratory Power Supplies
Enhance your electronics projects with reliable voltage control—order the LM338T regulators today!
Shipping, returns, and payments
5 PCS LM338T | 3 Pin Vari-Voltage Regulator | 1.24 to 32V 5A TO-220 | US Ship
Product Details:
Optimize your power supply designs with the reliable LM338T Vari-Voltage Regulators. These versatile 3-pin TO-220 components deliver precise voltage regulation across a wide range, making them ideal for custom electrical engineering projects requiring robustness and adaptability in voltage management.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Output Voltage Range: 1.24V to 32V
- ✅ Current Output: Up to 5A
- ✅ Package Type: TO-220
- ✅ Thermal Protection: Yes
- ✅ Short-Circuit Protection: Yes
Features & Benefits:
- ✔️ Generates stable voltages for precise applications
- ✔️ Reliable performance with thermal and short-circuit protection
- ✔️ Suitable for voltage regulation in power supplies and adjustable regulators
- ✔️ Simple to install with a 3-pin configuration
- ✔️ Ideal for laboratory, prototype and industrial applications
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Part Number | LM338T |
|---|---|
| Moisture Sensitivity Level | Not applicable |
| Mounting Style | Through Hole |
| Control Pin Compatibility | Standard Linear Regulator |
| Dc Thermal Resistance | 3°C/W |
| Operating Junction Temperature | -55°C to +150°C |
| Regulation Tolerance | 1% |
| Dropout Voltage, Constant Voltage Mode | Standard 3V |
| Ripple Rejection | Typically 80dB |
| Load Transient Response | 50mV at 5A step current |
| Capacitor Input (if needed) | 0.1uF |
| Capacitor Bypass (if needed) | 10uF |
| Short Circuit Current | About 12A |
| Manufacturer | Texas Instruments |
| Current Limit | Current limiting and thermal shutdown protection |
| Description | 3 Pin Variable Voltage Regulator |
| Thermal Resistance Junction to Case | 4°C/W |
| Reference Voltage | 1.24V |
| Typical Dropout Voltage | 3V at 5A |
| Pin Count | 3 |
| Minimum Input to Output Voltage Differential | 3V |
| Operating Temperature Range | 0°C to 125°C |
| Load Regulation | 0.3% |
| Line Regulation | 0.01%/V |
| Nominal Output Voltage | Adjustable |
| Package Type | TO-220 |
| Output Current | 5A |
| Output Voltage Range | 1.24V to 32V |
| Quantity | 5 PCS |
