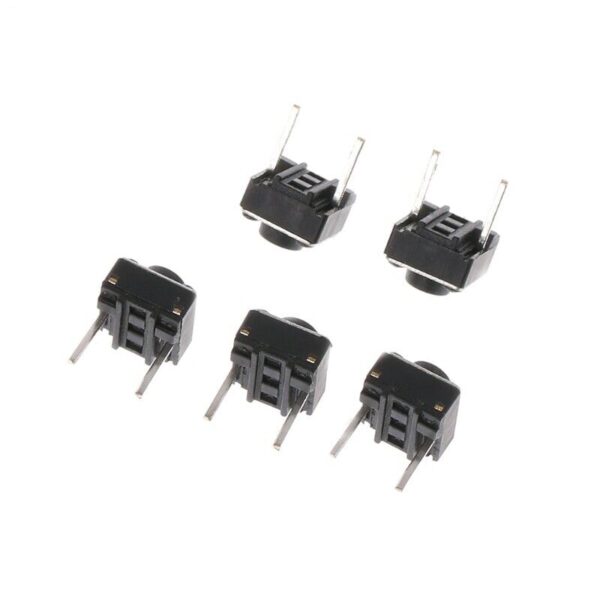

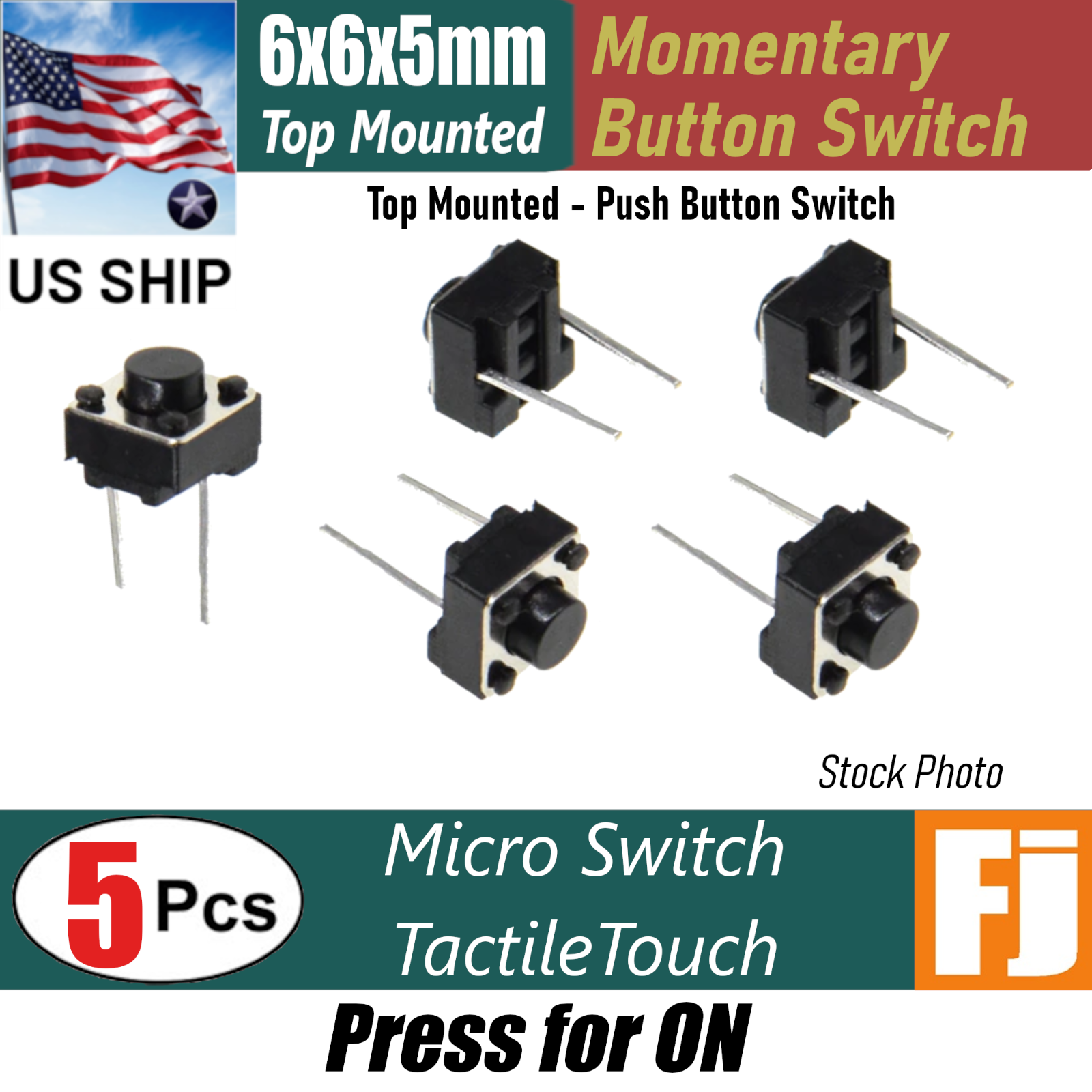

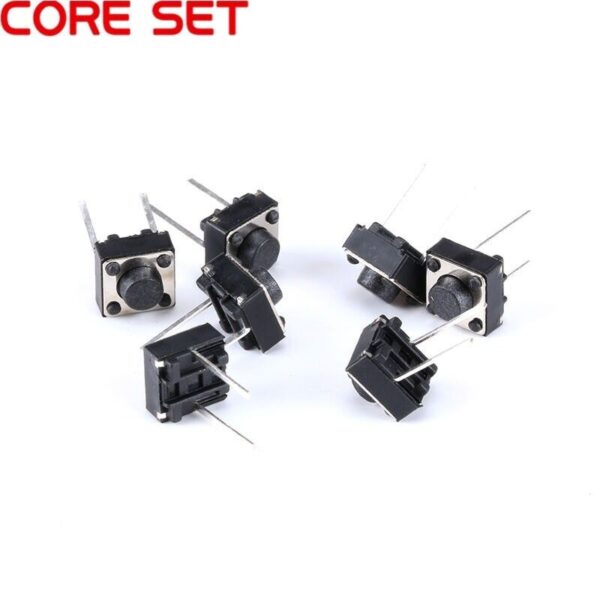

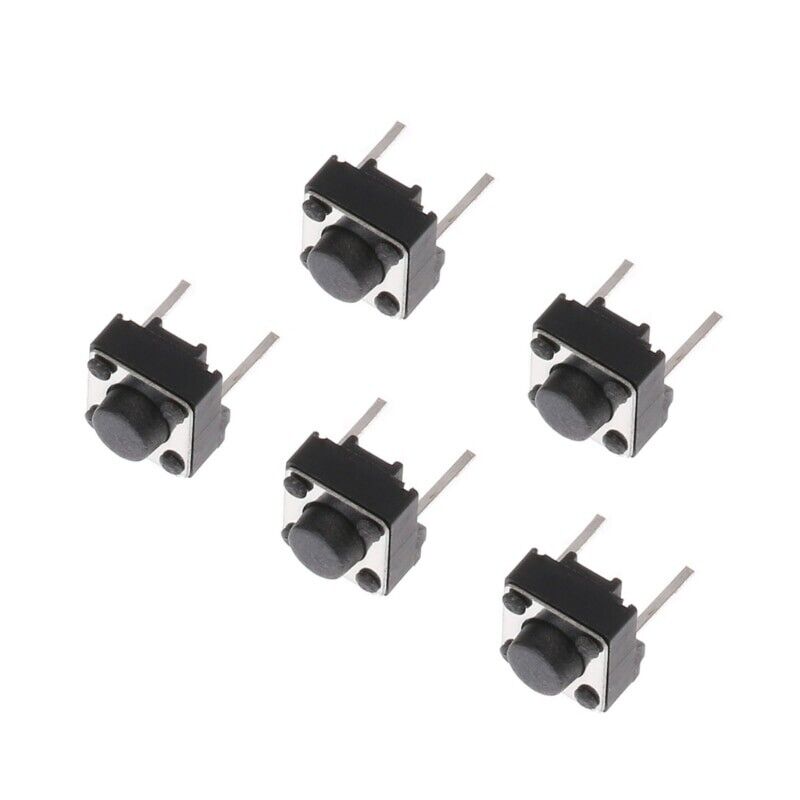

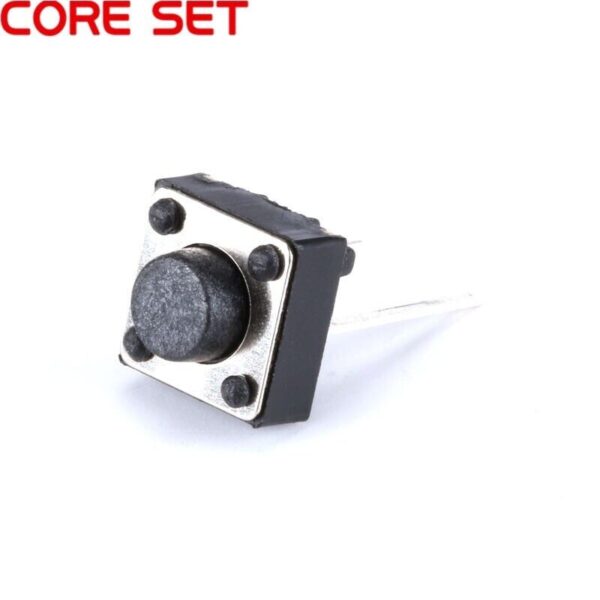

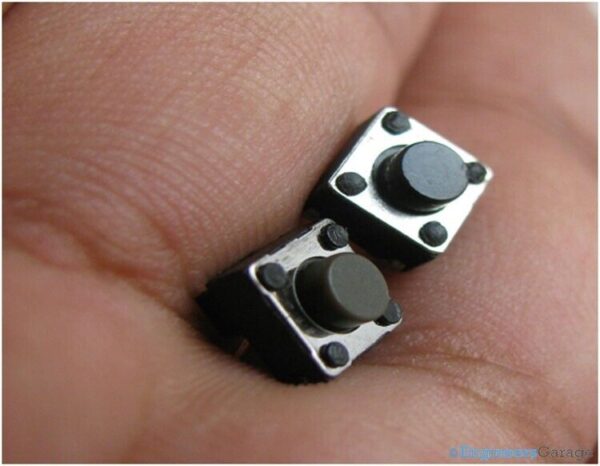

5 Pcs 6x6x5 2 Pin Momentary Tactile Push Button Switch | Top Mounted
7 in stock
7 in stock
Introducing our premium 5-pack of 6x6x5 2-pin momentary tactile push button switches, designed to provide reliable and precise control in a variety of electronic applications.
- Voltage Rating: Up to 50V DC
- Current Rating: Up to 0.05A
- Package Type: Top Mounted
- Efficiency: High durability with over 100,000 cycles
- Use Case: Ideal for PCB design, prototyping, and repairs
Perfect for engineers seeking reliable switch solutions for their projects—purchase now and enhance your designs!
Shipping, returns, and payments
5 Pcs 6x6x5 2 Pin Momentary Tactile Push Button Switch | Top Mounted | US Ship
Product Details:
Enhance your projects with these premium tactile push button switches, ideal for a variety of applications in electronic design and prototyping. These momentary switches provide reliable operation, a compact 6x6x5 mm form factor, and are easy to integrate into both breadboards and PCBs.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Dimensions: 6x6x5 mm
- ✅ Pin Count: 2 Pins
- ✅ Type: Momentary Tactile Push Button
- ✅ Mounting: Top Mounted
- ✅ Shipping: Fast US Shipping
Features & Benefits:
- ✔️ Compact design allows for space-saving configurations
- ✔️ High precision with tactile feedback for user-friendly operation
- ✔️ Durable construction ensures long-lasting performance
- ✔️ Versatile use in prototyping, DIY projects, and commercial electronics
- ✔️ Quick shipping enhances project timelines for US-based users
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Contact Plating | Silver |
| Halogen-Free | Yes |
| RoHS Compliant | Yes |
| Lead-Free | Yes |
| Agency Approvals | None |
| Reverse Mounting | No |
| Soldering Temperature | 260°C for 10 sec |
| Soldering Method | Reflow Soldering |
| Button Color | Black |
| Button Shape | Round |
| Storage Temperature Range | -40°C to 85°C |
| Operating Temperature Range | -20°C to 70°C |
| Maximum Current | 50 mA |
| Maximum Voltage | 12 VDC |
| Pin Material | Phosphor Bronze |
| Product Name | 5 Pcs 6x6x5 2 Pin Momentary Tactile Push Button Switch |
| Housing Material | Polyamide (PA) |
| Travel Distance | 0.25 ± 0.1 mm |
| Operating Force | 160 ± 50 gf |
| Dielectric Strength | 250 VAC for 1 minute |
| Insulation Resistance | >100 MΩ |
| Actuator Type | Tactile |
| Switch Size | 6x6x5 mm |
| Switch Type | Momentary |
| Number of Pins | 2 |
| Mounting Type | Top Mounted |
| ESD Protection | No |
