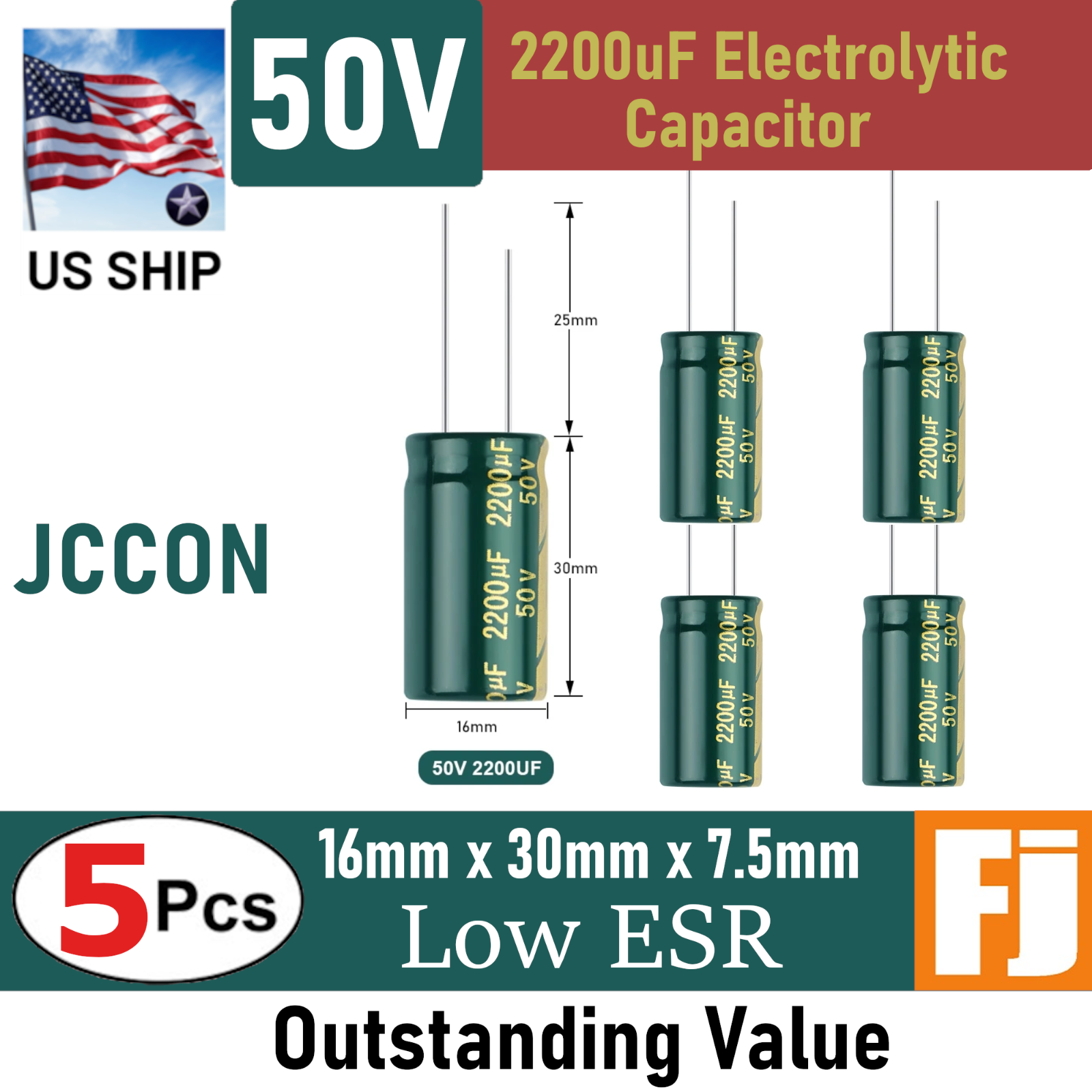

5 Pcs 50V 2200uF | 16x30mm | JCCON Low ESR Electrolytic Capacitor
Out of stock
Out of stock
50V 2200uF Capacitor Pack
Optimize your engineering projects with our high-performance JCCON Low ESR Electrolytic Capacitors. Engineered for reliability, these capacitors are ideal for various demanding electrical applications.
- Voltage Rating: 50V
- Capacitance: 2200uF
- Dimensions: 16x30mm
- Low ESR for Increased Efficiency
- Suitable for Power Supply and Filtering Applications
Order now for quick U.S. shipping and enhance your circuitry with robust, efficient components tailor-made for excellence in electrical engineering.
Shipping, returns, and payments
5 Pcs 50V 2200uF | 16x30mm | JCCON Low ESR Electrolytic Capacitor | US Ship
Product Details:
Enhance your electronic projects with high-performance 50V 2200uF electrolytic capacitors by JCCON. These capacitors are designed with low ESR (Equivalent Series Resistance), making them ideal for power applications and decoupling purposes in various circuits. Ensure reliable power supply stability and reduce power loss with this essential component for your engineering needs.
Specifications:
- ✅ Quantity: 5 Pieces
- ✅ Capacitance: 2200uF
- ✅ Voltage Rating: 50V
- ✅ Dimensions: 16x30mm
- ✅ Type: Low ESR Electrolytic Capacitor
- ✅ Temperature Range: -40°C to +105°C
Features & Benefits:
- ✔️ Low ESR for reduced power loss and improved efficiency
- ✔️ Compact design suitable for tight spaces
- ✔️ Robust and reliable for extended life applications
- ✔️ Perfect for smoothing, filtering, and decoupling in power supply circuits
- ✔️ Ships from the US for fast delivery
© 2025 Fahmah Jackson LLC. All Rights Reserved.

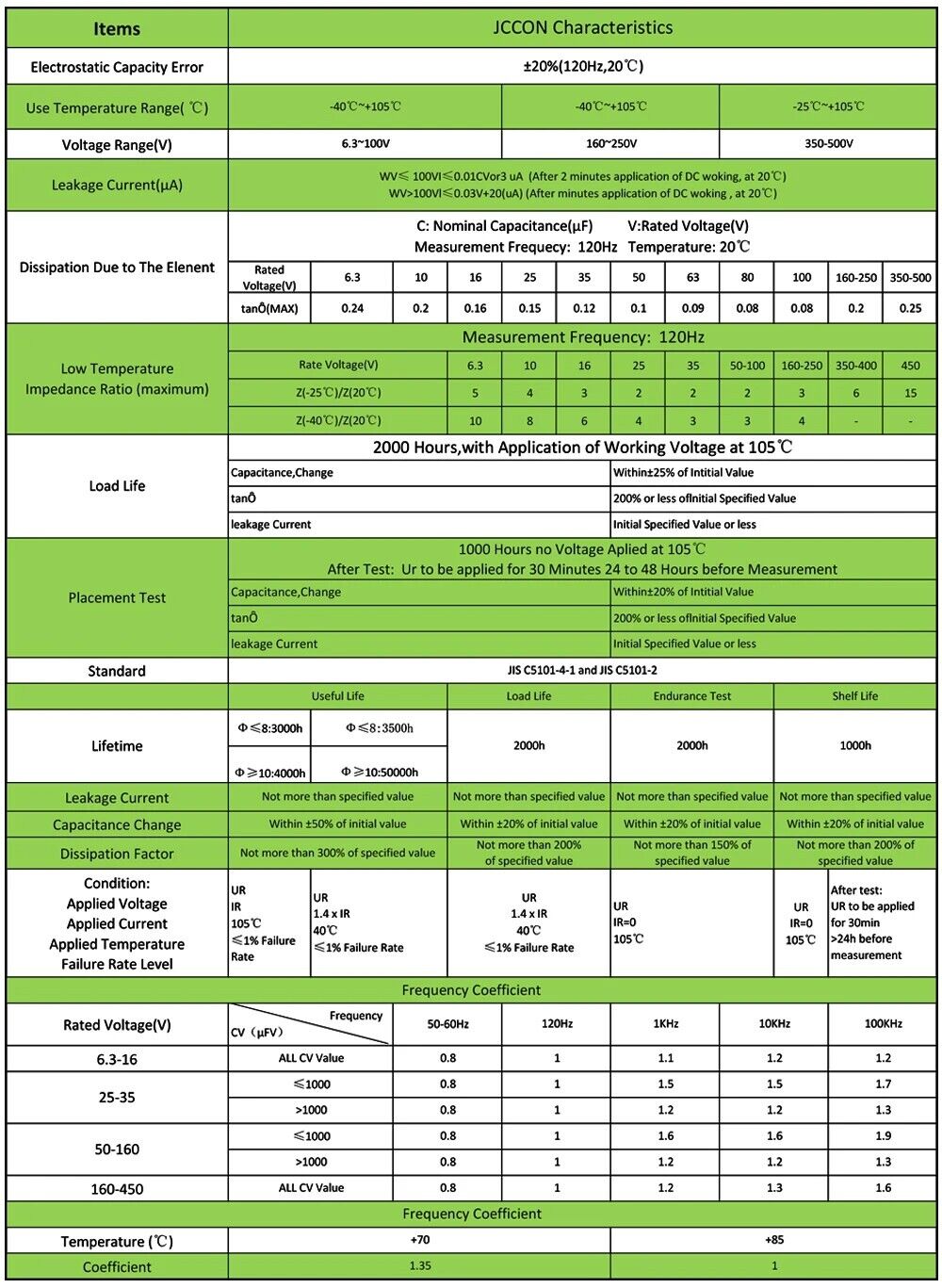

Specifications
| Brand | JCCON |
|---|---|
| Dissipation Factor | 0.15 |
| Packaging | Bulk |
| Application | General Purpose |
| Manufacturer Part Number | 2200uF50V-JCCON |
| Product Code | JCCON-2200uF-50V |
| Temperature Coefficient | N/A |
| Manufacturing Country | China |
| Shipment Origin | US |
| Dielectric Material | Aluminum Electrolytic |
| RoHS Compliant | Yes |
| Series | JCCON Standard |
| Polarized | Yes |
| Mounting Style | Through Hole |
| Component Type | Electrolytic Capacitor |
| Weight | Approximately 6 g each |
| Shelf Life | 2000 hours at 105°C |
| Insulation Resistance | 1000 Ohm-Farad |
| Case Shape | Cylindrical |
| Lead Type | Radial |
| Ripple Current | 2.12 A |
| Tolerance | ±20% |
| Operating Temperature Range | -40°C to +105°C |
| Equivalent Series Resistance (ESR) | Low |
| Dimensions | 16x30mm |
| Quantity | 5 Pcs |
| Voltage Rating | 50V |
| Capacitance | 2200uF |
| Lifecycle Status | Active |
