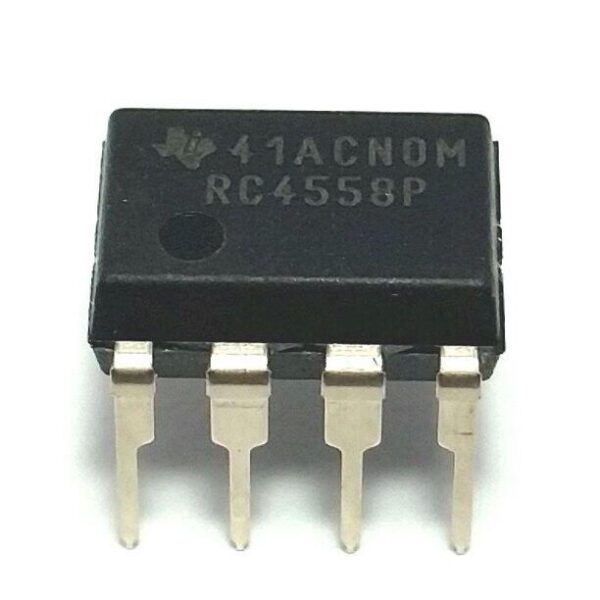

4x | RC4558P 4558 Dual Operational Amplifier DIP-8 | FAST
Out of stock
Out of stock
RC4558P Dual Op Amp | 4 PCS
Discover unparalleled performance with the RC4558P Dual Operational Amplifier, designed for precision and reliability in your electronics projects.
- Voltage Supply: ±5V to ±15V
- Output Current: 20mA
- Package Type: DIP-8
- High Slew Rate: 1V/μs
- Ideal Use: Audio & Signal Processing
Enhance your circuit designs with the RC4558P—perfect for audio applications and signal processing tasks. Order now to optimize performance!
Shipping, returns, and payments
4 Pieces | RC4558P 4558 Dual Operational Amplifier DIP-8 | FAST US Ship
Product Details:
Enhance your electronic projects with the RC4558P Dual Operational Amplifier, expertly crafted for superior performance in diverse applications. This integrated circuit is ideal for signal amplification in audio devices, precision circuits, and control systems.
Specifications:
- ✅ Quantity: 4 Pieces
- ✅ Model: RC4558P
- ✅ Package Type: DIP-8
- ✅ Supply Voltage: ±15V
- ✅ Slew Rate: 1V/µs
- ✅ Input Offset Voltage: 2mV
- ✅ Application: Audio amplification, signal processing, and control systems
Features & Benefits:
- ✔️ Dual op-amp configuration for versatile use
- ✔️ DIP-8 package for easy integration into PCB designs
- ✔️ Low power consumption for energy-efficient solutions
- ✔️ High gain bandwidth for precise signal amplification
- ✔️ Fast shipping from US stock ensures minimal downtime
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Frequency Compensation | Internal |

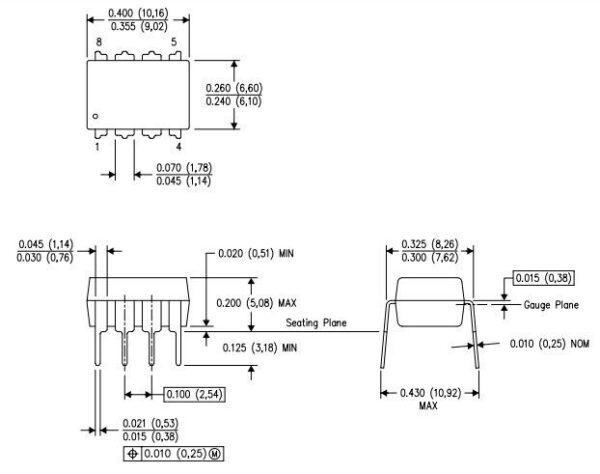

| Dimensions | 9.6mm x 6.35mm x 4.57mm |
| Weight | 1 g |
| Mounting Type | Through Hole |
| RoHS Status | Compliant |
| Pin Count | 8 |
| Voltage Gain | 100 dB |
| Current - Input Bias | 500 nA |
| Non-Inverting Input | Yes |
| Inverting Input | Yes |
| Rail to Rail | No |
| Supply Current | 3 mA |
| Output Type | Dual |
| Product Name | RC4558P 4558 Dual Operational Amplifier DIP-8 |
| Amplifier Type | General Purpose |
| Voltage - Output Swing | 14 V |
| Current - Output | 20 mA |
| Voltage - Input Offset | 5 mV |
| Power Supply Rejection Ratio | 100 dB |
| Common Mode Rejection Ratio | 70 dB |
| Operating Temperature Range | 0°C to +70°C |
| Gain Bandwidth Product | 3 MHz |
| Slew Rate | 1.7 V/µs |
| Input Offset Voltage | 1 mV |
| Supply Voltage - Min | 4 V |
| Supply Voltage - Max | 18 V |
| Number of Channels | 2 |
| Package Type | DIP-8 |
| Unit Price | $0.50 |
