4 Pcs Fast-Blow Fuse 5A 250V Glass Fuses 6 x 30 mm (5 amp)
24 in stock
24 in stock
4 Pcs Fast-Blow Fuse 5A 250V
Discover enhanced circuit protection with our 4 Pcs Fast-Blow Fuse 5A 250V. Designed for optimal performance in various electrical applications, these glass fuses provide reliable overcurrent protection for your equipment.
- Voltage Rating: 250V
- Current Rating: 5 Amps
- Package Type: Glass Tube
- Fuse Speed: Fast-Blow

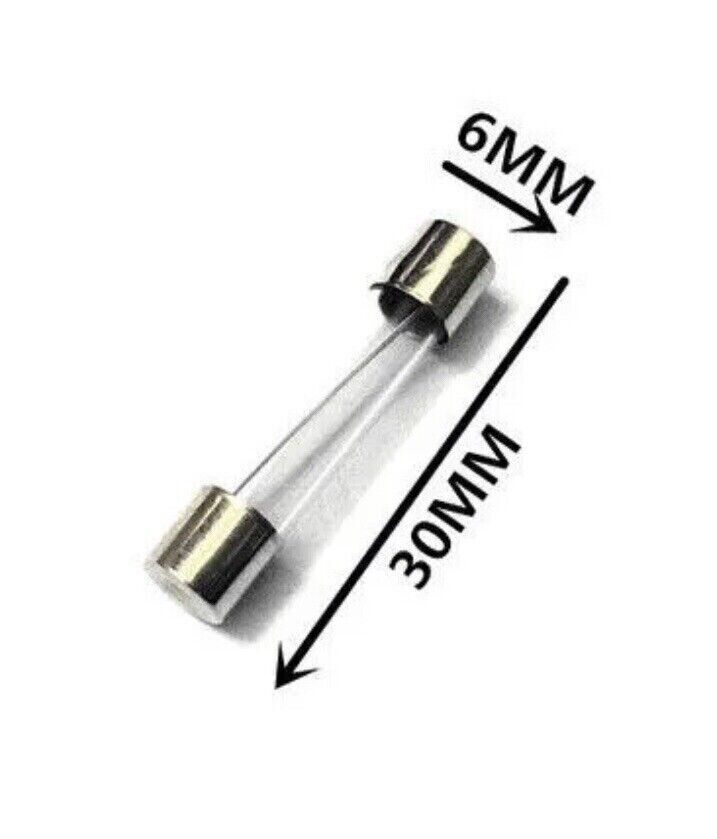

- Size: 6 x 30 mm
Invest in these high-quality fuses, perfect for safeguarding home appliances, electronic projects, or industrial equipment. Order now for dependable circuit protection.
Shipping, returns, and payments
4 Pcs Fast-Blow Fuse 5A 250V Glass Fuses 6 x 30 mm (5 amp) | US Ship
Product Details:
Ensure maximum circuit protection with this set of high-quality fast-blow fuses. These fuses provide rapid circuit interruption and are ideal for safeguarding your electrical devices against overcurrent conditions.
Specifications:
- ✅ Quantity: 4 Pieces
- ✅ Current Rating: 5A (Amperes)
- ✅ Voltage Rating: 250V
- ✅ Size: 6 x 30 mm
- ✅ Type: Fast-Blow Glass Fuse
- ✅ Compliance: RoHS compliant
- ✅ Application: Suitable for electronic equipment, power supplies, and industrial machinery
Features & Benefits:
- ✔️ Provides quick response to overcurrent events
- ✔️ Durable glass construction for reliability
- ✔️ Compact size for versatile use
- ✔️ Easy installation with standard fitting
- ✔️ Ideal for protecting sensitive components and circuits
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Generic |
|---|---|
| RoHS Compliant | Yes |
| Dielectric Strength | 1500V AC RMS per UL 248 |
| Humidity Range | Up to 95% RH non-condensing |
| Vibration Resistance | 10-2000 Hz at 15 G |
| Shock Resistance | 100 G |
| Storage Temperature Range | -40°C to +85°C |
| Voltage Drop | less than or equal to 100mV |
| Weight Per Piece | 4g |
| Country of Origin | USA |
| Standards Compliance | IEC 60269-1 |
| Average Time Current Characteristic | F2 |
| UL Listed | Yes |
| End Cap Material | Nickel-plated brass |
| Product Name | 4 Pcs Fast-Blow Fuse 5A 250V Glass Fuses 6 x 30 mm (5 amp) |
| Body Length | 30 mm |
| Body Diameter | 6 mm |
| Mounting Style | Holder |
| Response Time | Fast |
| Operating Temperature Range | -55°C to +125°C |
| Insulation Resistance | greater than 100 MΩ |
| Breaking Capacity | 35A at 250V AC |
| Package Type | Bulk |
| Material | Glass |
| Fuse Size | 6 x 30 mm |
| Fuse Voltage Rating | 250V |
| Fuse Current Rating | 5A |
| Quantity | 4 |
| Type | Fast-Blow |
| Lead Free | Yes |
