2 Pieces | 6.000 MHz | HC-49S | Crystal Oscillator Arduino Raspberry
1 in stock
1 in stock

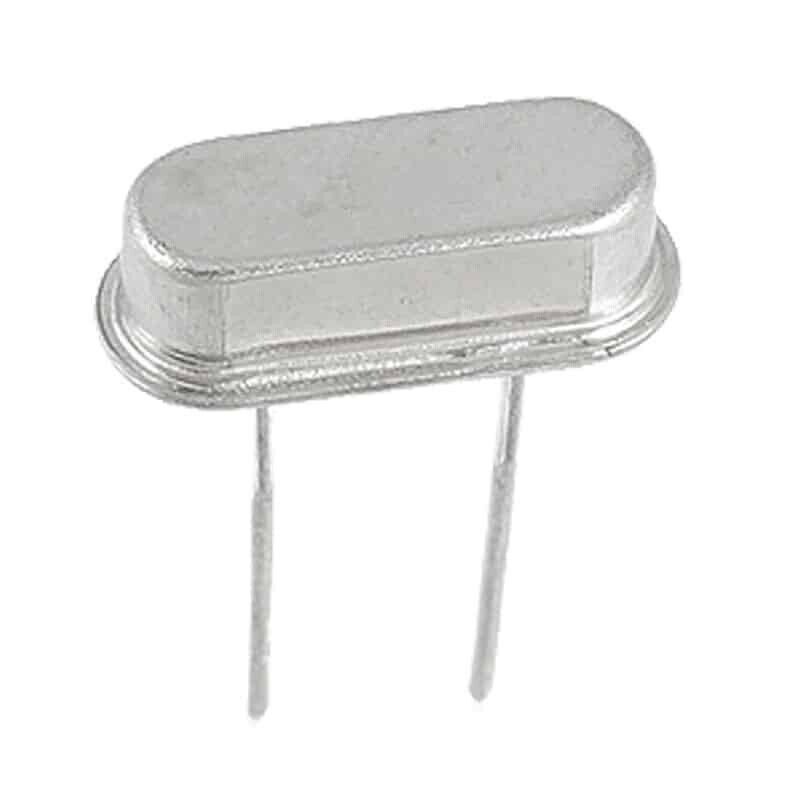

6 MHz Crystal Oscillator HC-49S
Enhance your projects with our high-precision 6.000 MHz Crystal Oscillator, ideal for Arduino and Raspberry Pi applications. Ensure stability and performance with industry-standard HC-49S packaging.
- Frequency: 6.000 MHz
- Operating Voltage: 5V
- Load Capacitance: 18 pF
- Package Type: HC-49S
- Use Case: Suitable for Arduino and Raspberry Pi projects
Order now to ensure precise timing and reliable performance for your electronic designs!
Shipping, returns, and payments
2 Pieces | 6.000 MHz | HC-49S | Crystal Oscillator Arduino Raspberry | US SHIP
Product Details:
Enhance your electronic projects with these precision 6.000 MHz HC-49S Crystal Oscillators, ideal for Arduino and Raspberry Pi applications. These oscillators ensure highly accurate clock signals, crucial for the stable performance of microcontroller-based circuits.
Specifications:
- ✅ Quantity: 2 Pieces
- ✅ Frequency: 6.000 MHz
- ✅ Package: HC-49S
- ✅ Load Capacitance: 18pF
- ✅ Frequency Tolerance: ±30ppm
- ✅ Temperature Range: -20°C to +70°C
- ✅ Application: Microcontroller projects, timekeeping, and communication devices
Features & Benefits:
- ✔️ High frequency stability and precision
- ✔️ Compact HC-49S package for versatile integration
- ✔️ Low equivalent series resistance for improved performance
- ✔️ Optimized for Arduino, Raspberry Pi, and various development boards
- ✔️ Designed for reliable, long-lasting use in critical applications
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Height | 4.2 mm |
| Lead Finish | Sn/Ag/Cu plated |
| ESR at 25°C | 30 Ω typical |
| Phase Noise | -145 dBc/Hz at 10 kHz offset |
| Lifespan | 200000 hours |
| Vibration Resistance | 10-55 Hz, 1.5 mm amplitude, 2 hours |
| Shock Resistance | 1000 G, 0.3 ms |
| Termination Finish | Silver |
| Moisture Sensitivity Level | 1 (Unlimited) |
| REACH Compliance | Yes |
| RoHS Compliance | Yes |
| Lead Pitch | 4.88 mm |
| Width | 4.8 mm |
| Length | 11.4 mm |
| Mounting Type | Through Hole |
| Frequency | 6.000 MHz |
| Insulation Resistance | 500 MΩ minimum |
| Drive Level | 100 µW |
| Shunt Capacitance | 7 pF |
| Equivalent Series Resistance | ≤200 Ω |
| Storage Temperature Range | -40°C to 85°C |
| Operating Temperature Range | -20°C to 70°C |
| Frequency Stability | ±50 ppm |
| Frequency Tolerance | ±30 ppm |
| Load Capacitance | 20 pF |
| Compatibility | Arduino Raspberry |
| Component Type | Crystal Oscillator |
| Package Type | HC-49S |
| Carrier Frequency Deviation | ±6 ppm |
