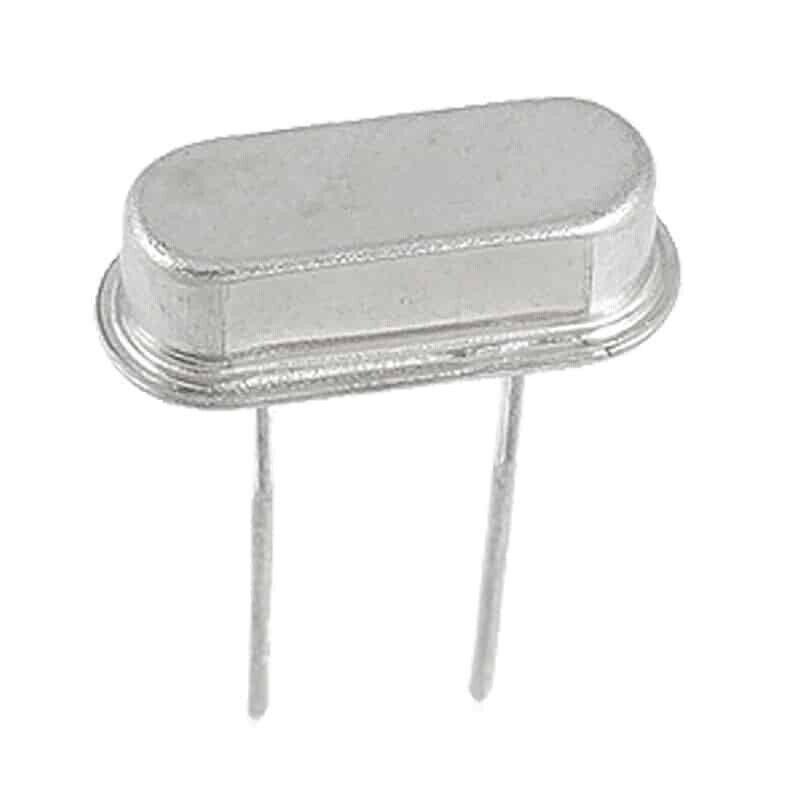

2 Pieces | 16.000 MHz | HC-49S | Crystal Oscillator Arduino Raspberry
2 in stock
2 in stock
16 MHz HC-49S Oscillator Set
Enhance your electronic projects with our high-precision 16.000 MHz HC-49S Crystal Oscillators. Engineered for reliability, these oscillators are perfect for Arduino and Raspberry Pi applications.
- Frequency: 16.000 MHz
- Voltage: 5V (standard operating)
- Package: HC-49S, industry standard
- Temperature Stability: ±50 ppm
- Applications: Ideal for microcontrollers and embedded systems
Optimize your signal frequency performance with these oscillators. Perfect for students, hobbyists, and professionals alike.
Shipping, returns, and payments
2 Pieces | 16.000 MHz | HC-49S | Crystal Oscillator Arduino Raspberry | US SHIP
Product Details:
Enhance your electronic projects with these precision 16.000 MHz HC-49S Crystal Oscillators, ideal for Arduino, Raspberry Pi, and other microcontroller applications. These oscillators provide stable frequency reference signals, ensuring optimal performance and accuracy in your digital circuits.
Specifications:
- ✅ Quantity: 2 Pieces
- ✅ Frequency: 16.000 MHz
- ✅ Package: HC-49S
- ✅ Load Capacitance: 18pF
- ✅ Frequency Stability: ±20ppm
- ✅ Temperature Range: -20°C to +70°C
- ✅ Application: Ideal for Arduino, Raspberry Pi, and various microcontroller applications
Features & Benefits:
- ✔️ Provides a stable and precise clock signal for optimized circuit performance
- ✔️ Compact HC-49S package for efficient PCB design
- ✔️ High-precision frequency stability for reliable operations
- ✔️ Versatile usage for numerous electronic applications
- ✔️ Quick shipping from US stock
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Component Type | Crystal Oscillator |
| Package Type | HC-49S |
| Frequency | 16.000 MHz |
| Load Capacitance | 20 pF |
| Frequency Stability | ±20 ppm |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Resonance Mode | Fundamental |
| Equivalent Series Resistance | 40 Ω |
| Drive Level | 100 µW |
| Shunt Capacitance | 7 pF Max |
| Insulation Resistance | 500 MΩ Min at 100 VDC |
| Ageing | ±5 ppm per year |
| Series Resistance | Max 40 Ω |
| Oscillation Mode | AT-Cut |
| Height(mm) | 4.5 |
| Length(mm) | 11.05 |
| Width(mm) | 4.65 |
| Lead Configuration | Through Hole |
| Quality Factor | 200,000 typical |
| Termination Finish | Silver (Ag) |
| Resistance Tolerance | ±20% |
| Soldering Conditions | 260°C for 10 sec max |
| Weight | 1.0 g Typ |
| Application | Arduino, Raspberry Pi |
| RoHS Compliant | Yes |
| Packaging | Tape and Reel |
| Quantity per Pack | 2 Pieces |
