2 Pcs – NEC B772 PNP Medium Power Transistor | TO-126 | 3 Amp 30 Volt
1 in stock
1 in stock

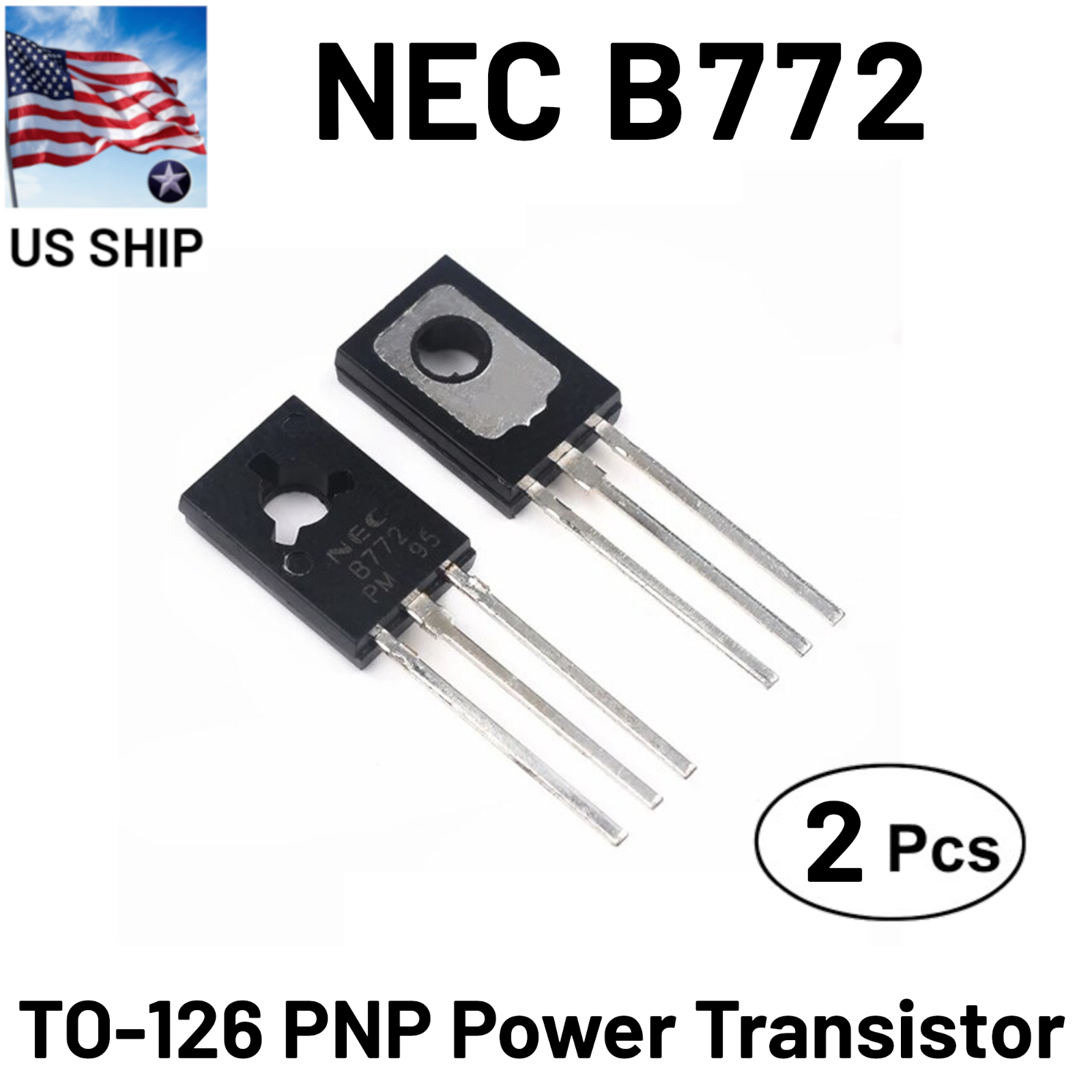

2 Pcs NEC B772 PNP Transistors
Unlock high performance in your electronic projects with our NEC B772 PNP Medium Power Transistors. These components deliver reliability and efficiency, making them a perfect fit for power amplification and switching applications.
- Package Type: TO-126
- Collector Current: 3 Amps
- Collector-Emitter Voltage: 30 Volts
- Power Dissipation: 800 mW
- Ideal for Audio Amplifiers
Upgrade your circuits with our high-quality NEC B772 transistors for optimal performance in demanding electrical environments.
Shipping, returns, and payments
2 Pcs – NEC B772 PNP Medium Power Transistor | TO-126 | 3 Amp 30 Volt | US Ship
Product Details:
Enhance your electronic projects with the reliable NEC B772 PNP Medium Power Transistor. This high-performance transistor, ideal for power amplification and switching applications, provides robust support for various electronic components, ensuring efficient current handling and stability.
Specifications:
- ✅ Quantity: 2 Pieces
- ✅ Configuration: PNP
- ✅ Package Type: TO-126
- ✅ Maximum Current: 3 Amps
- ✅ Maximum Voltage: 30 Volts
- ✅ Application: Audio amplification, switching circuits, power regulation
Features & Benefits:
- ✔️ High current capability supporting up to 3 Amps
- ✔️ Durable TO-126 package for effective heat dissipation
- ✔️ Wide voltage range up to 30 Volts for versatile use
- ✔️ Ideal for industrial and consumer electronics applications
- ✔️ Shipped from the US for quick delivery
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | NEC |
|---|---|
| Collector Capacitance | 30 pF |
| Terminal Position | Single |
| Material | Silicon |
| Product Series | B772 |
| Pin Count | 3 |
| Mounting Type | Through Hole |
| RoHS Status | Compliant |
| Lead Finish | Sn (Tin) |
| Thermal Resistance | 62.5 °C/W |
| Weight | 0.8 g |

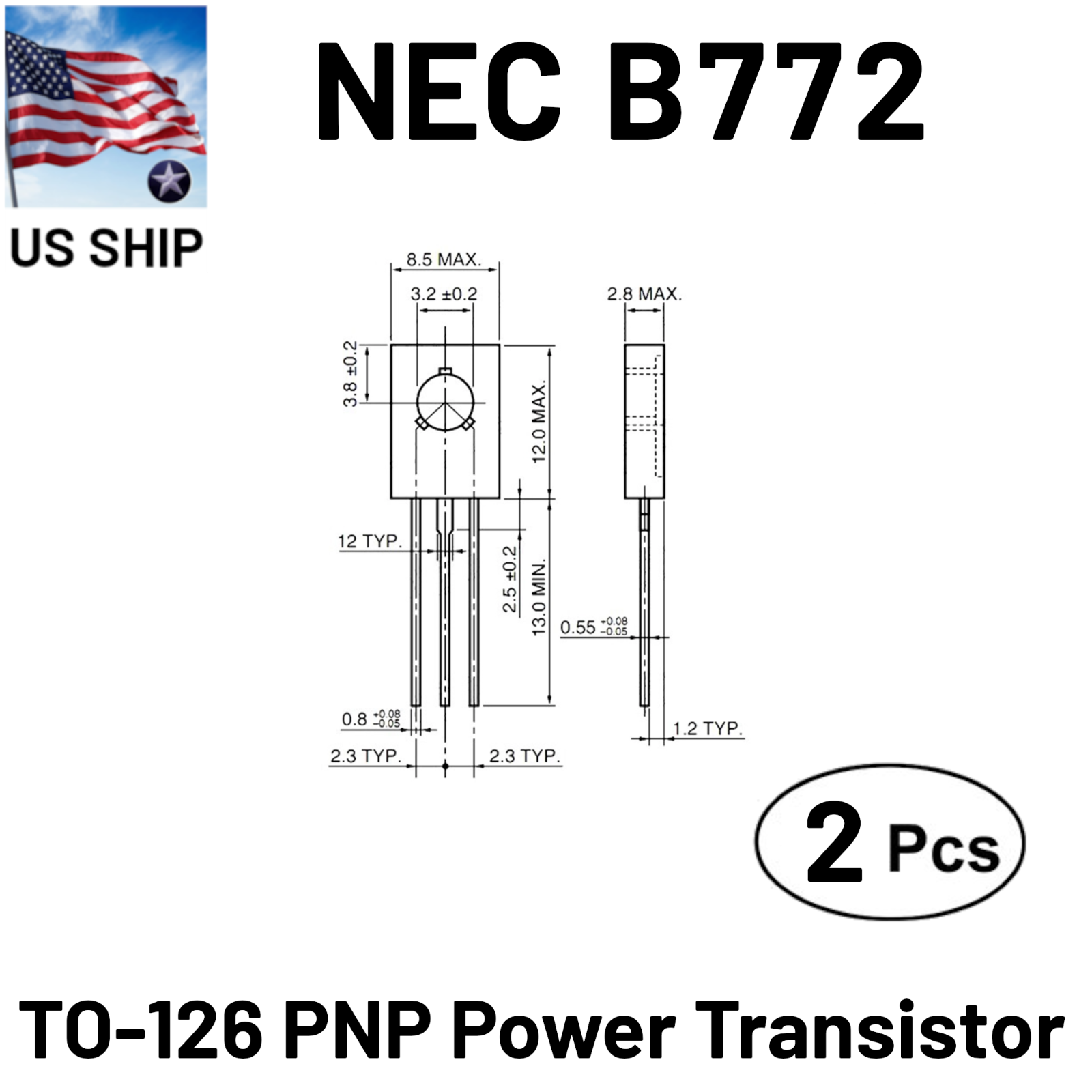

| Package Outline | TO-126 |
| Operating Temperature Range | -55°C to +150°C |
| Base-Emitter Voltage | 1.5 V |
| Product Name | 2 Pcs - NEC B772 PNP Medium Power Transistor |
| Collector-Emitter Saturation Voltage | 0.1 V |
| Transition Frequency | 100 MHz |
| DC Current Gain (hFE) Max | 320 |
| DC Current Gain (hFE) Min | 100 |
| Maximum Emitter-Base Voltage | 5 V |
| Maximum Collector-Base Voltage | 50 V |
| Maximum Collector-Emitter Voltage | 50 V |
| Maximum Collector Current | 3 A |
| Maximum Power Dissipation | 800 mW |
| Transistor Type | PNP |
| Maximum Voltage | 30 Volt |
| Maximum Current | 3 Amp |
| Package Type | TO-126 |
| Market Segment | Consumer Electronics |
