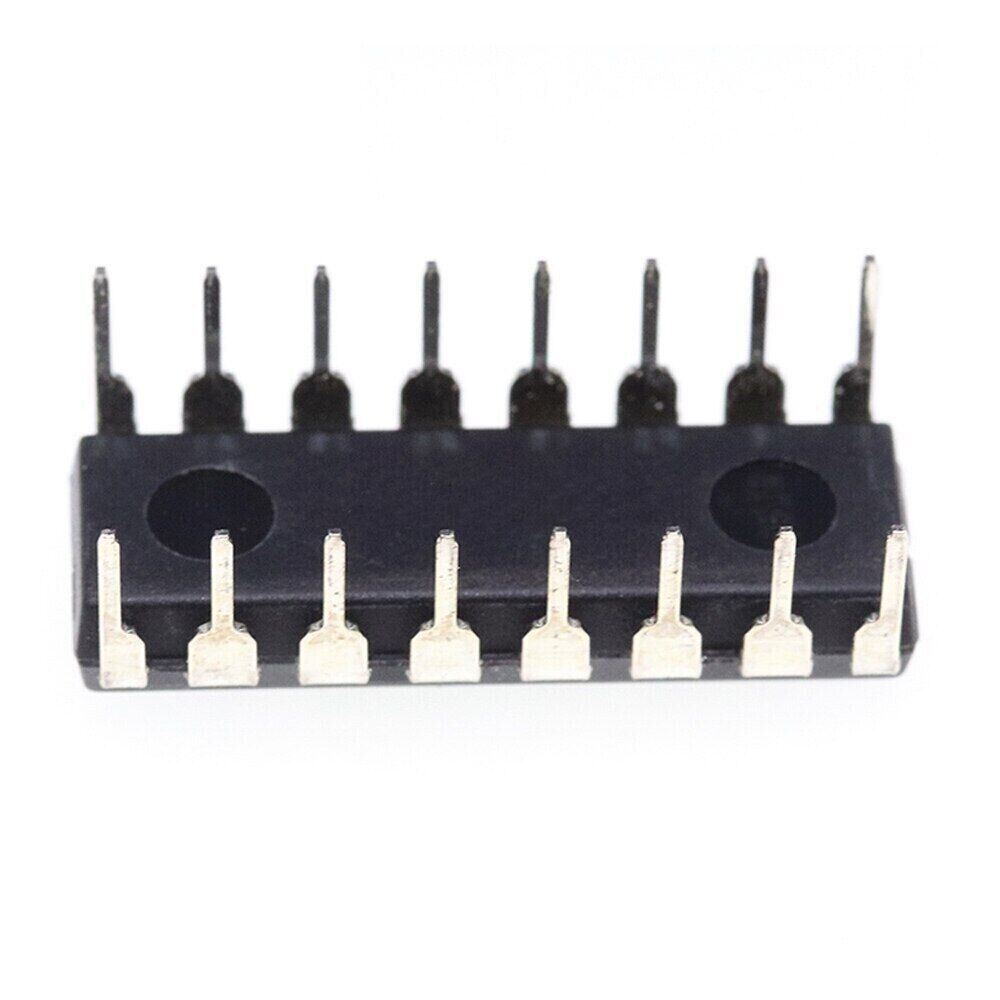

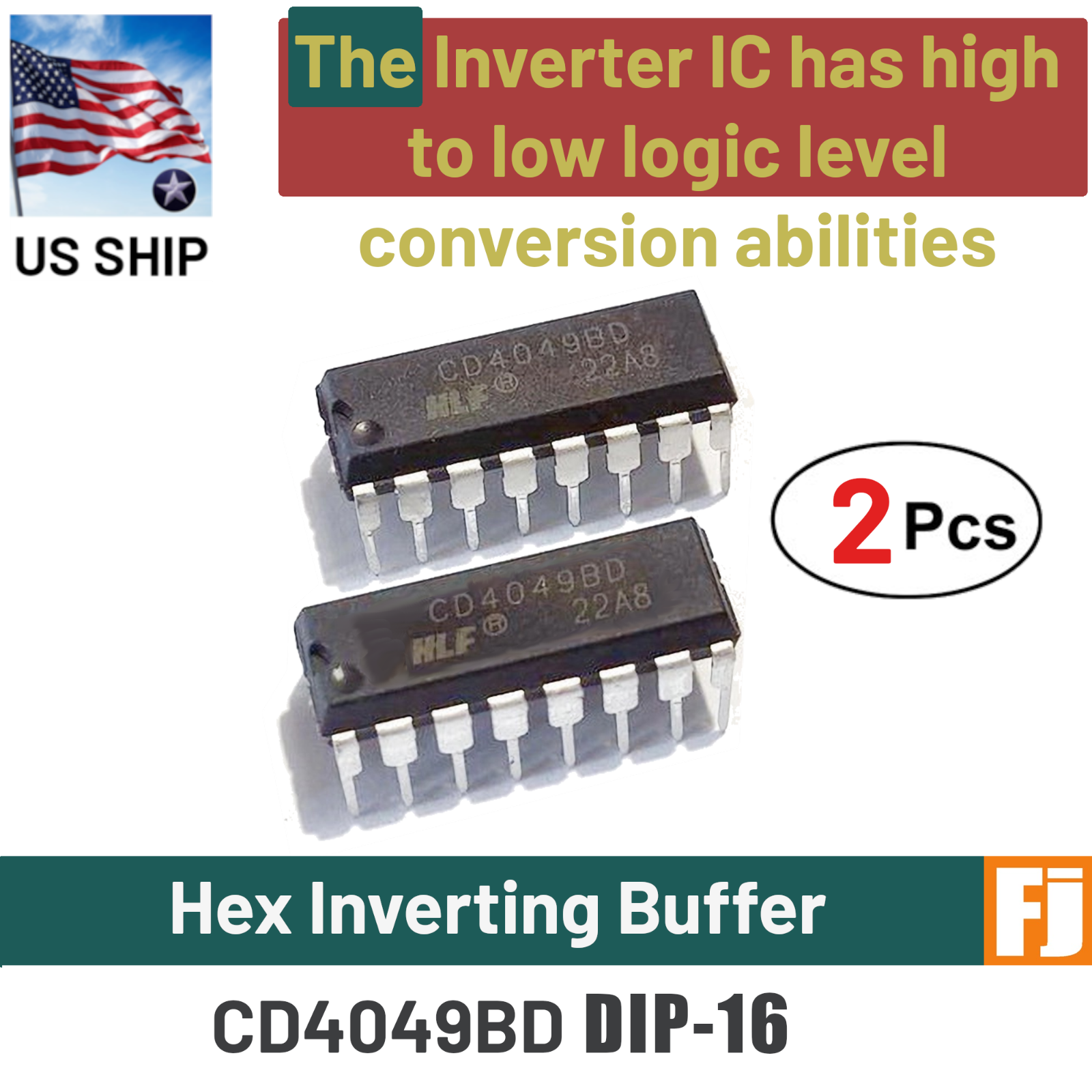

2 Pcs HLF CD4049BD CD4049 Hex Inverting Buffer DIP16
1 in stock
1 in stock
HLF CD4049BD Hex Buffer
The HLF CD4049BD Hex Inverting Buffer is a reliable choice for electrical engineers seeking efficient signal inversion. Perfectly designed for various digital and analog applications, this two-piece set offers excellent performance and speedy delivery from the US.
- Operating Voltage: 3V – 15V
- Output Current: 6.8mA
- Package Type: DIP16
- High Noise Immunity
- Use Case: Signal Inversion
Enhance your circuit solutions with the HLF CD4049BD, ideal for both experimental setups and professional projects. Order now to ensure high-efficiency performance!
Shipping, returns, and payments
2 Pcs HLF CD4049BD CD4049 Hex Inverting Buffer DIP16 | US Ship
Product Details:
Optimize your digital circuits with these premium CD4049 Hex Inverting Buffer ICs. Designed to enhance signal integrity and boost circuit performance, these buffers are essential for engineers working on complex logic circuits. Perfect for signal inversion and digital logic level shifting, ensuring high reliability and compatibility with various applications.
Specifications:
- ✅ Quantity: 2 Pieces
- ✅ Package Type: DIP16
- ✅ Function: Hex Inverting Buffer
- ✅ Supply Voltage: 3V to 15V
- ✅ High Noise Immunity
- ✅ Made in USA
- ✅ RoHS Compliant
Features & Benefits:
- ✔️ Enhances logic signal fidelity and minimizes distortion
- ✔️ Wide voltage range compatibility for diverse applications
- ✔️ High noise immunity for robust performance
- ✔️ Reliable, with low power consumption
- ✔️ Ideal for microcontroller and logic-based projects
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Texas Instruments |
|---|---|
| Packaging | Tape & Reel |
| Life Cycle | Active |
| JESD-30 Code | R-PDIP-T16 |
| Technology | Si |
| Output Current per Channel | 25mA (Max) |
| Lead Pitch | 2.54 mm |
| Number of Pins | 16 |
| Length | 19.3 mm |
| Width | 6.35 mm |
| Height | 4.95 mm |
| Lead-Free | Yes |
| RoHS Compliant | Yes |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Operating Temperature Range | -55°C to 125°C |
| Part Number | CD4049BD |
| Mounting Type | Through Hole |
| Input Type | CMOS |
| Function | Inverter |
| Number of Channels | 6 |
| Logic Family | CMOS |
| Input Capacitance | 5pF (Typ) |
| Low-Level Output Voltage | 0.05V at 5V |
| High-Level Output Voltage | 4.95V at 5V |
| Propagation Delay Time | 20ns at 5V |
| Supply Current | 10µA (Max) |
| Power Supply Voltage | 3V to 15V |
| Package Type | DIP16 |
| Description | Hex Inverting Buffer |
