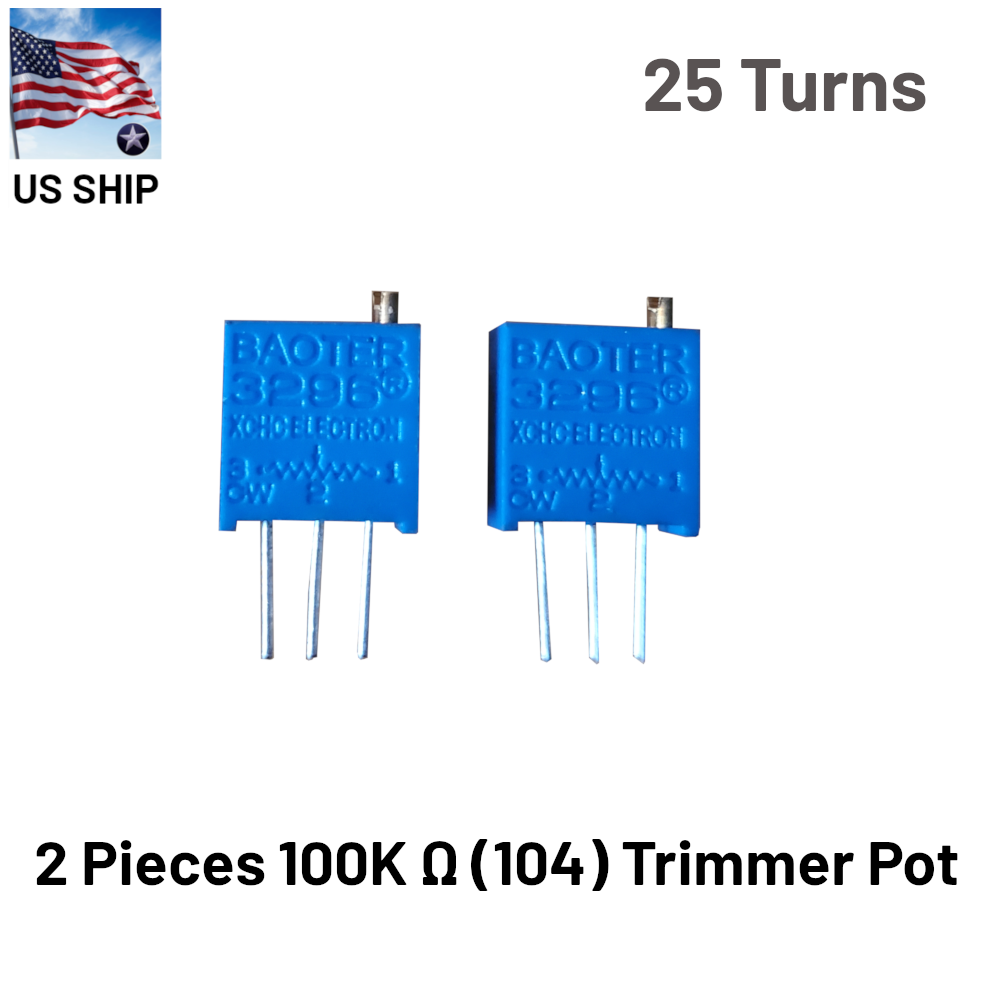

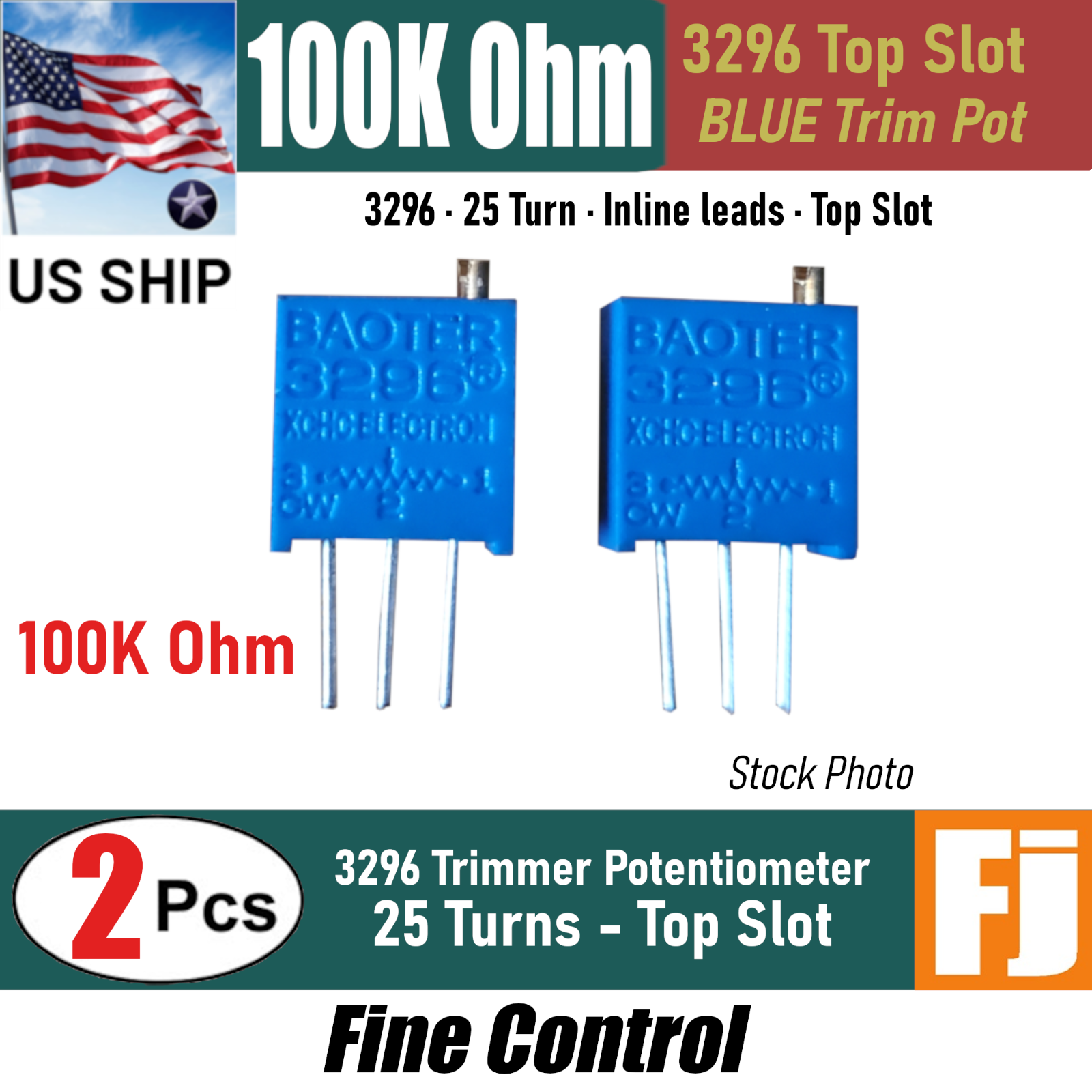

2 Pcs 3296 100K Ohm Trimmer Potentiometer (104) POT 25 Turn Top Slot | US Ship
1 in stock
1 in stock
2 PCS 3296 100K Ohm Trimmer Pot
Unlock precision with our 2 Pcs 3296 100K Ohm Trimmer Potentiometers, a must-have for fine-tuning electrical circuits. Perfect for professionals and hobbyists alike.
- Resistance: 100K Ohms
- Voltage: Up to 200V
- Current: 0.5W Rating
- Package Type: Through-Hole
- Use Case: Circuit Calibration
Achieve superior accuracy in your projects with this reliable and versatile component. Ideal for precision circuit adjustments and calibrations.
| Shipping: | |
| Estimated Delivery: | Ships on Mon, Mar 9, Delivery Estimated between Mon, Mar 16 and Wed, Mar 18 to 94029 |
Item Specifics
Brand:Unbranded/Generic | Shaft Length:4.8mm |
Country/Region of Manufacture:China | Upgrade Shipping:Purchase $25 or more get free USPS G/A Shipping Upgrade |
Shipping:Economy (USPS First Class Envelope unless upgraded) | Condition:New |
Model Number:3296W | Feature:Industrial Standard |
Adjustment Method:Screwdriver Slot | Resistor Material:Cermet |
Insulation Resistance:>500MΩ | Rotation Life:200 turns |
Dielectric Strength:500V RMS | Resistance Range:100 Ohm to 500K Ohm |
Housing Material:Molded Plastic | Shaft Diameter:2.4mm |
Name:2 Pcs 3296 100K Ohm Trimmer Potentiometer (104) POT 25 Turn Top Slot | Size Dimension:9.4mm x 4.8mm x 12.2mm |
Contact Material:Metal Resistive Element | Mechanical Angle:3600° |
Operating Temperature Range:-55°C to +125°C | Termination Style:Pin |
Mounting Type:Through Hole | Voltage Rating:250V |
Power Rating:0.5W (1/2 Watt) | Temperature Coefficient:±100ppm/°C |
Number of Turns:25 | Adjustment Type:Top Slot |
Resistance Tolerance:±10% | Resistance:100K Ohm |
Type:Multiturn Trimmer Potentiometer | Quantity:2 |
2 Pcs 3296 100K Ohm Trimmer Potentiometer (104) POT 25 Turn Top Slot | US Ship
Product Details:
Enhance your circuit designs with the precision of the 3296 100K Ohm Trimmer Potentiometer. This top-slot trimmer is ideal for tuning and calibrating your electronic circuits. With 25 rotational turns, this potentiometer offers superior control over resistance values, ensuring optimal performance in both prototyping and final applications.
Specifications:
- ✅ Quantity: 2 Pieces
- ✅ Resistance: 100KΩ (Ohms)
- ✅ Type: Multi-turn Trimmer Potentiometer
- ✅ Adjustment Slot: Top
- ✅ Temperature Coefficient: ±100ppm/°C
- ✅ Application: Precision tuning in amplifiers, filters, and other electronic circuits
Features & Benefits:
- ✔️ Precise 25-turn adjustment for fine-tuning
- ✔️ Compact design for easy PCB integration
- ✔️ Reliable performance with stable resistance over time
- ✔️ High tolerance and durability for both prototype and production environments
- ✔️ Perfect for calibrating instruments, RF circuits, and feedback loops
