2x 2P4M SCR Thyristor | TO-126 | 2.0 Amp 400 Volt
1 in stock
1 in stock

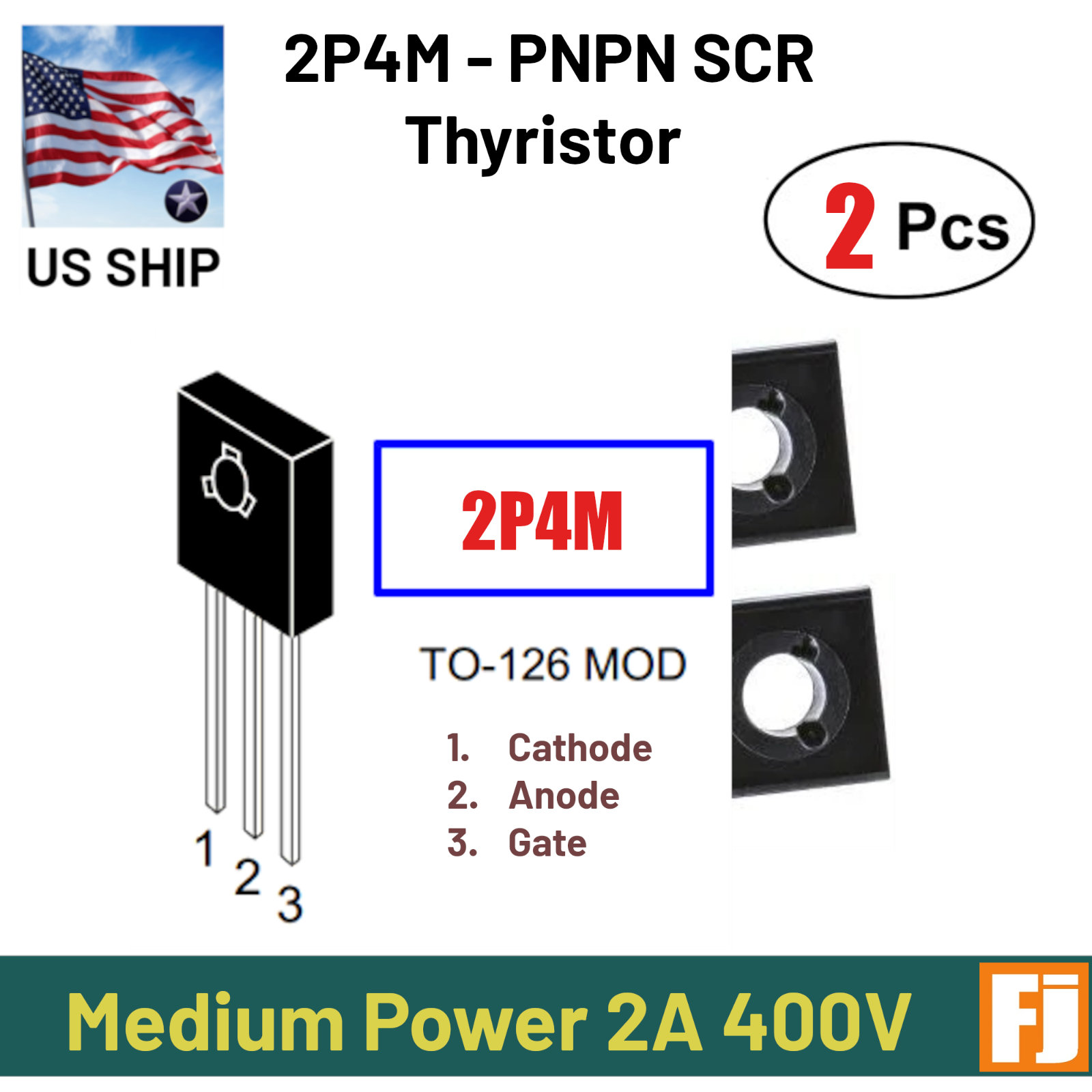

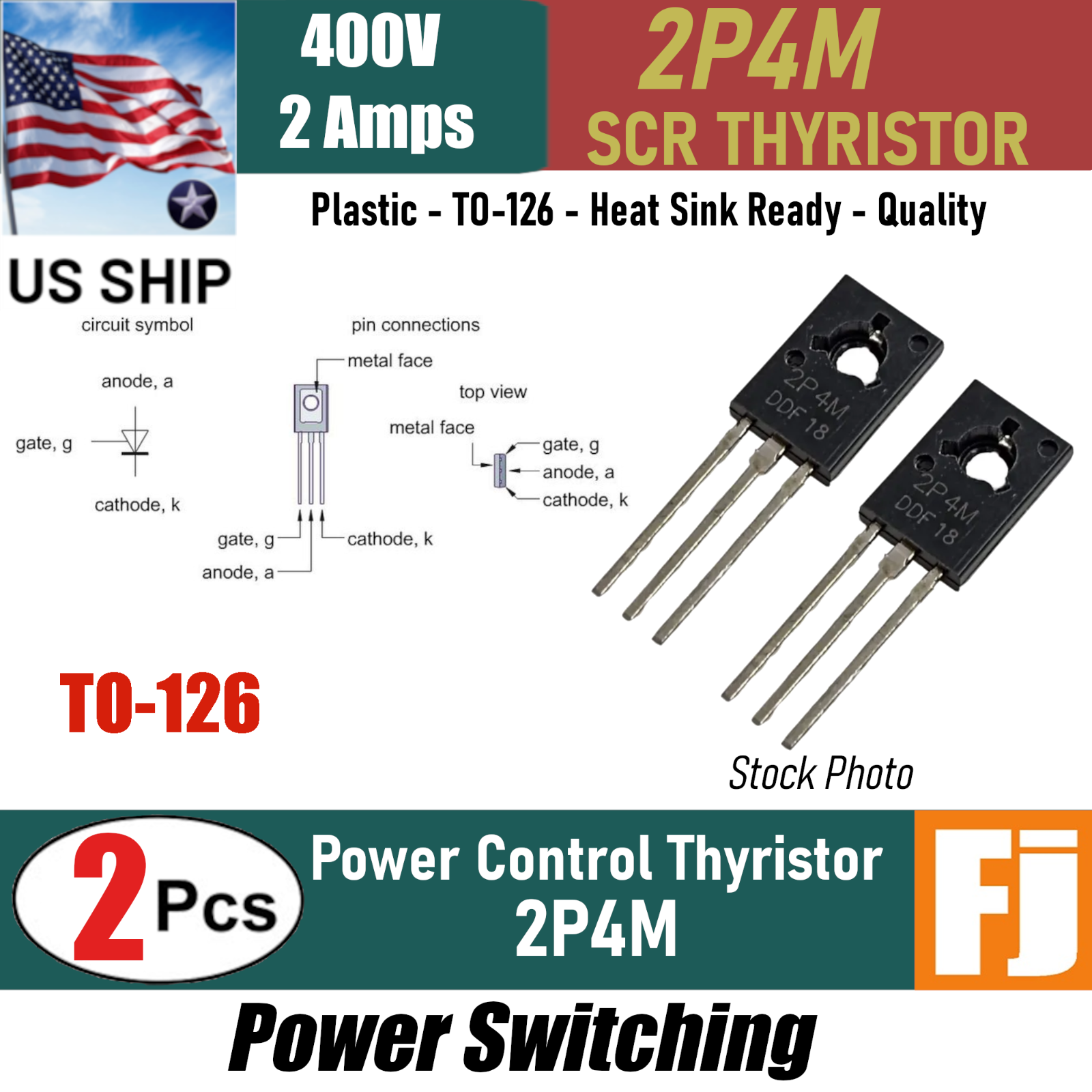

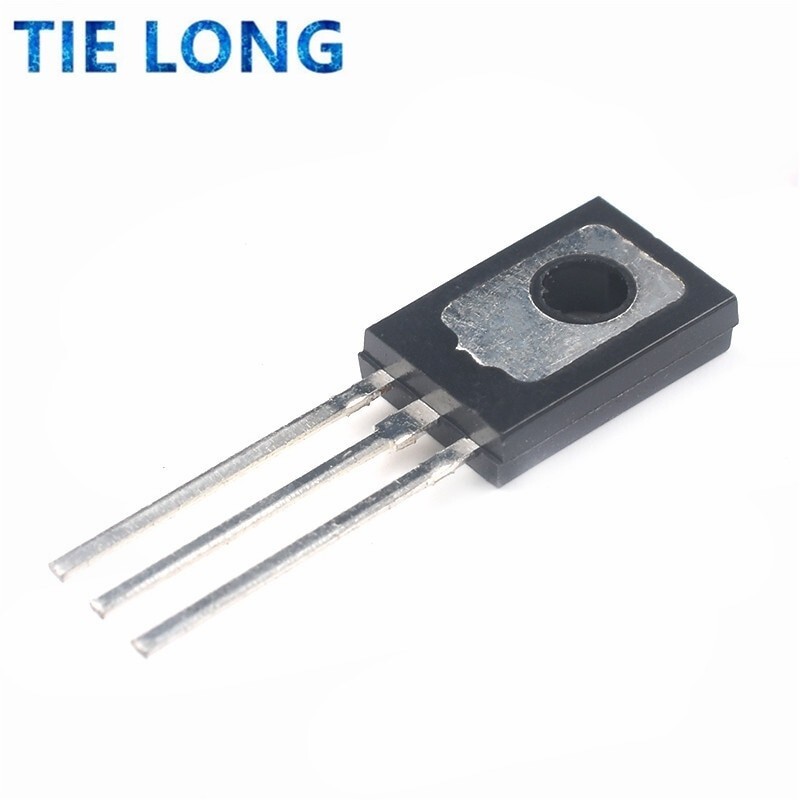

2P4M SCR Thyristor – TO-126
Enhance your circuit designs with our 2P4M SCR Thyristor, precision-engineered for robust and reliable switching applications. Perfect for electrical engineers seeking efficiency and performance in compact spaces.
- Voltage Rating: 400 Volts
- Current Rating: 2.0 Amps
- Package Type: TO-126
- High Switching Efficiency
- Ideal for Phase Control Applications
Order now to revolutionize your electronic projects with our high-performance thyristors, ideal for precision control in industrial and consumer electronics.
Shipping, returns, and payments
2x 2P4M SCR Thyristor | TO-126 | 2.0 Amp 400 Volt | US Ship
Product Details:
Enhance your electrical engineering projects with these high-quality 2P4M SCR Thyristors. Designed for precise control and high performance, these thyristors are ideal for managing electrical currents in various applications. With their robust construction and superior voltage capabilities, they ensure reliable and efficient operation.
Specifications:
- ✅ Quantity: 2 Pieces
- ✅ Current Rating: 2.0 Amps
- ✅ Voltage Rating: 400 Volts
- ✅ Package Type: TO-126
- ✅ Type: SCR Thyristor
- ✅ Application: Control and switching for industrial equipment, motor drivers, and more
Features & Benefits:
- ✔️ High current and voltage handling capabilities
- ✔️ Compact TO-126 package for space-saving design
- ✔️ Reliable and precise control of electrical currents
- ✔️ Durable construction for long-lasting performance
- ✔️ Ideal for industrial applications and motor control systems
© 2026 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Gate Trigger Current Min | 0.2 mA |
| Gate Voltage During Spike | 8 V |
| Gate Current During Spike | 0.1 A |
| Isolation Voltage | 1500 V |
| Blocking Voltage Rise Rate | 2000 V/μs |
| di/dt | 50 A/μs |
| IT(RMS) | 1.26 A |
| VDRM/VRRM | 400 V |
| Holding Current Min | 1 mA |
| Max Turn Off Time | 10 μs |
| Max Turn On Time | 2 μs |
| Commutation dv/dt | 10 V/μs |
| Non-Repetitive Surge Current | 25 Amp |
| On-State Voltage (Max) | 1.7 V |
| Part | 2x 2P4M SCR Thyristor |
| Number of Pins | 3 |
| Packaging | Tube |
| Mounting Style | Through Hole |
| Operating Temperature Range | -40°C to +125°C |
| Thermal Resistance Junction to Case (Max) | 2.5 °C/W |
| Reverse Blocking Voltage (Max) | 400 Volt |
| Rep. Forward Blocking Voltage (Max) | 400 Volt |
| Surge Current (Max) | 20 Amp |
| Holding Current (Max) | 5 mA |
| Gate Trigger Current (Max) | 15 mA |
| Gate Trigger Voltage (Max) | 1.5 V |
| Peak Repetitive Off-State Voltage | 400 Volt |
| Average On-State Current | 2.0 Amp |

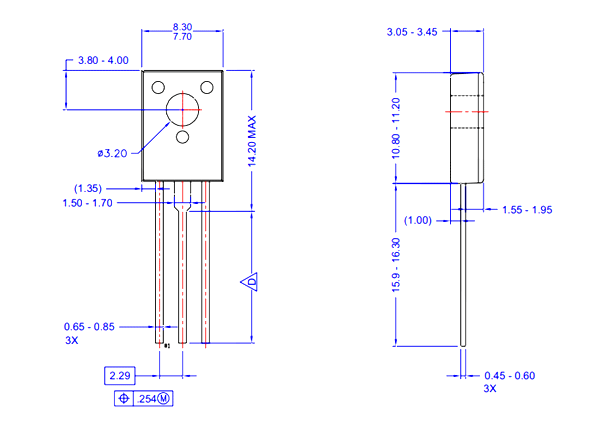

| Package/Case | TO-126 |
