1N5819 Diode (10 Pcs) 1A 40V Schottky Barrier Diode DO-41 IN5819 | US SHIP
1 in stock
1 in stock
1N5819 Diode (10 Pcs) 1A 40V
Discover the reliability and efficiency of our 1N5819 Diode pack, perfect for your electronic projects. Ideal for rectification and voltage regulation tasks.
- Reverse Voltage: 40V
- Forward Current: 1A
- Package Type: DO-41
- High Efficiency with Low Forward Voltage Drop
- Perfect for Power Supply Circuits and Switch-Mode Applications
Optimize your circuits with our 1N5819 Diodes today, ensuring high performance and durability in your electronic designs.
| Shipping: | |
| Estimated Delivery: | Ships on Fri, Jan 16, Delivery Estimated between Fri, Jan 23 and Tue, Jan 27 to 96037 |
Item Specifics
Brand:Unbranded | Reverse Recovery Time:Not Applicable |
Shipping:Economy (USPS First Class Envelope unless upgraded) | Quantity:10 Pieces |
Unit Weight:0.5 g | RoHS Compliant:Yes |
Current Rating:1 A | Voltage Rating:40 V |
Moisture Sensitivity Level:1 | Qualification Level:Standard |

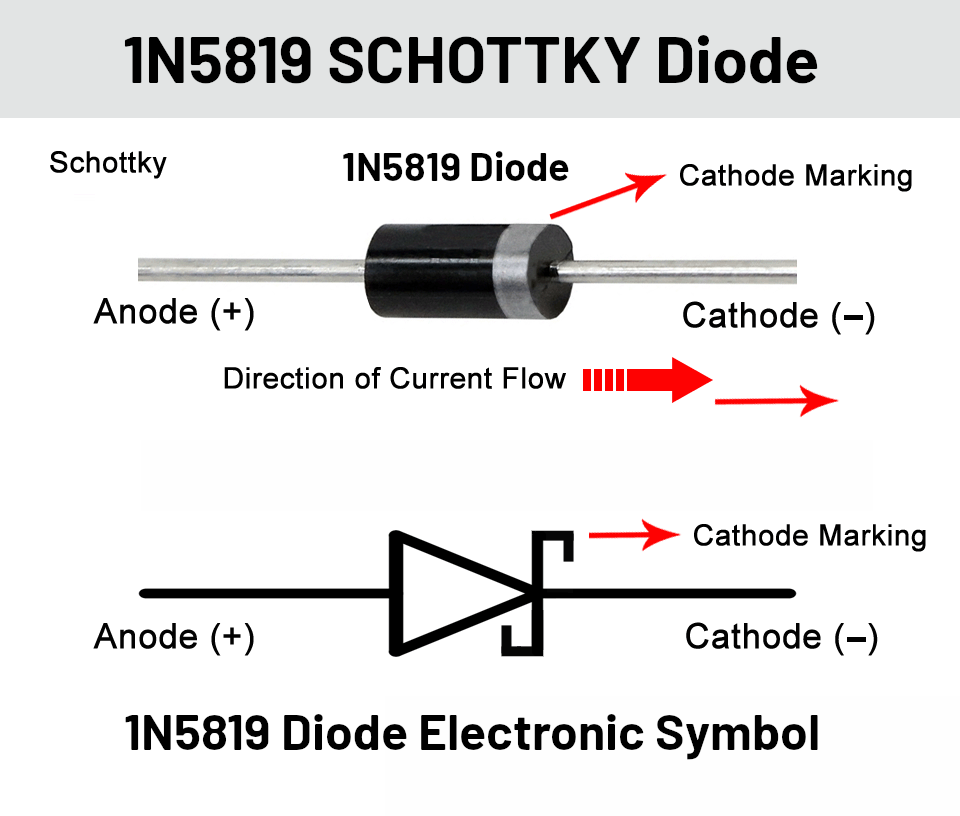

Case Material:Plastic Epoxy | Polarity:Cathode Band |
Thermal Resistance Junction to Lead:20 °C/W | Thermal Resistance Junction to Ambient:50 °C/W |
Capacitance:110 pF | Max Surge Current:25 A |
Part Number:1N5819 | Lead Diameter:0.8 mm |
Diode Type:Schottky | Mounting Style:Through Hole |
Storage Temperature Range:-55°C to 150°C | Junction Temperature:125°C |
Operating Temperature Range:-55°C to 125°C | Max Peak Reverse Current:1 mA |
Forward Voltage Drop:0.45 V | Average Rectified Current:1 A |
Peak Reverse Voltage:40 V | Reverse Voltage:40 V |
Forward Continuous Current:1 A | Package Type:DO-41 |
Description:Schottky Barrier Rectifier | Upgrade Shipping:Purchase $25 or more get free USPS G/A shipping Upgrade |
1N5819 Diode (10 Pcs) 1A 40V Schottky Barrier Diode DO-41 IN5819 | US SHIP
Product Details:
Enhance your electronic projects with our premium 1N5819 Diodes, optimized for high-frequency and fast switching applications. These Schottky Barrier Diodes offer excellent performance with low forward voltage drop, perfect for power supply rectification, freewheeling diodes, and reverse battery protection.
Specifications:
- ✅ Quantity: 10 Pieces
- ✅ Current Rating: 1A
- ✅ Voltage Rating: 40V
- ✅ Package Type: DO-41
- ✅ Type: Schottky Barrier Diode
- ✅ Operating Temperature Range: -65°C to +125°C
- ✅ Application: Ideal for rectification, voltage clamping, and polarity protection
Features & Benefits:
- ✔️ Low forward voltage drop for efficient power use
- ✔️ Fast switching capability to improve high-frequency efficiency
- ✔️ Compact DO-41 package for versatile applications
- ✔️ High thermal stability ensures reliable performance
- ✔️ Suitable for power supply circuits and solar panel applications
Shipping Information:
We offer FREE Shipping on all orders!
Your order will be shipped as quickly as possible, typically via USPS First Class. Tracking is provided through USPS Informed Visibility. You will receive tracking updates via email from First Class Track, a web service that manages USPS First Class tracking for Fahmah Jackson.
Orders are dispatched within 1 business day of receiving payment (Monday–Friday) from our location in Chester, New Hampshire, US. We take pride in providing fast and efficient shipping services to our customers.
Orders addressed to Freight Forwarders violate eBay policies and will be canceled unless upgraded to USPS Ground Advantage for improved delivery reliability.
For customers within the **US**, you should expect to receive your order within seven business days from the dispatch date.
In the unlikely event that your item is lost or damaged during shipping, we take full responsibility and will promptly resolve the issue. We will either provide a full refund or send a replacement to ensure your satisfaction.
If you prefer expedited shipping or additional tracking services, you may choose upgraded shipping options during checkout to suit your needs.
An item is considered missing if not received within eight business days from the shipping date. If this occurs, you have the following options:
- Option 1: Request a full refund from support@fahmahjackson.com You may alternatively request a reship if at all possible.
- Option 2: Instead of opening a case, request a resend of the missing product, and we will promptly ship a replacement.
Returns:
If you are not 100% satisfied with your purchase, you may return the product for a full refund or exchange it for another item, whether similar or not.
Returns are accepted for up to 30 days from the purchase date.
All returned products must be in their original condition and original packaging. Please retain your receipt for verification.
