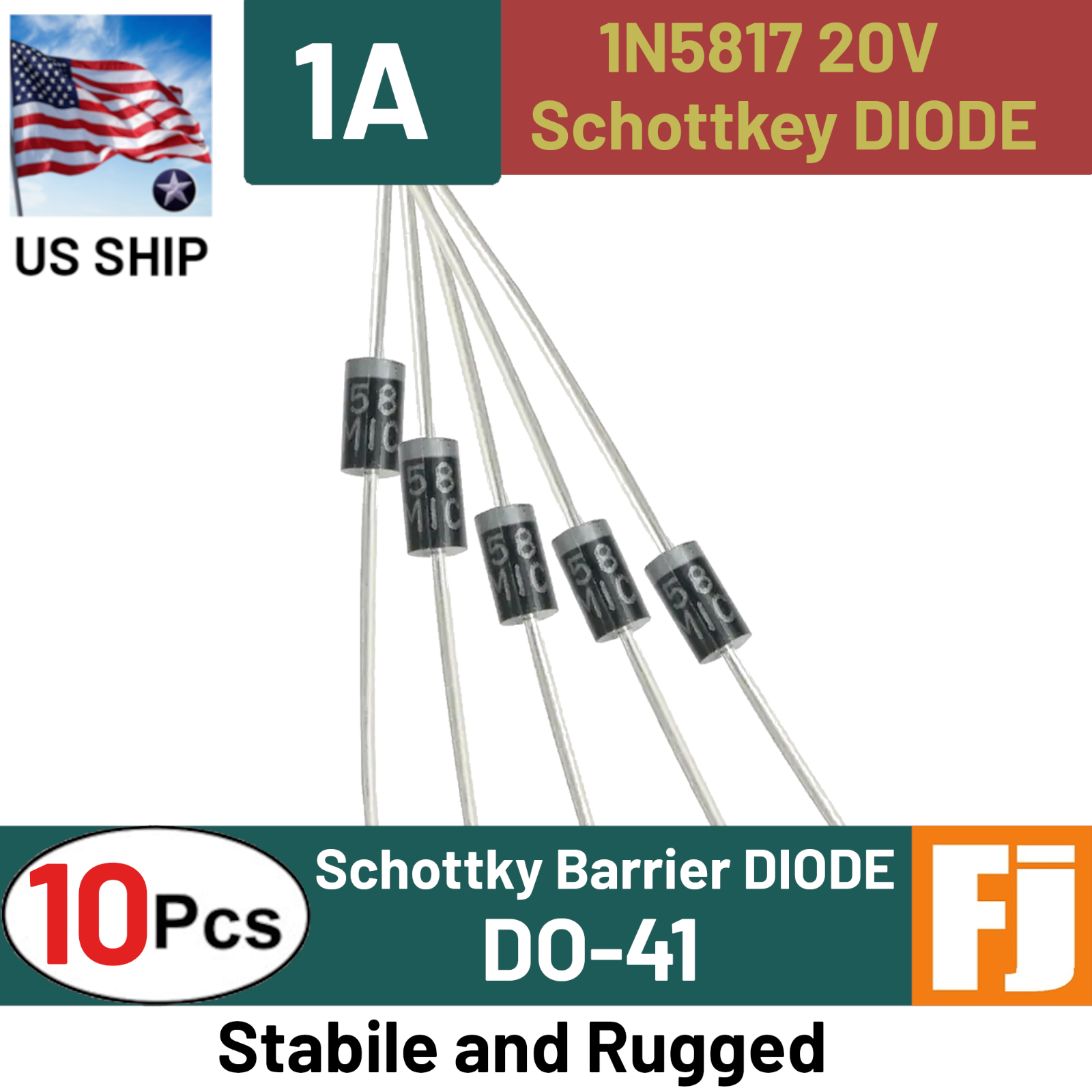

1N5817 Diode (10 Pcs) 1A 20V Schottky Barrier Diode DO-41 IN5817
1 in stock
1 in stock
1N5817 Diode (10 Pcs) 1A 20V
Discover the high-performance 1N5817 Schottky Barrier Diode, essential for efficient power management in your electrical projects. Perfect for applications requiring low forward voltage drop and fast switching.
- Voltage Rating: 20V
- Current Rating: 1A
- Package Type: DO-41
- High Efficiency: Low forward voltage
- Ideal Use Case: Rectification in DC/DC converters
Ensure reliable performance in your electronic designs with the 1N5817 Diode bundle. Perfect for engineers looking to enhance their circuits with top-tier components.
Shipping, returns, and payments
1N5817 Diode (10 Pcs) 1A 20V Schottky Barrier Diode DO-41 IN5817 | US SHIP
Product Details:
Enhance your electronic projects with the highly reliable 1N5817 Schottky Barrier Diode, designed for efficient rectification in low voltage applications. This diode is ideal for electrical engineers seeking dependable performance with excellent power efficiency.
Specifications:
- ✅ Quantity: 10 Pieces
- ✅ Forward Current: 1A
- ✅ Reverse Voltage: 20V
- ✅ Package Type: DO-41
- ✅ Type: Schottky Barrier Diode
- ✅ Temperature Range: -65°C to +125°C
- ✅ Application: Power rectification, voltage clamping, and freewheeling diodes
Features & Benefits:
- ✔️ Low forward voltage drop, minimizing power loss
- ✔️ Fast switching capability for enhanced circuit performance
- ✔️ Compact design suitable for PCB integration
- ✔️ Robust thermal stability ensuring long-term reliability
- ✔️ Perfect for applications with power conversion and signal rectification
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Maximum Reverse Current | 500µA @ 20V |
| Datasheet | Available |
| Warranty | 1 Year |
| Country of Origin | USA |
| RoHS Status | Compliant |
| Lead Finish | Matte Tin |
| Product Lifecycle Status | Active |
| Load Life | 1000 Hr |
| Pulse Peak Reverse Voltage | 30V |
| Reverse Recovery Time | Not applicable (Schottky) |
| Endurance Temperature | 125°C |
| Diode Capacitance | 110pF |
| Maximum Instantaneous Forward Voltage | 0.45V |
| Part Number | 1N5817 |
| Maximum DC Blocking Voltage | 20V |
| Maximum RMS Voltage | 14V |
| Maximum Recurrent Peak Reverse Voltage | 20V |
| Mounting Type | Through Hole |
| Operating Temperature Range | -65°C to +125°C |
| Reverse Current | 1mA @ 20V |
| Forward Voltage | 0.45V @ 1A |
| Surge Current | 25A |
| Average Rectified Current | 1A |
| Forward Continuous Current | 1A |
| Peak Reverse Voltage | 20V |
| Package | DO-41 |
| Diode Type | Schottky Barrier Diode |
| Quantity | 10 Pcs |
| Weight Per Unit | 0.26 grams |
