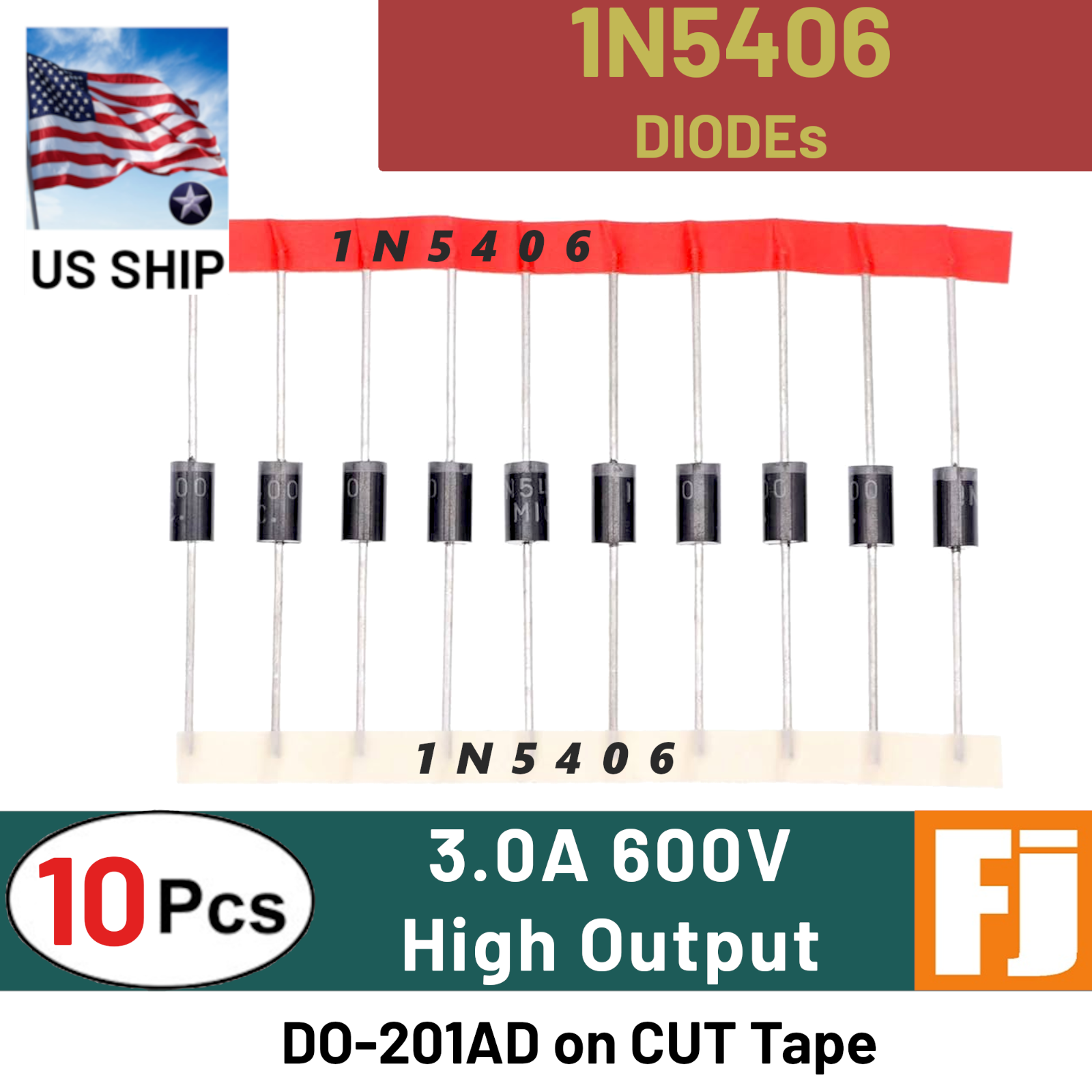

10x 1N5406 IN5406 3A 600V Rectifier Diode – USA Ship
Out of stock
Out of stock
1N5406 Diode (10 pcs) – USA
Discover our high-quality 1N5406 Rectifier Diodes, perfect for robust electrical engineering projects. These diodes are designed to meet demanding performance requirements and ensure reliable circuit protection.
- Voltage Rating: 600V
- Current Capacity: 3A
- Package Type: Axial Lead
- High Efficiency: Ideal for Power Applications
- Intended Use: General-Purpose Rectification
Equip your toolkit with this essential component, ideal for both hobbyists and professionals seeking durable rectification solutions.
Shipping, returns, and payments
1N5406 IN5406 (10 pcs) 3A 600V Rectifier Diode – USA Ship
Product Details:

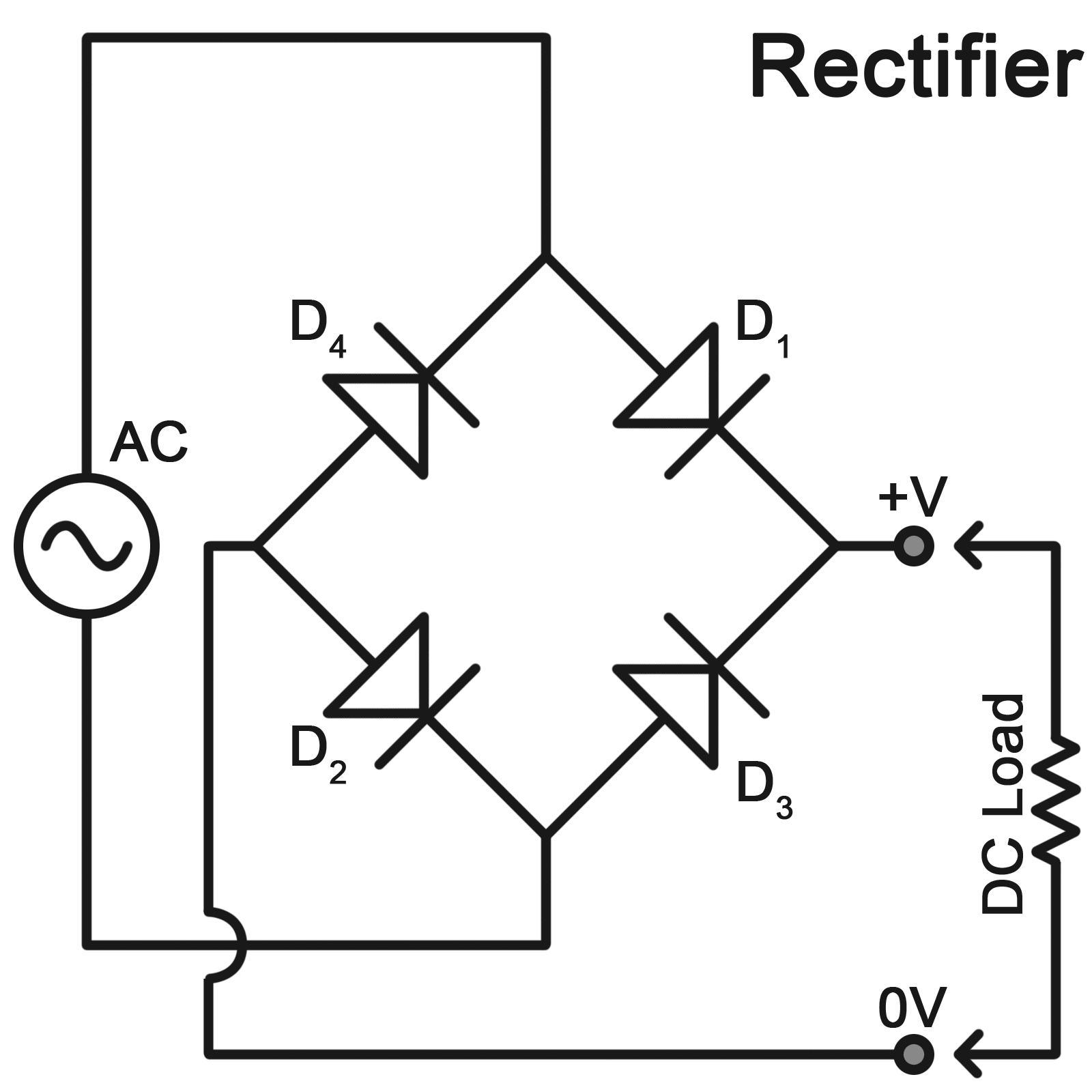

Enhance your electronic designs with the reliable 1N5406 Rectifier Diodes, suitable for a variety of power applications. These diodes provide efficient current rectification and are perfect for use in power supplies, transformers, and inverter circuits, ensuring stable and secure operations.
Specifications:
- ✅ Quantity: 10 Pieces
- ✅ Max Current: 3A
- ✅ Reverse Voltage: 600V
- ✅ Type: Silicon Rectifier Diode
- ✅ Temperature Range: -55°C to +150°C
- ✅ Application: Power rectification for power supplies, transformers, and more
Features & Benefits:
- ✔️ Efficient power rectification for smooth DC voltage output
- ✔️ Robust construction for reliable long-term use
- ✔️ High surge current capability to handle transients
- ✔️ Suitable for both commercial and industrial applications
- ✔️ Compact design for easy integration into circuits
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Generic |
|---|---|
| Reverse Leakage Current | 10uA |
| Polarity | Cathode Band |
| Case Material | Molded Plastic |
| Pin Count | 2 |
| Typical Application | General Purpose |
| Efficiency | N/A |
| Weight per Piece | 1.1g |
| Length | 9.5mm |
| Diameter | 5.3mm |
| Compliance | UL Certified |
| Country of Origin | USA |
| Diode Type | Standard Recovery Rectifier |
| Typical Thermal Resistance | 25°C/W |
| Part Number | 1N5406 |
| Maximum Surge Current | 200A |
| Lead Free Status | RoHS Compliant |
| Storage Temperature Range | -65°C to +175°C |
| Operating Temperature Range | -65°C to +150°C |
| Mounting Type | Through Hole |
| Package Type | DO-201AD |
| Junction Capacitance | 50pF |
| Reverse Recovery Time | 500ns |
| Maximum Forward Voltage | 1.2V |
| Peak Reverse Voltage | 600V |
| Average Forward Current | 3A |
| Quantity per Package | 10 pcs |
| Alternate Part Number | IN5406 |
| Insulation Material | Epoxy |
