100x 1N4007 Diode 1A 1000V Rectifier Diode DO-41 Fast IN4007 exp
Out of stock
Out of stock
100 Pcs 1N4007 Diode 1A
Discover the robust 1N4007 Rectifier Diode, engineered for efficiency and high performance. Perfectly designed for electrical engineers, this pack of 100 diodes is ideal for any project requiring reliable rectification.
- Voltage Rating: 1000V
- Current Rating: 1A
- Package Type: DO-41
- High Efficiency Rectification
- Ideal for Power Supply Applications
Equip your projects with the dependable 1N4007 Diodes, ensuring optimal performance in rectifying applications.
Shipping, returns, and payments
100 Pcs 1N4007 Diode 1A 1000V Rectifier Diode DO-41 Fast IN4007 | US SHIP
Product Details:
Optimize your electronic circuits with this pack of 100 high-performance 1N4007 diodes. Designed for rectification applications, these versatile diodes provide reliable and efficient protection by converting AC to DC. Ideal for power supplies, amplifiers, and voltage regulation, these diodes ensure robust performance under high voltage and current conditions.
Specifications:
- ✅ Quantity: 100 Pieces
- ✅ Maximum DC Blocking Voltage: 1000V
- ✅ Maximum Forward Current: 1A
- ✅ Package: DO-41
- ✅ Type: Silicon Epitaxial Planar Diode
- ✅ Reverse Recovery Time: Fast
- ✅ Application: AC to DC Rectification in power supplies and converters
Features & Benefits:
- ✔️ High voltage capability with 1000V rating
- ✔️ Efficient rectification with low forward voltage drop
- ✔️ Durable DO-41 package for reliable integration
- ✔️ Fast switching for enhanced performance
- ✔️ Perfect for industrial and consumer electronics applications
© 2025 Fahmah Jackson LLC. All Rights Reserved.
Specifications
| Brand | Unbranded |
|---|---|
| Reverse Recovery Conditions | IF = 0.5 A, IR = 1 A, IRR = 0.25 A |
| ESR | N/A |
| Country of Origin | China |
| Pb-Free | Yes |
| RoHS Compliant | Yes |
| Weight | 0.3 grams (approx) |

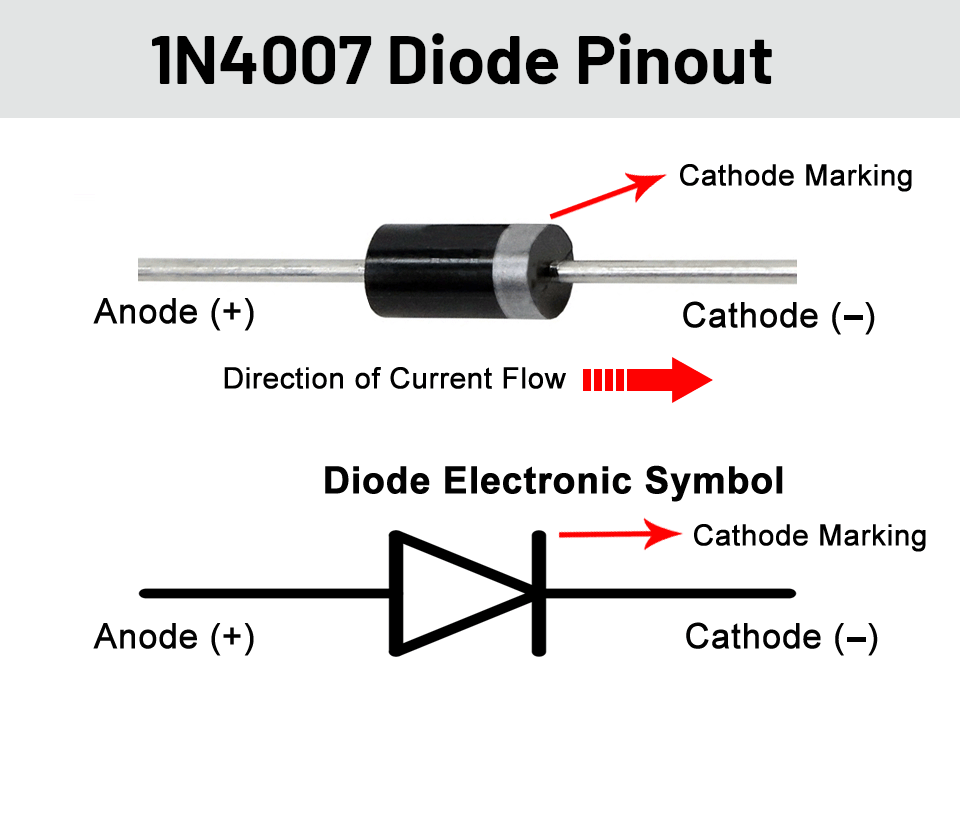

| Polarity | Cathode Band |
| Termination Style | Axial |
| Insulation Material | Plastic Molded |
| Construction | Silicon |
| Diode Type | Standard Recovery Rectifiers |
| Maximum Surge Current | 30 A |
| Junction Capacitance | 15 pF |
| Description | 100 Pcs 1N4007 Diode 1A 1000V Rectifier Diode DO-41 Fast IN4007, US SHIP |
| Maximum Reverse Voltage | 1000 V |
| Maximum DC Blocking Voltage | 1000 V |
| Maximum RMS Voltage | 700 V |
| Maximum Average Forward Rectified Current | 1 A |
| Mounting Type | Through Hole |
| Operating Temperature Range | -65°C to +175°C |
| Reverse Current at Rated Voltage | 5 µA |
| Non-Repetitive Peak Forward Surge Current | 30 A |
| Forward Voltage Drop | 1.1 V at 1 A |
| Reverse Recovery Time | 30 µs |
| Peak Repetitive Reverse Voltage | 1000 V |
| Average Rectified Current | 1 A |
| Package Type | DO-41 |
| Part Number | 1N4007 |
| Maximum Reverse Leakage Current | 5 µA at 25°C |
