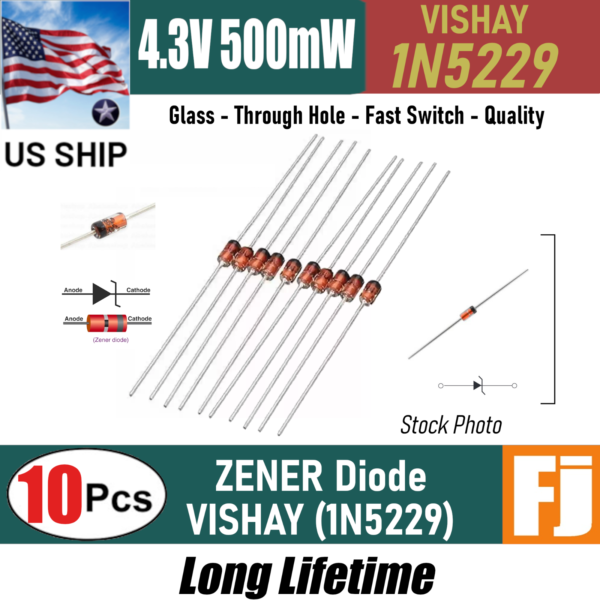

10 PCS VISHAY 1N5229B Zener Diode | IN5229B | 4.3 V, 500 mW, DO-35 | US Ship

Availability:

1 in stock


1 in stock

US $4.30

Quantity:
1 Available

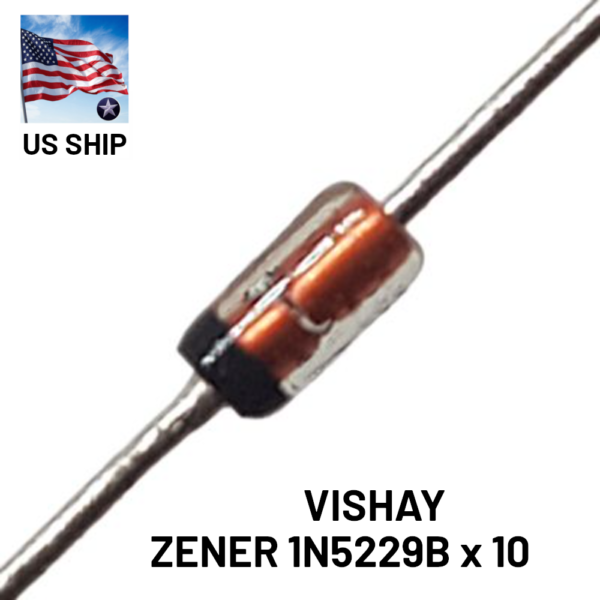

10 PCS Vishay 1N5229B Zener Diodes

Introducing the Vishay 1N5229B Zener Diode, perfect for precise voltage regulation needs in electronic circuits. Made with high-quality materials, these diodes ensure reliable performance and efficiency.

  • Voltage: 4.3 V
  • Power: 500 mW
  • Current: 20 mA
  • Package Type: DO-35
  • Efficiency: Highly suitable for power regulation in compact circuits

Enhance the stability and efficiency of your electronic designs by adding the Vishay 1N5229B Zener Diodes to your toolbox today!

Shipping:
Estimated Delivery: Ships on Mon, Oct 6, Delivery Estimated between Mon, Oct 13 and Thu, Oct 16 to 94804

Item Specifics

Brand:Unbranded
Weight:0.15 g
Climate Resistance:Class II
Surge Current:2 A
Epitaxial Planar Die Construction:Yes
Forward Voltage:1.1 V at IF=200 mA
Environmental Protection:Moisture Sensitivity Level 1
Terminal Finish:Matte Tin
Typical Application:Voltage Regulation
RoHS Status:RoHS Compliant
Lead Free Status:Lead Free
Mounting Style:Through Hole
Case Material:Molded Plastic
Storage Temperature Range:-65°C to +200°C
Operating Temperature Range:-65°C to +200°C
Package Diameter:2.4 mm
Product:10 PCS VISHAY 1N5229B Zener Diode
Package Height:1.91 mm
Zener Impedance:23 Ohm
Maximum Regulator Current:90 mA
Maximum Reverse Leakage Current:5 µA
Maximum Zener Current:113 mA
Zener Voltage Tolerance:±5%
Configuration:Single
Manufacturer:Vishay
Upgrade Shipping:Purchase $25 or more get free USPS G/A shipping Upgrade
Shipping:Economy (USPS First Class Envelope unless upgraded)
Package:DO-35
Power Dissipation:500 mW
Nominal Zener Voltage:4.3 V
Model Number:1N5229B
Electronic Category:Discrete Semiconductor Products

10 PCS VISHAY 1N5229B Zener Diode | IN5229B | 4.3 V, 500 mW, DO-35 | US Ship

Product Details:

Enhance your electronic designs with the VISHAY 1N5229B Zener Diode, delivering reliable voltage regulation. This diode is ideal for a wide range of applications within electronic circuits, including voltage stabilization and overvoltage protection for sensitive components.

Specifications:

  • ✅ Quantity: 10 Pieces
  • ✅ Zener Voltage: 4.3V
  • ✅ Power Dissipation: 500 mW
  • ✅ Package Type: DO-35
  • ✅ Type: Zener Diode
  • ✅ Maximum Operating Temperature: +200°C
  • ✅ Application: Voltage regulation, overvoltage protection, and waveform clippers

Features & Benefits:

  • ✔️ Ensures precise voltage regulation for optimal circuit performance
  • ✔️ Compact DO-35 casing for easy PCB implementation
  • ✔️ Robust 500 mW power rating for enhanced reliability
  • ✔️ Suitable for high-temperature applications with a max operating temp of +200°C
  • ✔️ Perfect for power supplies, voltage references, and various electronic applications
