10 Pcs FR104 Silicon Diode | Schottky Fast Rectifier Diode | D0-41
2 in stock
2 in stock
FR104 Fast Rectifier Diode
Optimize your circuit designs with our FR104 Silicon Diodes, ideal for efficient and reliable rectification in diverse electronic applications.
- Reverse Voltage: 400V
- Forward Current: 1A
- Package Type: DO-41
- Fast Recovery Time
- Schottky Efficiency
Perfect for power supplies, these diodes ensure dependable performance and superior thermal management. Enhance the efficiency of your electrical projects with FR104 diodes today!
Shipping, returns, and payments
10 Pcs FR104 Silicon Diode | Schottky Fast Rectifier Diode | D0-41 | US Ship
Product Details:
Optimize your electronic projects with these high-performance FR104 Silicon Diodes, engineered for rapid switching and efficient rectification. Known for their Schottky barrier properties, these diodes are ideal for applications requiring fast and reliable performance, such as power supply circuits and high-frequency rectification.
Specifications:
- ✅ Quantity: 10 Pieces
- ✅ Type: Schottky Fast Rectifier Diode
- ✅ Package: D0-41
- ✅ Maximum Reverse Voltage: 400V
- ✅ Forward Current: 1A
- ✅ Reverse Recovery Time: < 500ns
- ✅ Operating Temperature: -65°C to +150°C
Features & Benefits:
- ✔️ Excellent performance in high-frequency rectification
- ✔️ Low forward voltage drop ensures energy efficiency
- ✔️ High surge current capability enhances reliability
- ✔️ Compact D0-41 package for versatile integration
- ✔️ Ideal for power supplies, inverters, and industrial electronics
© 2025 Fahmah Jackson LLC. All Rights Reserved.

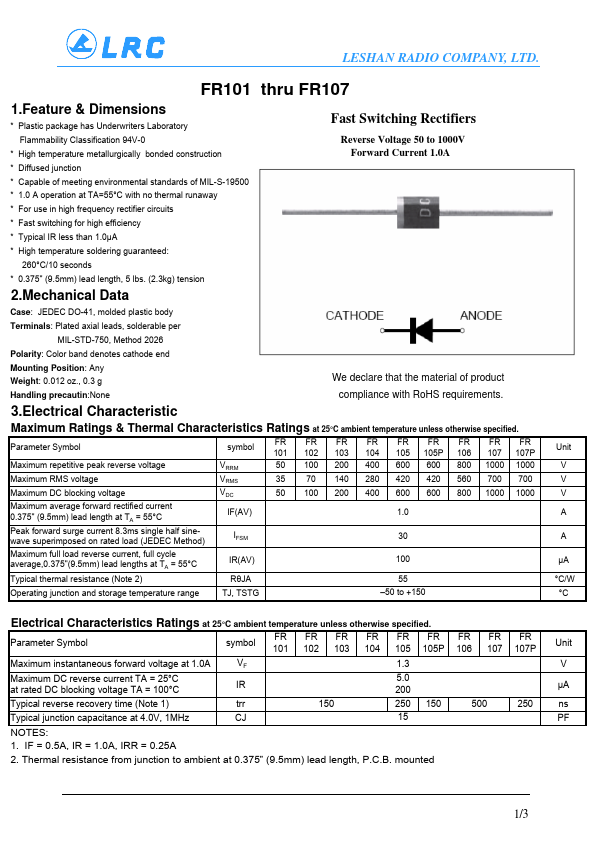

Specifications
| Brand | Generic |
|---|---|
| Lead Material | Tinned Copper |
| Maximum Reverse Recovery Time | 500 ns |
| RoHS Compliant | Yes |
| Polarity | Standard |
| Sealing | Non-Sealed |
| Construction | Axial |
| Weight | 0.33 g |
| Typical Thermal Resistance | 62.5°C/W |
| Capacitance | 15 pF |
| Maximum Junction Temperature (Tj) | 150°C |
| Reverse Leakage Current (Ir) | 5 µA |
| Encapsulation | Epoxy |
| Manufacturer | China |
| Part Number | FR104 |
| Additional Feature | High Efficiency |
| Mounting Type | Through Hole |
| Storage Temperature Range | -55°C to +150°C |
| Operating Temperature Range | -55°C to +150°C |
| Reverse Recovery Time (trr) | 500 ns |
| Peak Forward Surge Current (Ifsm) | 30 A |
| Average Rectified Current (Io) | 1 A |
| Maximum Repetitive Reverse Voltage (Vrrm) | 400 V |
| Forward Voltage Drop | 1.3 V |
| Package Type | DO-41 |
| Rectifier Type | Schottky Fast Rectifier |
| Diode Type | Silicon Diode |
| Quantity | 10 Pcs |
| RoHS Status | Compliant |
